Farr HD8625 - Illustration 6.A.5: Turn Counter Encoder Mount Exploded

6.4
hD8625 8-
5
/
8
” 35K Tong
Technical Manual

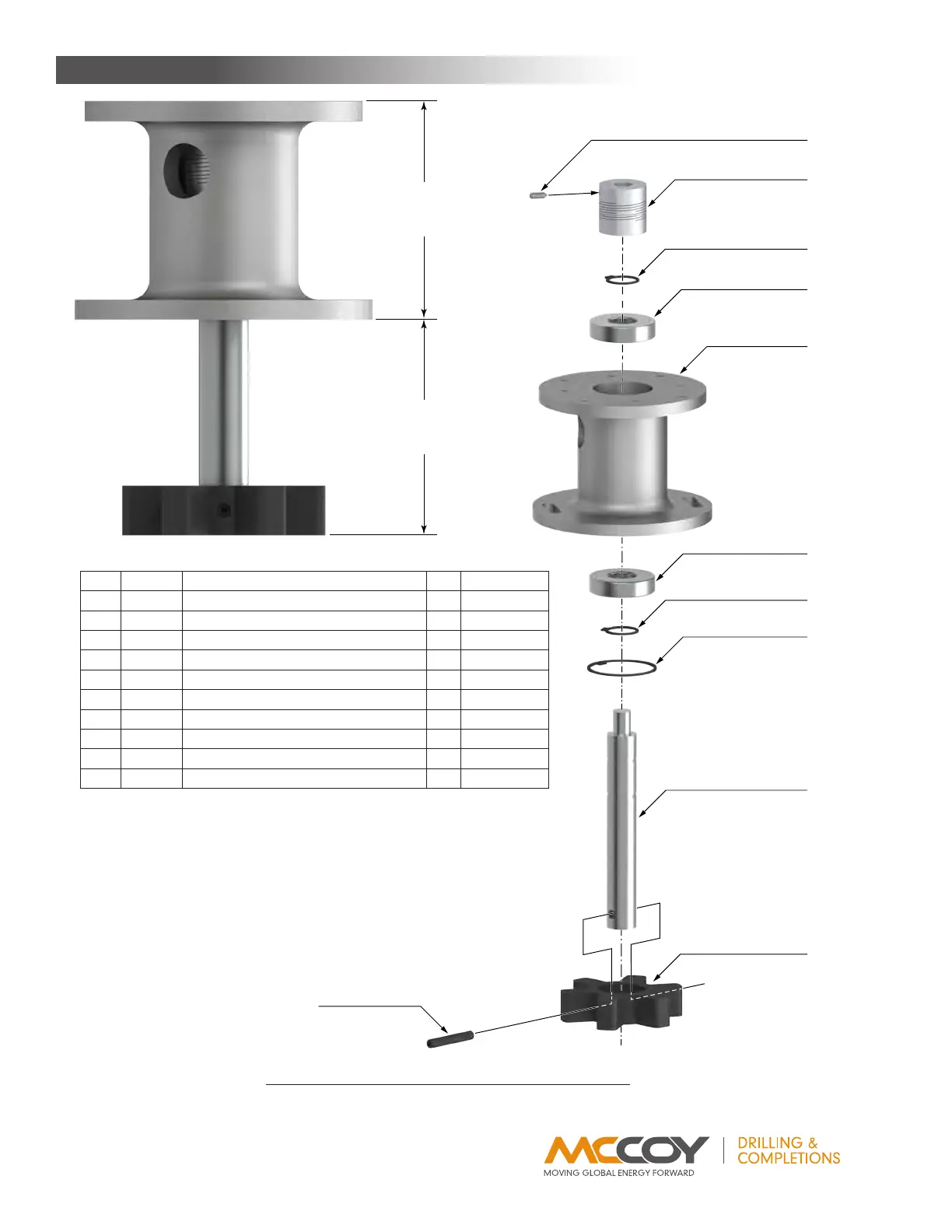

IllustratIon 6.a.5: turn Counter enCoDer mount exPloDeD
Torque MeasureMenT
2.74”
2.75”
J
A
B
C
D
E
D
C
F
G
H
Item Type Description Qty Part Number
Assembly Standard Turn Counter Encoder Mount 1 60-0001
A Part 6-32 x 3/8” Hex Socket Head Set Screw 4
B Part Helical Flexible Encoder Shaft Coupling 1 60-0130N
C Part Internal Retainer Ring 2 1376-13
D Part Bearing 2 1376-05
E Part Encoder Housing 1 1392-104A
F Part Internal Retainer Ring 1 02-0436
G Part Encoder Shaft 1 1392-103A-01
H Part Encoder Gear 1 01-0320A-M
J Part 10-24 x 1-1/4” Hex Socket Head Set Screw 1
