Farr HD8625 - Page 119

Technical Manual
hD8625 8-
5
/
8
” 35K Tong
6.3

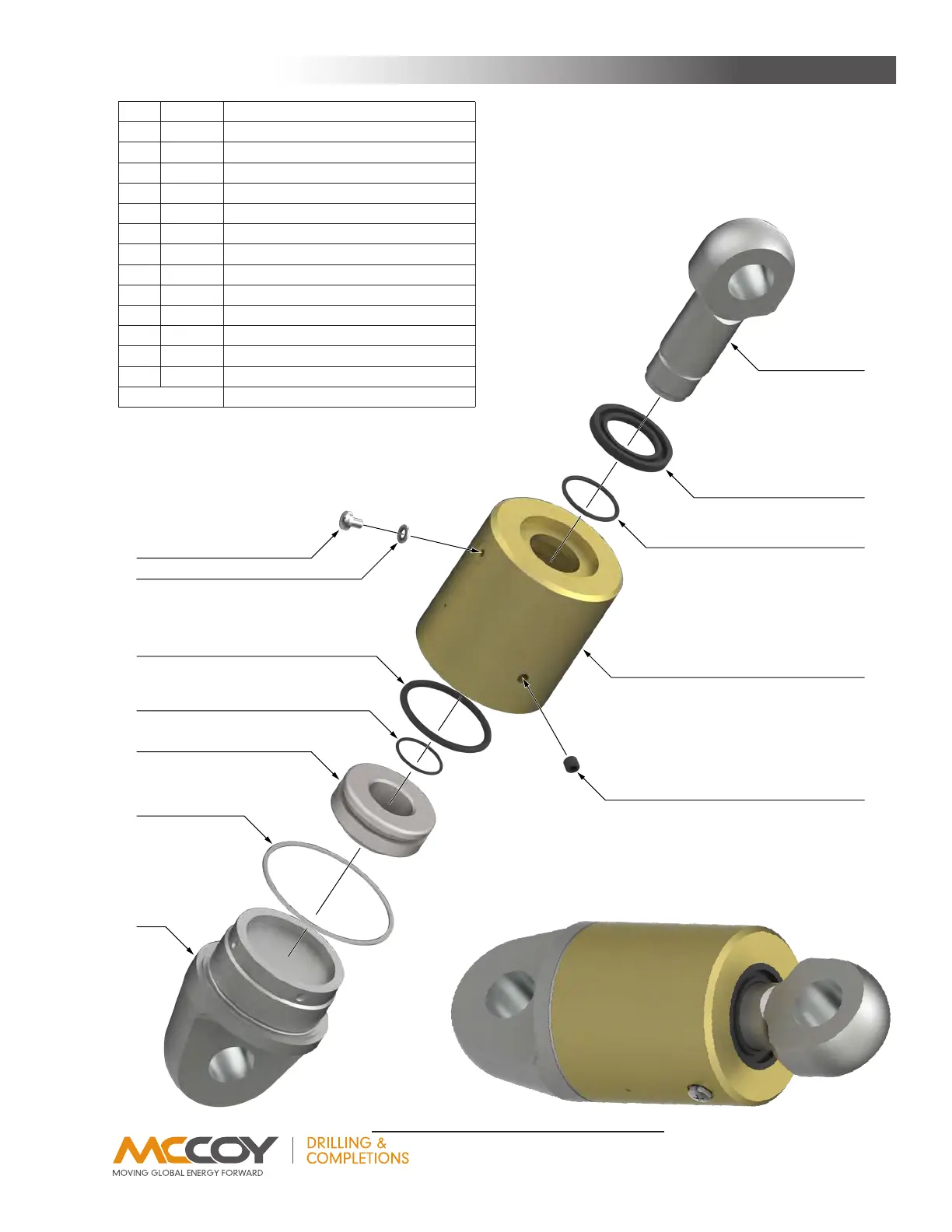

IllustratIon 6.a.4: tensIon loaD Cell exPloDeD
Torque MeasureMenT
This is the standard tension load cell supplied by McCoy
Drilling & Completions | Farr. Contact our sales depart-
ment for information about optional application-
specific tension load cells.
A
B
C
D
E
F
G
HH
J
K
L
M
Item Type Description
Assembly Tension Load Cell, 4.08 in
2
A Part 1/4” NC x 1/2” Binding Head Machine Screw
B Part Stat-O-Seal
C Part O-Ring
D Part O-Ring
E Part Load Cell Piston
F Part Flange Gasket
G Part Load Cell End
H Part Load Cell Rod
J Part Wiper
K Part O-Ring
L Part Load Cell Body
M Part 3/8” NC x 3/8” Cup Point Hex Set Screw
Seal Kit Replacement Seal Kit 4.08 in
2
Tension Load Cell
