MainTenance
3. Rotary Idlers
Applygreasetotherotaryidlerbearingsthroughthegreasefittingsrecessedintothetopofeachshaftonthetopofthetong(two
locationstotal).
4. Pinion Idler
Applygreasetothepinionidlerbearingthroughthegreasefittingrecessedintothetopofthehalf-shaft,locatedonthetopfaceof
thetongunderthevalvebank(onelocationonly).

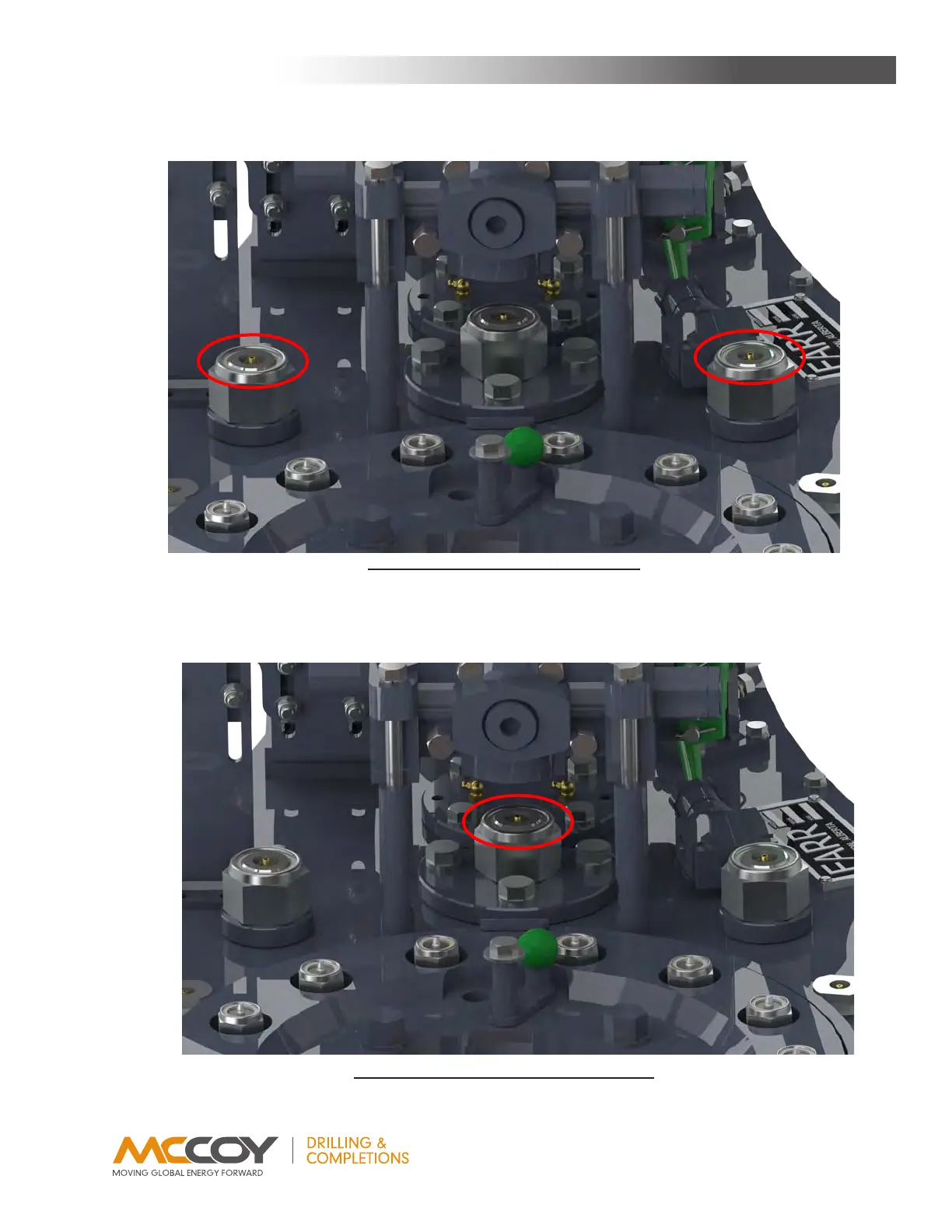

IllustratIon 3.D.4: PInIon IDler luBrICatIon PoInt
IllustratIon 3.D.3: rotary IDler luBrICatIon
