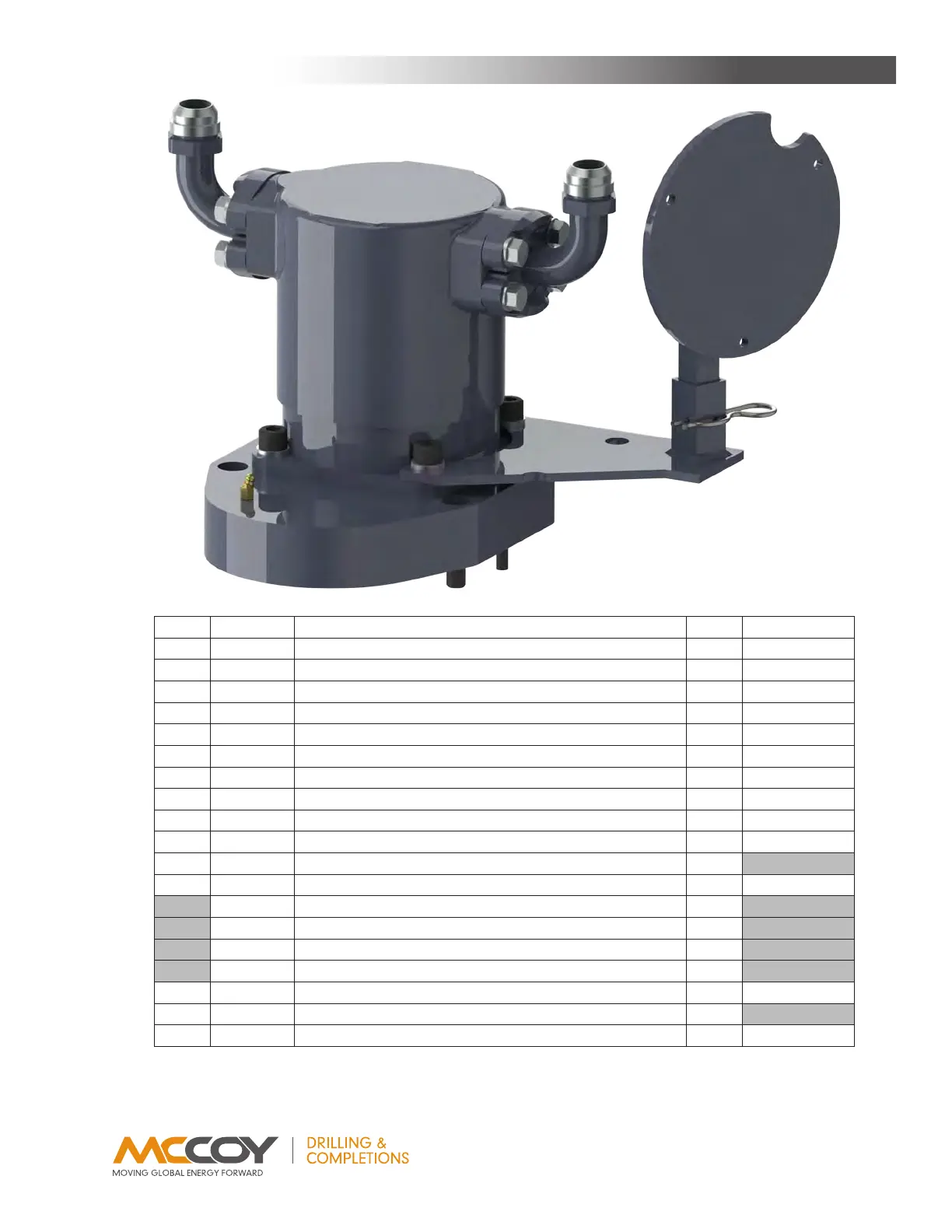

Farr HD8625 - Page 107

Technical Manual
hD8625 8-
5
/
8
” 35K Tong
5.25
Item Type Description Qty Part Number
A Weldment
TorqueGaugeMountWeldment 1 1500-09-03A
B Part
1/2”NCx1-1/4”HexSocketHeadCapScrew 2 09-2168
C Part
1/2”NCx1HexSocketHeadCapScrew 2
D Part
1/2”LockWasher 4 09-5110
E Part
Two-SpeedHydraulicMotor 1 87-0007
F Part
MotorGear 1 997-A10-149
G Part
3/8”NCx3/8”HexSocketSetScrew 2 09-0106
H Part
1/2”NCx1-1/2”HexSocketHeadCapScrew 4 09-
J Part
1/8”NPT90DEGGreaseFitting 1 02-0093
K Part
#20(1-1/4”)/JIC1”FlangeElbow 2 02-9216
L Part
0.148”x2.938”HitchPin 1
M Part
#20(1-1/4”)SplitFlangeKit 2 02-9217
Part O-Ring 1
Part
#20(1-1/4”)SplitFlange 2
Part
7/16”LockWasher 4
Part
7/16”NCx1-1/2”HexBolt 4
N Weldment
TorqueGaugeHolderWeldment 1 1500-09-04A
P Part
5/16”x5/16”x2”SquareGearKey 1
Q Part
MotorMount 1 1064-C8-150
MoTor & MoTor MounT
