Farr HD8625 - Page 111

Technical Manual
hD8625 8-
5
/
8
” 35K Tong
5.29

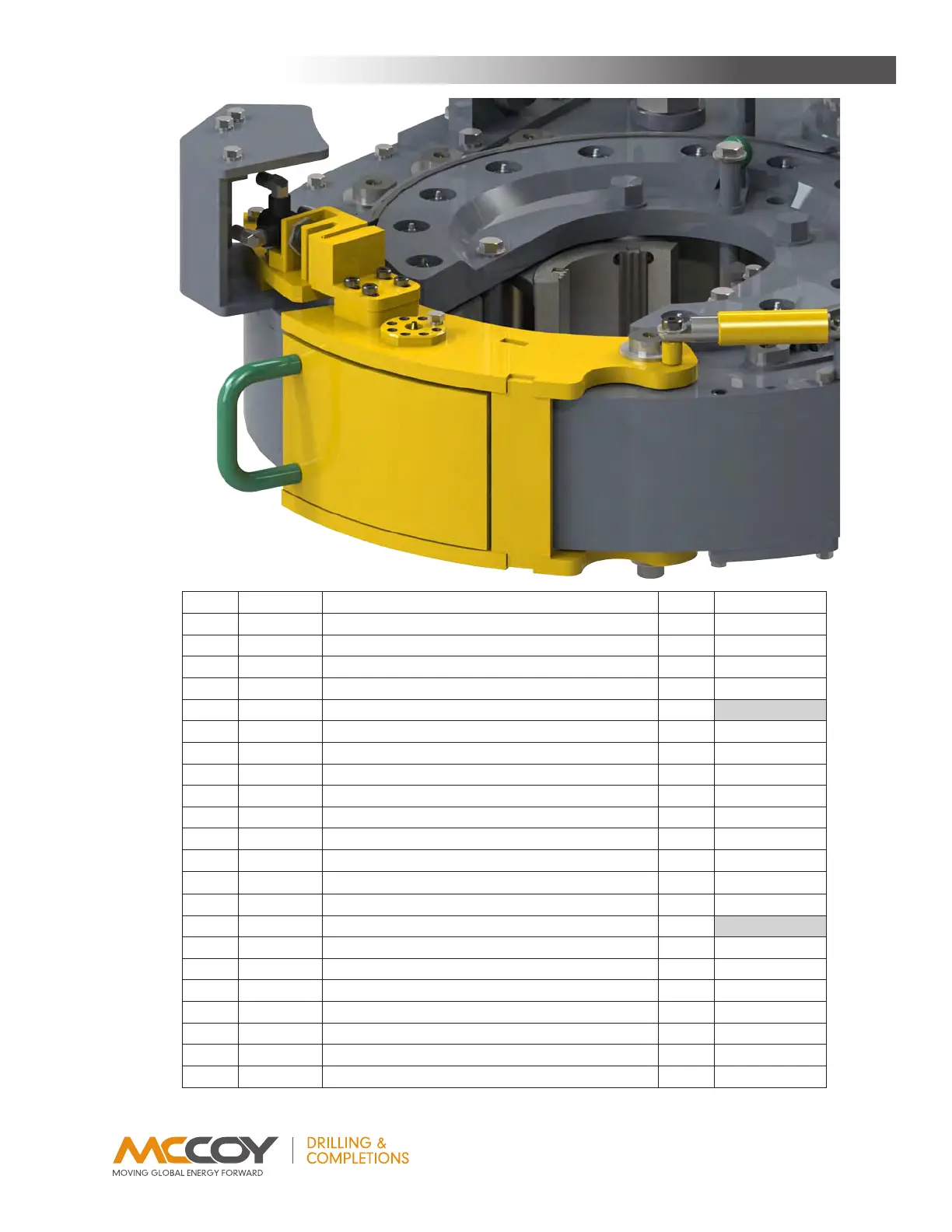

Door asseMbly
Item Type Description Qty Part Number
A Part
3/8”UNCx3/4”HexBolt 4 09-1044
B Part
3/8”CarbonSteelLockWasher 4 09-5106
C Part
1/8”NPTGreaseFitting 1 02-0005
D Part
AdjustmentCam 1 1037-A-14
E Assembly
SafetyDoorLatchBlockAssembly(Pp.5.30-5.31) 1
F Weldment
DoorWeldment 1 1050-C4-10
G Part
1/2”LockWasher 1 09-5110
H Part
1/2”UNCHexNut 1 09-9124
J Part
1/2”x1-3/4”HexBolt 1 09-2172
K Weldment
DoorLatchWeldment 1 1050-15
L Part
LatchSpring 2 997-16
M Part
SwitchGuardTopPlate 1 101-1474
N Part
DoorPivotSupportRollerShaft 1 101-3940
P Part
1/2”x1/2”HexSocketShoulderBoltUNC 2 02-0973
Q Assembly
SafetyDoorLatchSwitchAssembly(Pp.5.30-5.31) 1
R Part
1/2”NarrowFlatWasher 2 09-5119
S Assembly
DoorCylinder 1 101-0069
T Part
11/8”NarrowWasher(DoorPivotRoller) 1 02-0471
U Part
ShoulderBushing 2 101-0110
V Part
DoorCylinderMountingLug 1 1050-12-001
W Part
1”NarrowWasher(DoorPivotRoller) 1 09-5120
X Part
1”UNSThinNylockNut(DoorPivotRoller) 1 09-9167
