Farr HD8625 - Page 113

Technical Manual
hD8625 8-
5
/
8
” 35K Tong
5.31

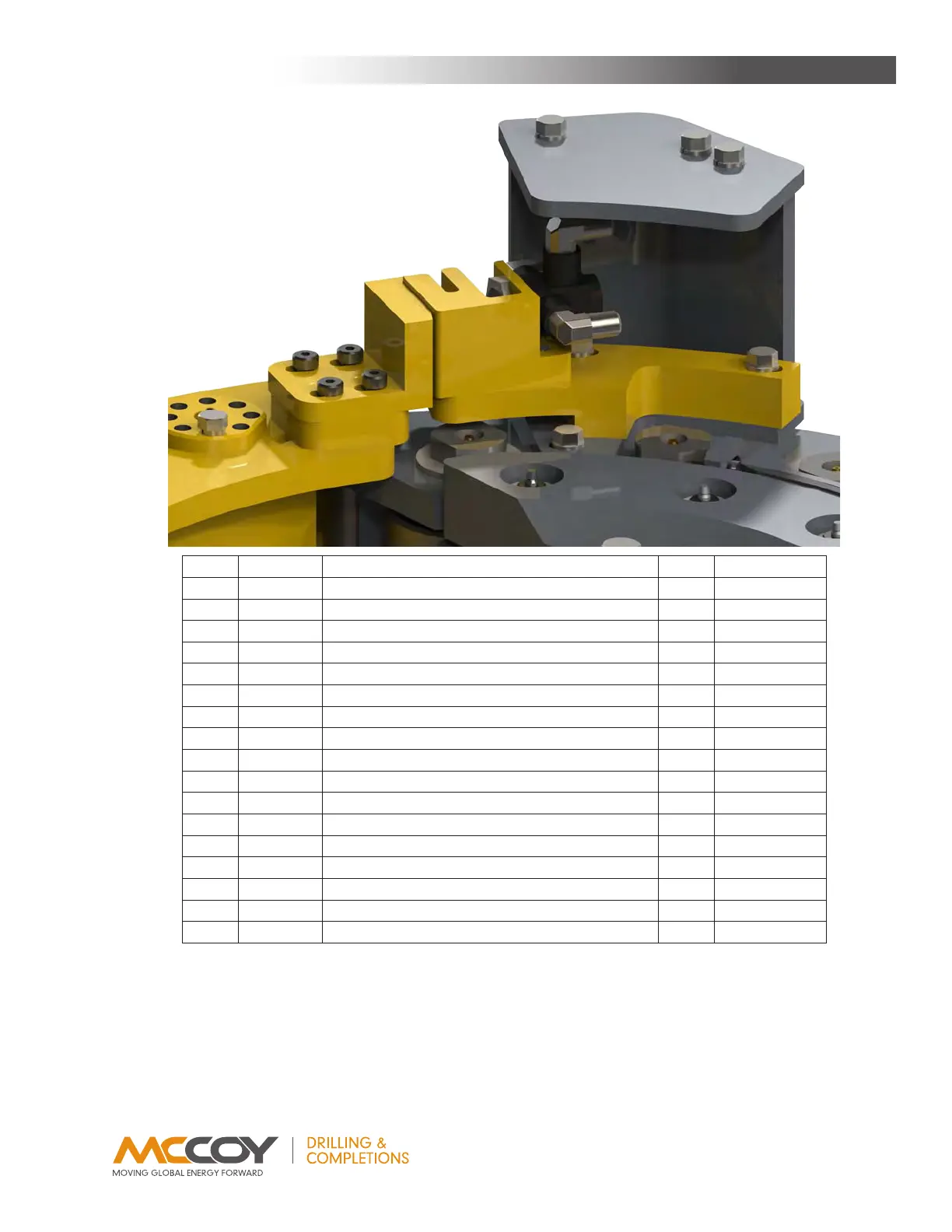

SafETy DOOR OPTION
Item Type Description Qty Part Number
A Part
3/8”x1/2”ShoulderBolt,UNC 4 09- 0125
B Part
SafetyDoorLatchBlock 1 101-1104
C Part
15/16”ValveLockNut 1 09-0278
D Part
SafetyDoorLatchBlock 1 101-1103
E Part
3/8”UNCx1”HexSocketHeadCapScrew 2 09-1738
F Part
SafetyDoorLatchSpacer 1 101-1411
G Part
3/8”UNCx1-1/2”HexBolt 1 09-1553
H Part
3/8”CarbonSteelLockWasher 6 09-5106
J Part
SafetyDoorLatchPlate 1 101-1410
K Part
3/8”UNCx1”HexSocketFlatCountersunkCapScrew 3 09-4046
L Part
3/8”UNCx3/4”HexBolt 4 09-1044
M Part
SwitchGuardTopPlate 1 101-1474
N Part
1/4”NPT-JIC90degreeelbow2024-4-4 3 08-0284
P Part
SafetyDoorSwitch 1 08-0337M
Q Part
LoadPlunger 1 AE12-306
R Part
3/8”UNCx3”HexBolt 2 09-1058
S Weldment
SafetyDoorSwitchGuardWeldment 1 101-1475
