Farr HD8625 - Page 115

Technical Manual
hD8625 8-
5
/
8
” 35K Tong
5.33
Item Type Description Qty Part Number
A Part
LiftingLink 1 02-0516
B Part
RigidSlingAdjustmentHelix 1 1053-1-H
C Part
3/4”NCx9”HexBolt 1 09-1322
D Weldment
RigidSlingWeldment 1 101-0112
E Part
1/2”NCHexJamNut 2 09-5810
F Part
1/2”NCx1-3/4”HexBolt 2 09-1172
G Part
3/8”NCx2”HexBolt 4 09-1046
H Part
3/8”HelicalLockWasher 4 09-5106
J Weldment
LHRigidSlingBracket 1 101-0113
Weldment
RHRigidSlingBracket 1 101-0115
K Weldment
LevelAdjustmentBolt 2 1053-C-1L
L Part
3/4”UNCHexNut 2 09-5818
M Part
RigidSlingPin 2 1053-C-1C
N Part
3/4”NCNylockNut 1 1429-39-02
P Part
3/16”HitchPin 4 02-0028
Q Part
1/2”UNCx1-1/2”HexBolt 4 09-1170
R Part
1/2”LockWasher 4 09-5110

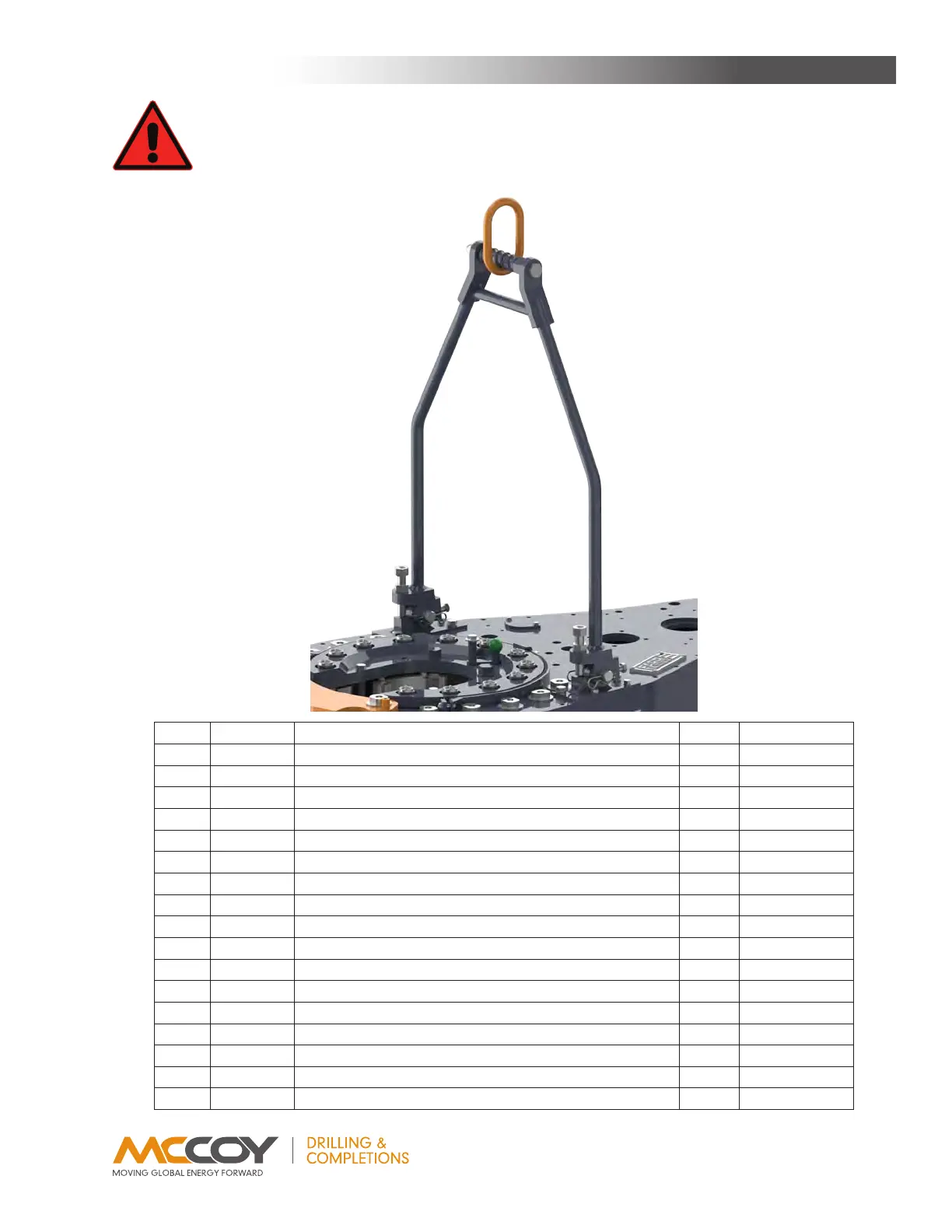

rigiD sling asseMbly
SEE PaGE 3.11
ALL FASTENERS USED TO ASSEMBLE LOAD-BEARING COMPONENTS (CHAIN SLINGS, RIGID
SLINGS, BACKUP LEGS) MUST BE TIGHTENED TO THE CORRECT TORQUE.
