Technical Manual
hD8625 8-
5
/
8
” 35K Tong
7.11
hyDraulic coMponenTs
WARNING: RINEER RECOMMENDS FOLLOWING ALL STANDARD SHOP SAFETY PRACTICES SPECIFICALLY INCLUDING WEARING OF EYE PROTECTION.
9
10
11
12
13
14
15
16

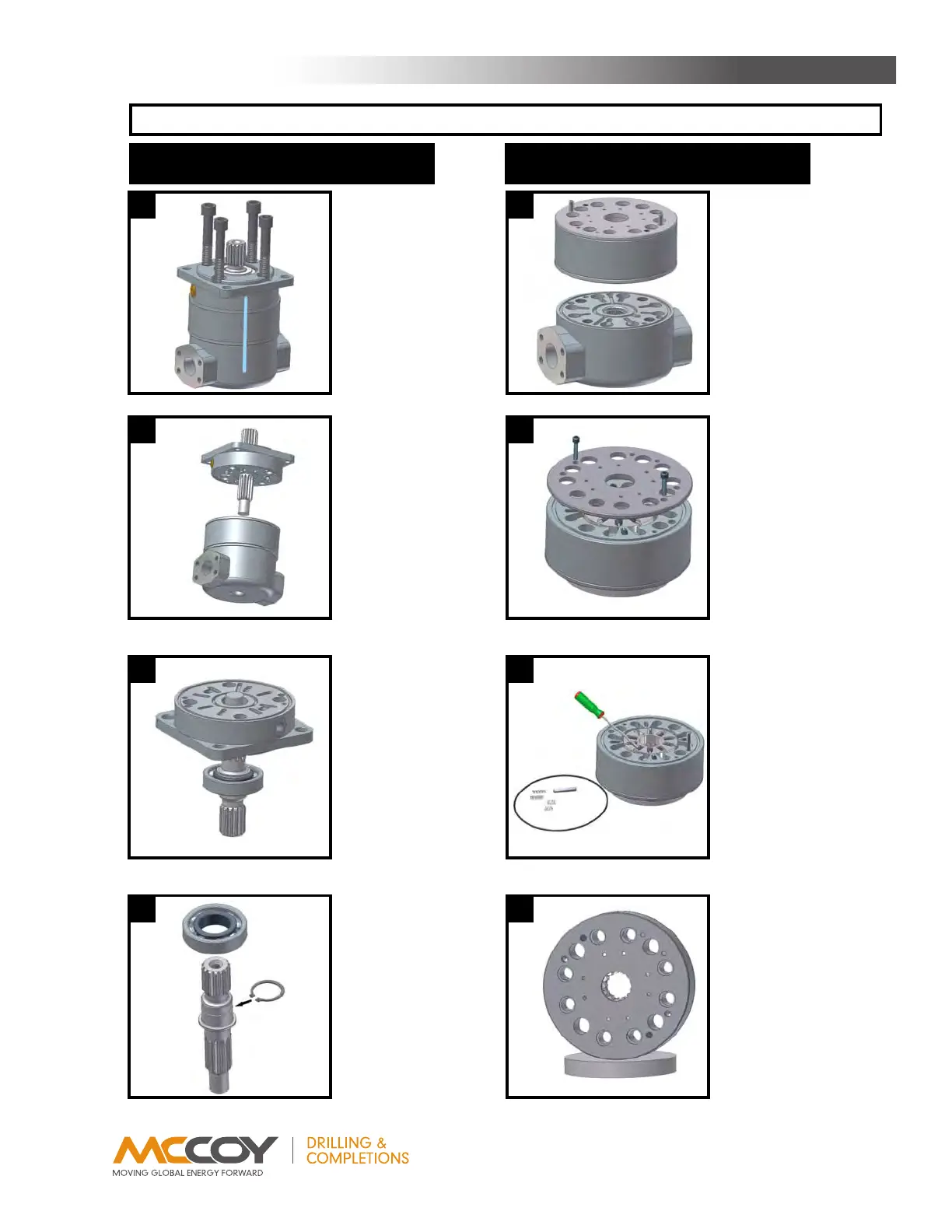

1) Remove front housing
2) Note: Two 5/16" ball
checks and one main body
o-ring may be dislodged
and fall free.
1) Mark one side of the
motor for proper assembly,
paying careful attention
that the cartridge will not
be installed upside down.
2) Secure the motor prior
to loosening the 5/8-11
bolts.
With the seal plate removed,
press shaft and ball bearing
out of front housing.
1) Remove snap ring from
shaft.
2) Press shaft out of
bearing.
1) Replace plate on
rotor/stator cartridge.
2) Turn rotor/stator
cartridge over.
3) Repeat steps 14 & 15.
1) Remove o-ring and
springs with a small
screwdriver.
2) Remove dowels pins.
1) Place cartridge on any
object which will hold it off
the table.
2) Remove two each 10-32
place screws.
3) Remove timing plate.
Lift up rotor/stator cartridge
and remove from the rear
housing.
DISASSEMBLY OF FRONT
HOUSING AND SHAFT
DISASSEMBLY OF ROTOR/STATOR
CARTRIDGE
