Farr HD8625 - Page 85

Technical Manual
hD8625 8-
5
/
8
” 35K Tong
5.3
ITEM TYPE DESCRIPTION QTY PART NUMBER
A Part
HydraulicMotor 1 87-0007
B Assembly
ClutchAssembly(SeePp.5.14-5.15) 1
C Assembly
PinionAssembly(SeePp.5.12-5.13) 1
D Assembly
RotaryIdlerAssembly(SeePp.5.8-5.9) 2
E Assembly
SupportRollerAssembly(SeePp.5.4-5.5) 11
F Part
RotaryGear 1 1172-D1-HT
G Assembly
CamFollowerAssembly(SeePp.5.18-5.19) 24
H Assembly
DoorPivotRollerAssembly(SeePp.5.6-5.7) 1
J Assembly
ShifterAssembly(SeePp.5.16-5.17) 1
K Assembly
PinionIdlerAssembly(SeePp.5.10-5.11) 1
L Part
MotorGear 1 997-A10-149

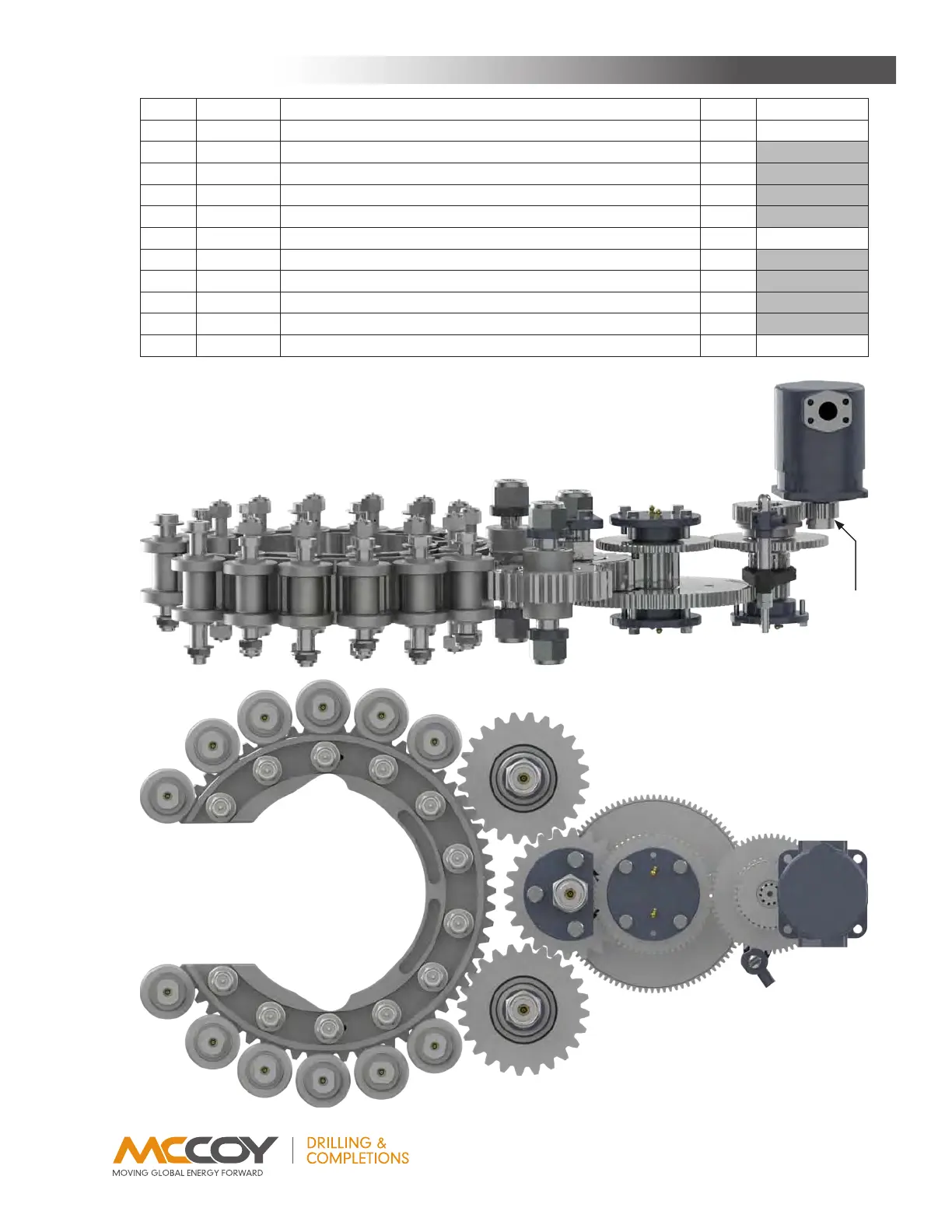

gear Train layouT
L
