Farr HD8625 - Page 91

Technical Manual
hD8625 8-
5
/
8
” 35K Tong
5.9

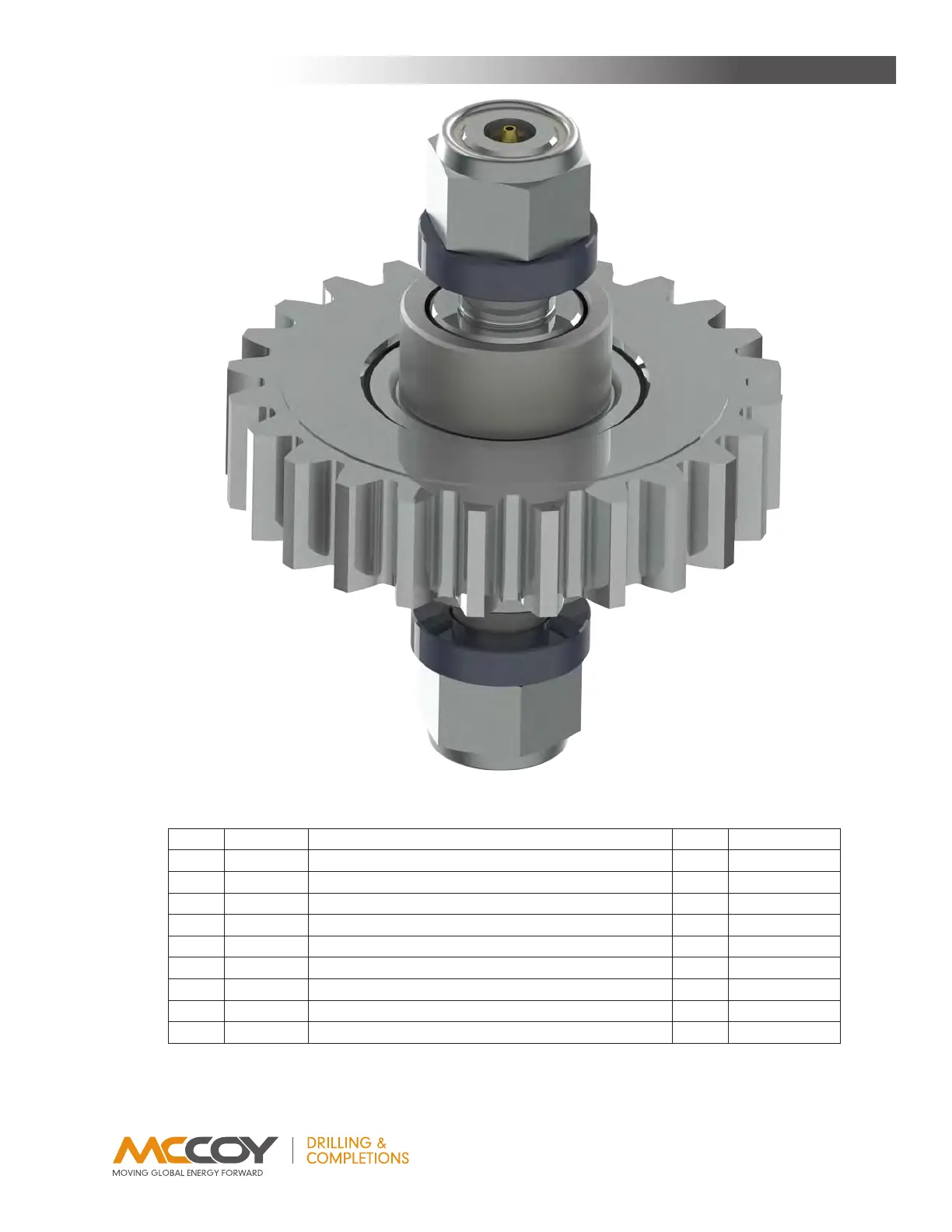

roTary iDler asseMbly
Item Type Description Qty Part Number
A Part
1/8”NPTGreaseFitting 1 02-0005
B Part
1-1/4”UNFHexNylockNut 2 09-5740
C Part
IdlerPad 2 997-D20-125
D Part
RotaryIdlerSpacer 2 1050-D5-121
E Part
RotaryIdlerShaft 1 1050-D5-117
F Part
BearingSeal 2 02-0010
G Part
RetainingRing 2 02-0009
H Part Bearing 1 02-0075
J Part
RotaryIdlerGear 1 997-A2-119C
