Farr HD8625 - Page 97

Technical Manual
hD8625 8-
5
/
8
” 35K Tong
5.15

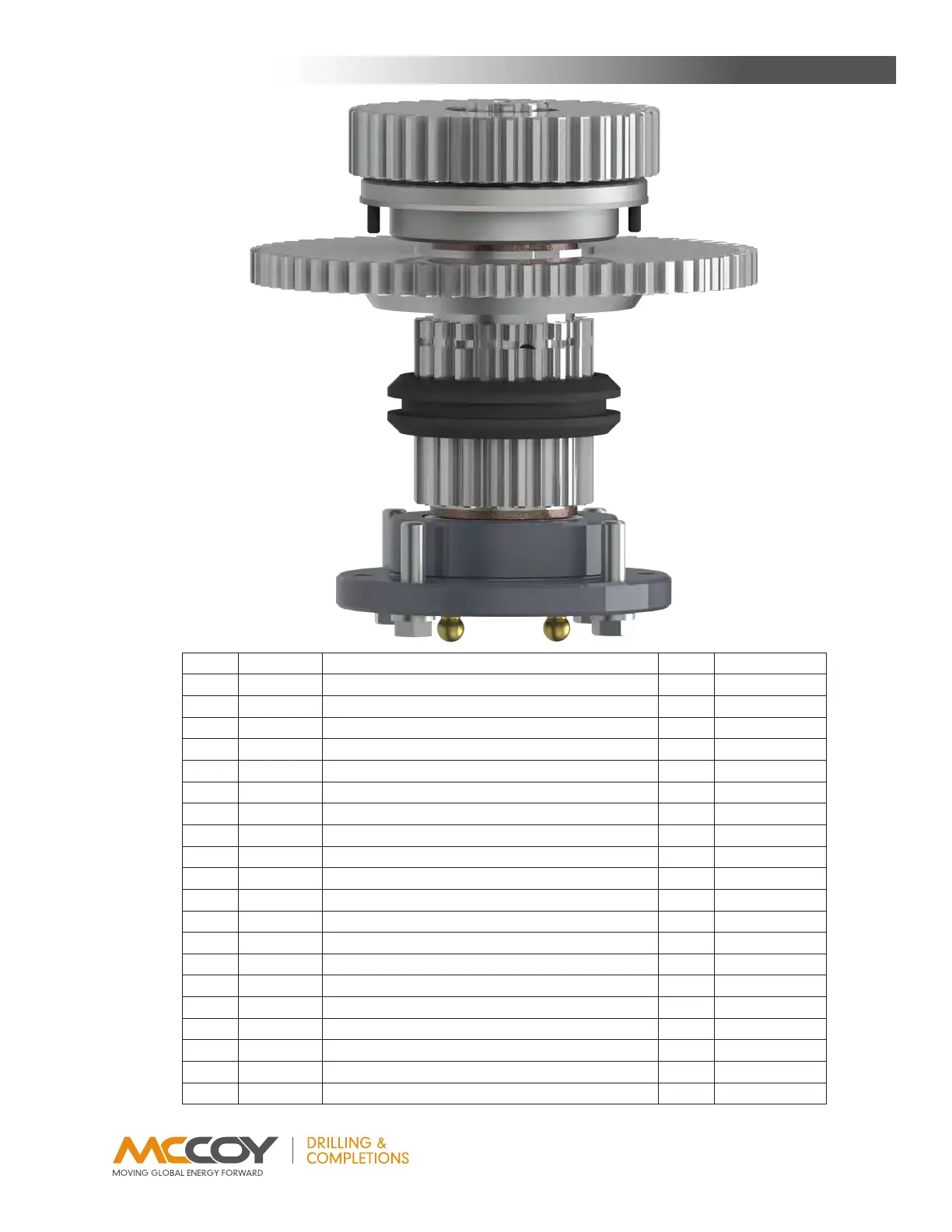

cluTch asseMbly
Item Type Description Qty Part Number
A Part
OutsideSnapRing 1 1234-00-04
B Part
DriveGear 1 997-HT-61
C Part
#10-24x3/4”HexSHCS 2 09-0001
D Part
TopClutchBearingSpacer 1 997-HT-60
E Part
TopClutchSpacer 1 101-3599
F Part
TopClutchBearing 1 02-1403
G Part
TopBearingRetainer 1 997-HT-59
H Part
BearingRetainerSpacer 1 101-5312
J Part
HighClutchGear 1 997-HT-51B
K Part
NeedleRollerBearing 4 02-1404
L Part
ShiftingCollar 1 997-HT-62
M Part
SplinedClutchShaft 1 997-HT-50
N Part
LowClutchGear 1 997-HT-52
P Part
BottomClutchSpacer 1 997-99
Q Part
BottomClutchBearing 1 02-0014
R Part
ClutchBearingCap 1 101-0120
S Part
3/8”LockWasher 4 09-5106
T Part
3/8”NCx1-1/4”HexBolt 4 09-1048
U Part
1/8”NPT90Deg.GreaseFitting 2 02-0093
V Part
1/8”NPTGreaseFitting 1 02-0005
