Farr HD8625 - Page 99

Technical Manual
hD8625 8-
5
/
8
” 35K Tong
5.17

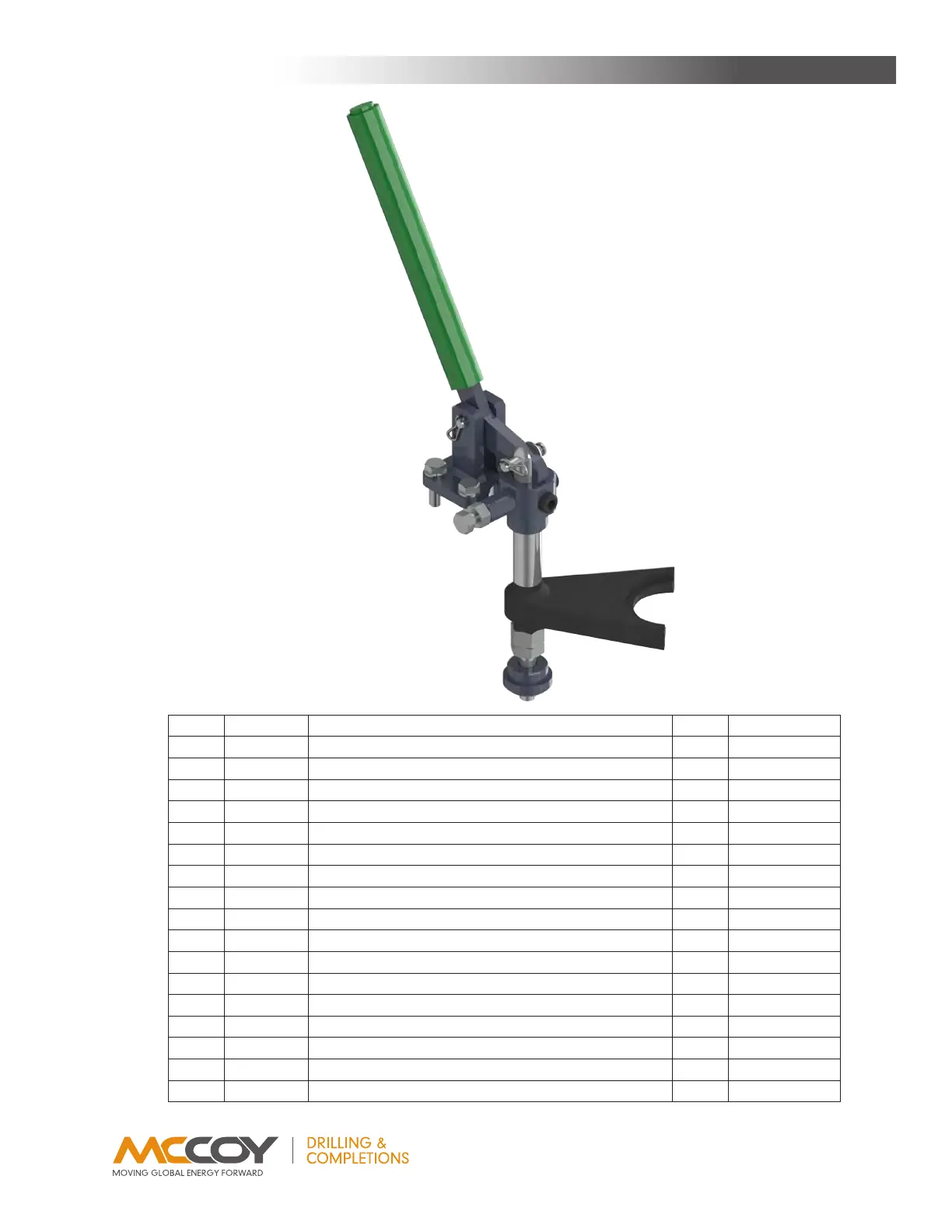

shifTer asseMbly
Item Type Description Qty Part Number
A Weldment
ShiftingHandleWeldment 1 1037-D-20B
B Part
HITCHPIN.0930X1.125 2 02-0274
C Part
DetentBall 1 02-0018
D Part
7/16”UNFx1-1/4”HexBolt 1 09-1608
E Part
7/16”UNFHexJamNut 1 09-5508
F Part
DetentSpring 1 997-0-64
G Part
5/8”UNCx5/8”HexSocketSetScrew 3 09-2011
H Part
ShiftingShaft 1 101-2816
J Weldment
ShiftingForkWeldment 1 997-HT-72
K Part
5/8”UNFHexNut 1 09-5914
L Part
5/8”UNFHexJamNut 1 09-5915
M Part
LowerShifterBushing(typicallyweldedtobottomplate) 1 1064-B1-95
N Part
3/8”UNCx1”HexBolt 4 09-1046
P Part
3/8”LockWasher 4 09-5106
Q Part
5/16”x1-1/2”ClevisPin 2 09-0256
R Part
ShifterLugWeldment(Bolted) 1 101-0016
S Part
TopShifterBushing(threaded) 1 101-0020
