2 Product overview
14 Festo – GDCP-CMMP-M0-HW-EN – 1511c – English
1
2
3
4
6
5
7

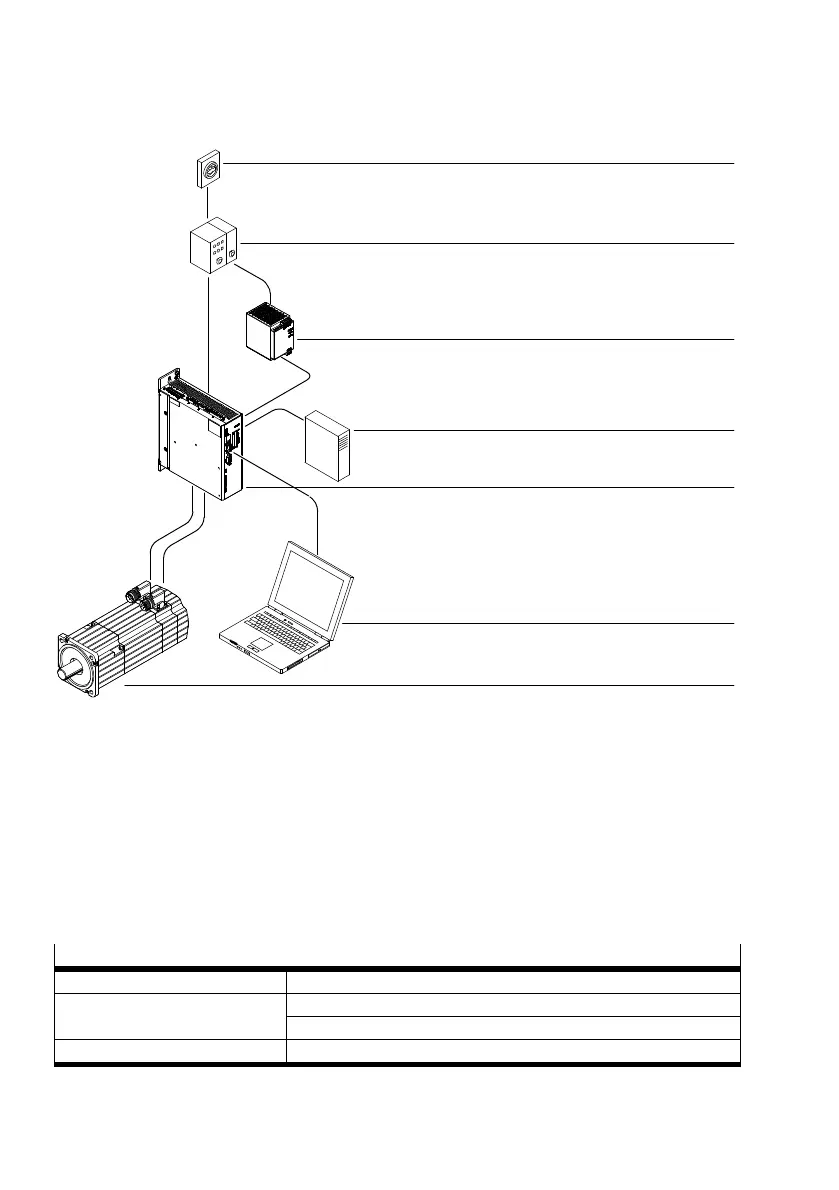

1 Power switch
2 Fuse
3 Power pack for logic voltage
4 Optional: external braking resistor
5 Motor controller CMMP-AS-...-M0
6 PC
7 Motor (e.g. EMMS-AS with encoder)
Fig. 2.1 Complete structure CMMP-AS-...-M0 with motor and PC
2.2 Scope of delivery
The delivery includes:
Scope of delivery
Motor controller CMMP-AS-...-M0
Operator package CD
Brief description
Assortment of plugs NEKM-C-7, NEKM-C-8
Tab. 2.1 Scope of delivery

Festo CMMP-AS-C5-11A-P3-M0 Specifications

General

Supply voltage	24 V DC
Max. output current	11 A
Number of digital inputs	8
Number of digital outputs	4
Number of analog inputs	2
Number of analog outputs	1
Rated speed	3000 rpm
Rated current	5.5 A
Peak current	11 A
Protection class	IP20
Controller type	Servo drive
Nominal voltage DC	24 V
Fieldbus interface	CANopen
Operating temperature	0 ... 40 °C
Motor type	Synchronous motor
Feedback system	Encoder
Ambient temperature	0 ... 40 °C
Operating voltage range DC	19.2 - 28.8 V DC
