4 Electrical installation
Festo – GDCP-CMMP-M0-HW-EN – 1511c – English 37

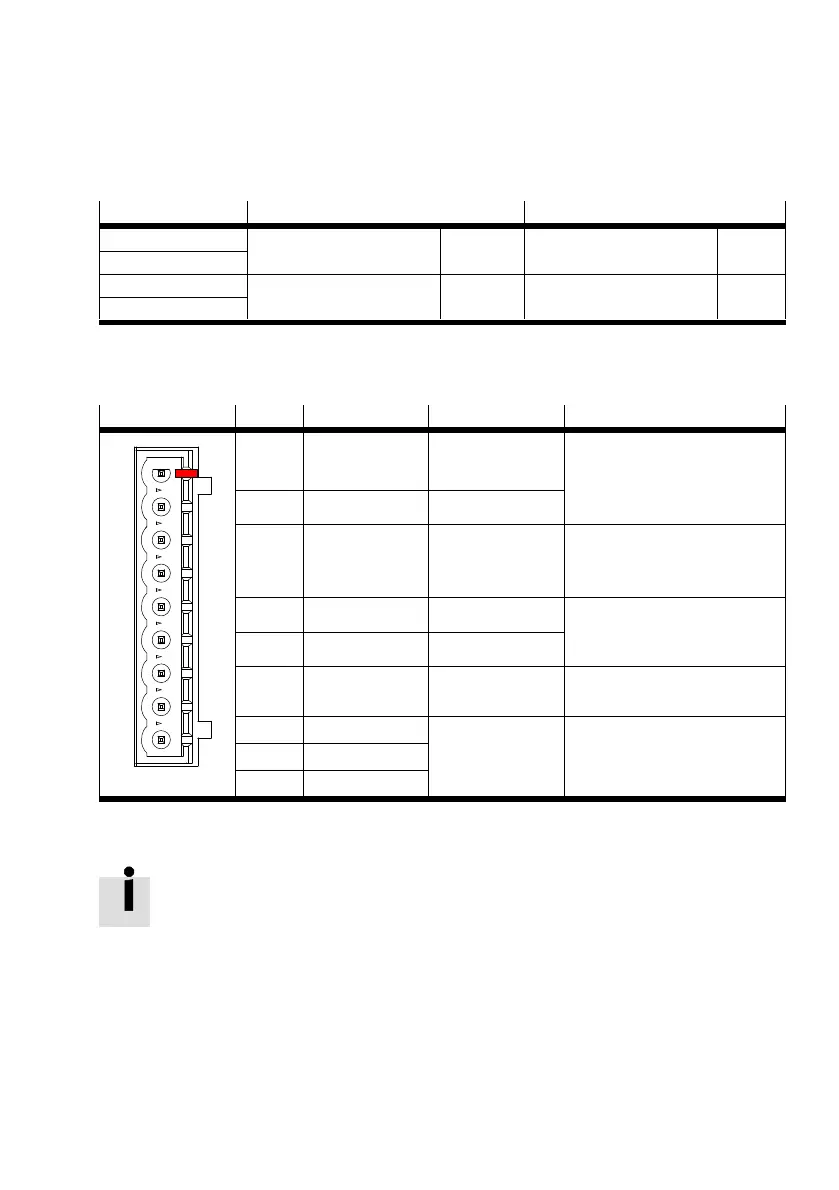

4.7 Connection: Motor [X6]
4.7.1 Plug [X6]
CMMP-AS-... Design on the device / coding Counterplug / coding
...-C2-3A-M0 PHOENIX Contact
MSTBA 2.5/9-G-5.08 BK
Pin 1 (BR-) PHOENIX Contact
MSTB 2.5/9-ST-5.08 BK
Pin 9 (U)
...-C5-3A-M0
...-11A-P3-M0 PHOENIX Power-Combicon
PC 5/9-G-7.62 BK
– PHOENIX Power-Combicon
PC 5/9-ST-7.62 BK
–
...-C10-11A-P3-M0
Tab. 4.14 Plug design [X6]
4.7.2 Pin assignment [X6]
[X6]1) Pin no. Designation Value Specification
1
9
1 Br- 0 V brake Holding brake (motor), signal
level dependent on switching
status, high-side/low-side
switch
2 BR+ 24 V brake
3 PE PE Cable shield for the holding
brake and the temperature
sensor (with Festo cables: n.c.)
4 -MTdig GND Motor temperature sensor,
N/C contact, N/O contact, PTC,
KTY ...
5 +MTdig +3.3 V 5 mA
6 PE PE Protective earth conductor
from the motor
7 W Technical data
è Tab. A.9
Connection of the three motor
phases
8 V
9 U
1) Representation of the plug on the device of the motor controller CMMP-AS-...-3A-M0
Tab. 4.15 Pin assignment [X6] connection: Motor
The shielding for the motor cable must also be attached to the housing of the motor con
troller (spring clip: Fig. 2.5 è Page 18).
A motor holding brake can be connected to terminals BR+ and BR-. The locking brake is supplied from
the logic supply of the motor controller. The maximum output current provided by the CMMP-AS-...-M0
motor controller must be observed.
