1. Installation
1-9
Festo Festo P .BE CP FB13-E-EN en 9910c
Proceed as follows:
1. Switch off the operating voltage.
2. Assign an unused field bus address to the CP system.
3. Use a screwdriver to set the arrow of the relevant address
selector switch or DIL switch 1 to the units, tens or
hundreds figure of the desired field bus address.
Examples:
1 set field bus ad-
dress: 005
2 set field bus ad-
dress: 121
6
5
2
7
8
9
0
1
3
4
6
5
2
7
8
9
0
1
3
4
12

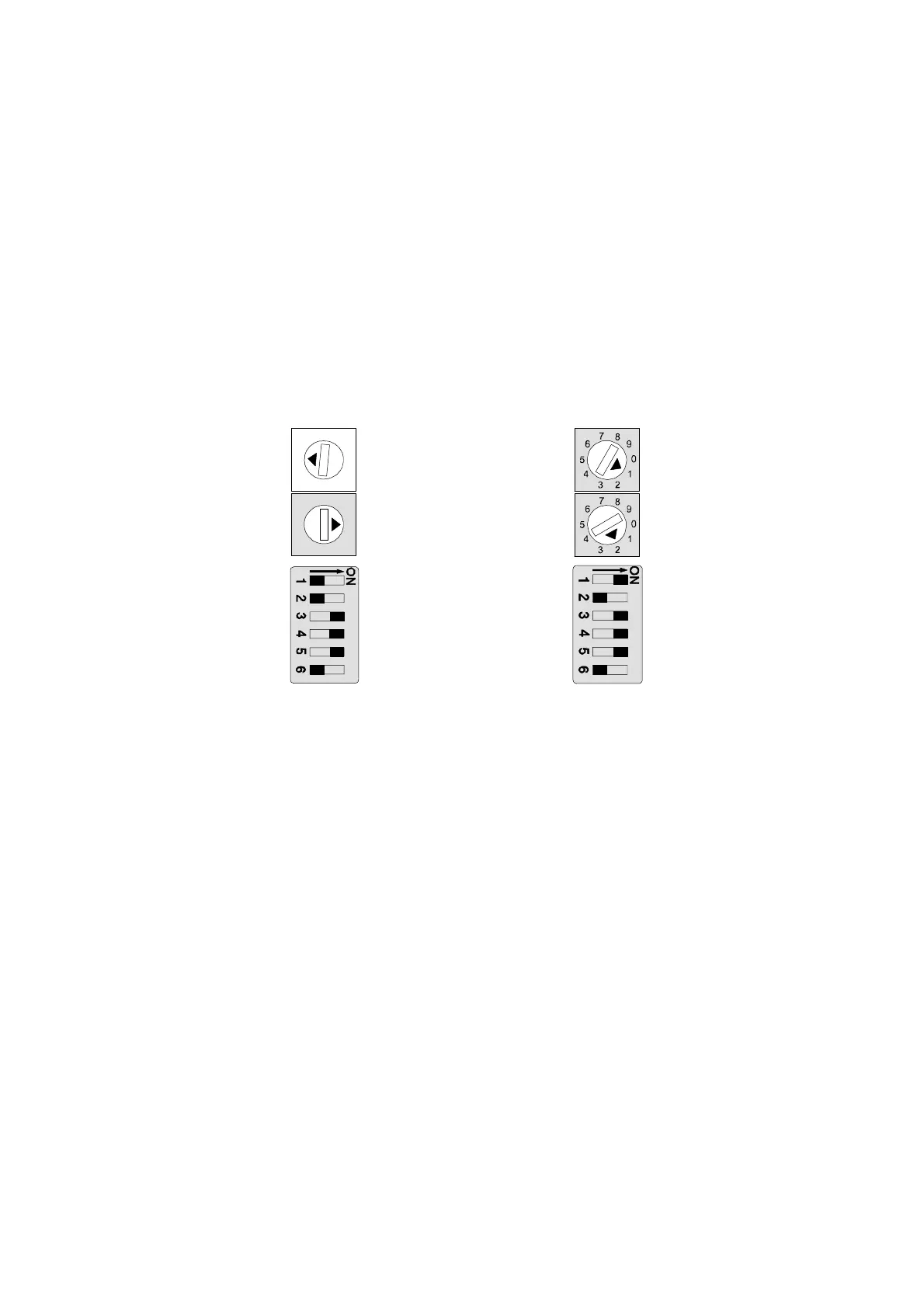

Fig. 1/3: Example of set station numbers
