2. Commissioning
2-16
Festo Festo P .BE CP FB13-E-EN en 9910c
3. Select the slave address identical to the selected setting
on the rotary/DIL switch (see chapter 1.2.1) in the slave
and confirm this.
The mask “Slave parameters” appears 4.
4. Select the station ty pe “FESTO CP FB13” and confirm this.
The mask “Preset Configuration” appears (Fig. 2/7).

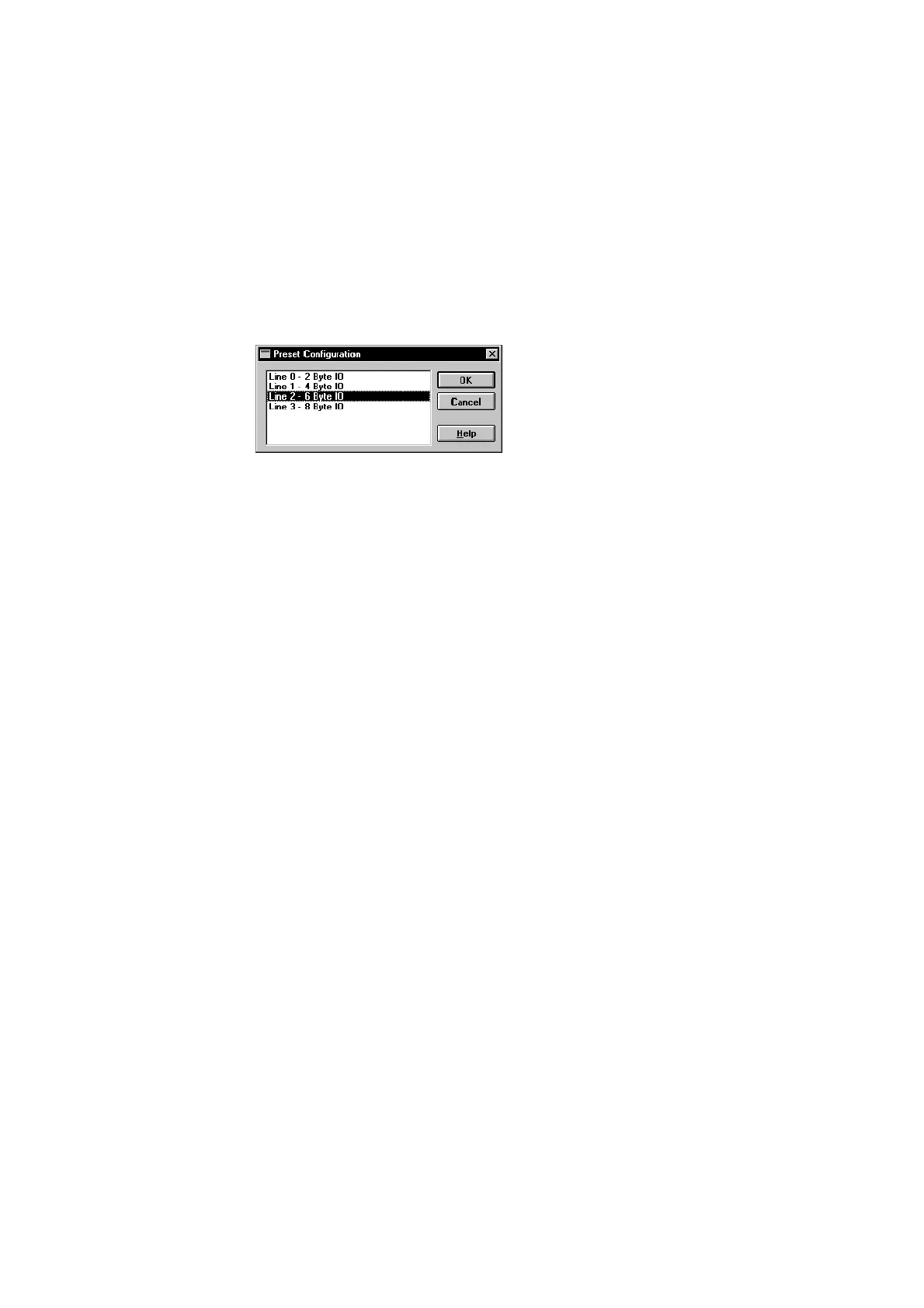

Fig. 2/7: Selecting the highest assigned string number
5. Select the highest assigned string number and click on
OK.
The symbol of the F esto valve terminal appears under the
graphic of the master . Prerequisites: You have copied the
Bitmap file as in step 2 of the preparations.
This concludes the station selection.
