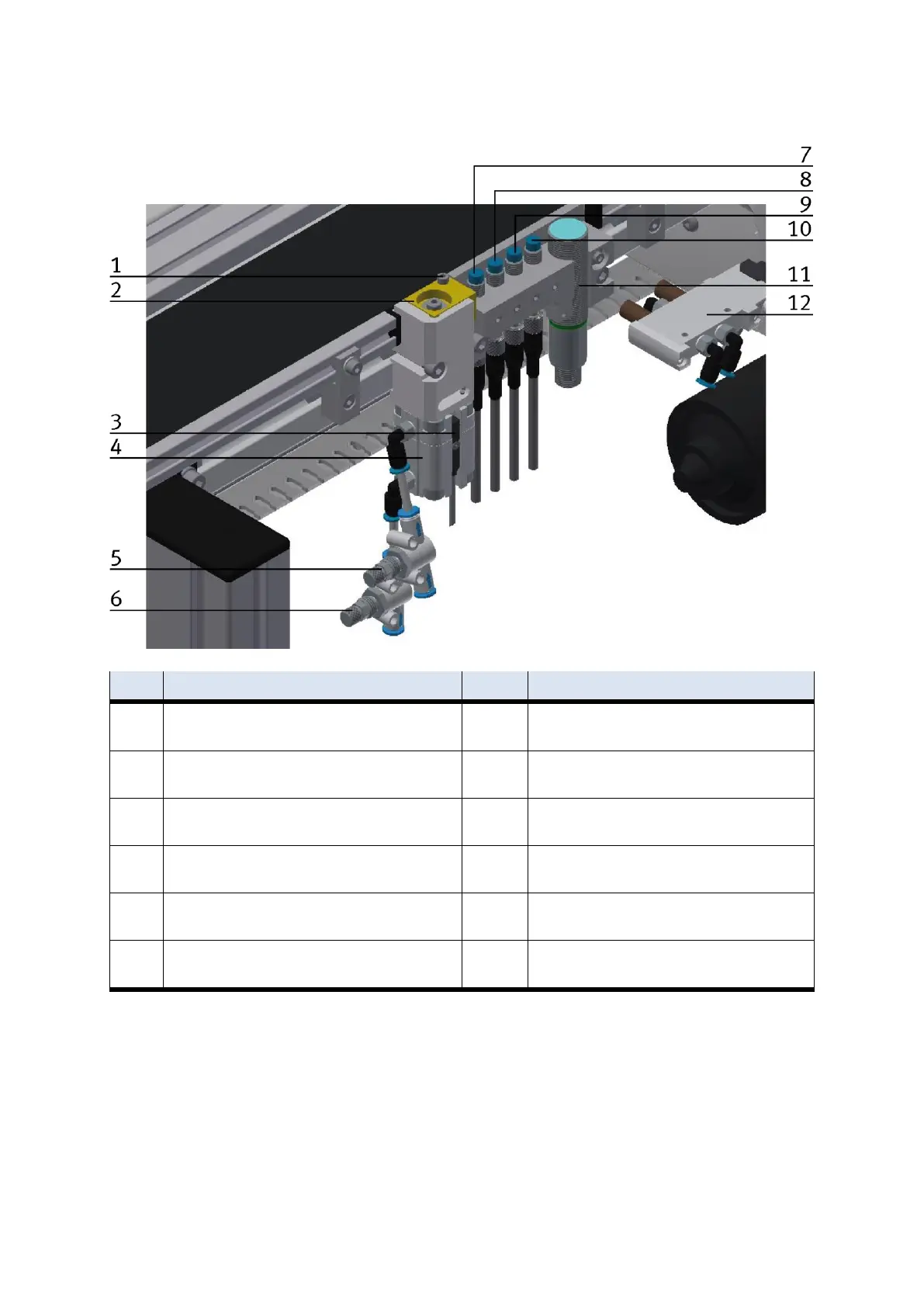

Design and function
40 © Festo Didactic Conveyor
Position
Description
Position
Description
1
Stopper and guide screw for carrier
7
Inductive sensor
150395 / SIEN-M8NB-PS-S-L
2
Sprung stopper ratchet
8
Inductive sensor
150395 / SIEN-M8NB-PS-S-L
3
Sensor for stopper retracted
574334 / SMT-8M-A-PS-24V-E-0,3-M8D
9
Inductive sensor
150395 / SIEN-M8NB-PS-S-L
4
Stopper
157211 / AEVUZ-16-5-P-A
10
Inductive sensor
150395 / SIEN-M8NB-PS-S-L
5
Flow control supply air
193967 / GR-QS-4
11
RFID read-write head M18
Siemens 6GT2821-1AC32
6
Flow control exhaust air
193967 / GR-QS-4
12
Valve stopper with manual override
574351 / VUVG-L10-M52-MT-M5-1P3
