Design and function
48 © Festo Didactic Conveyor

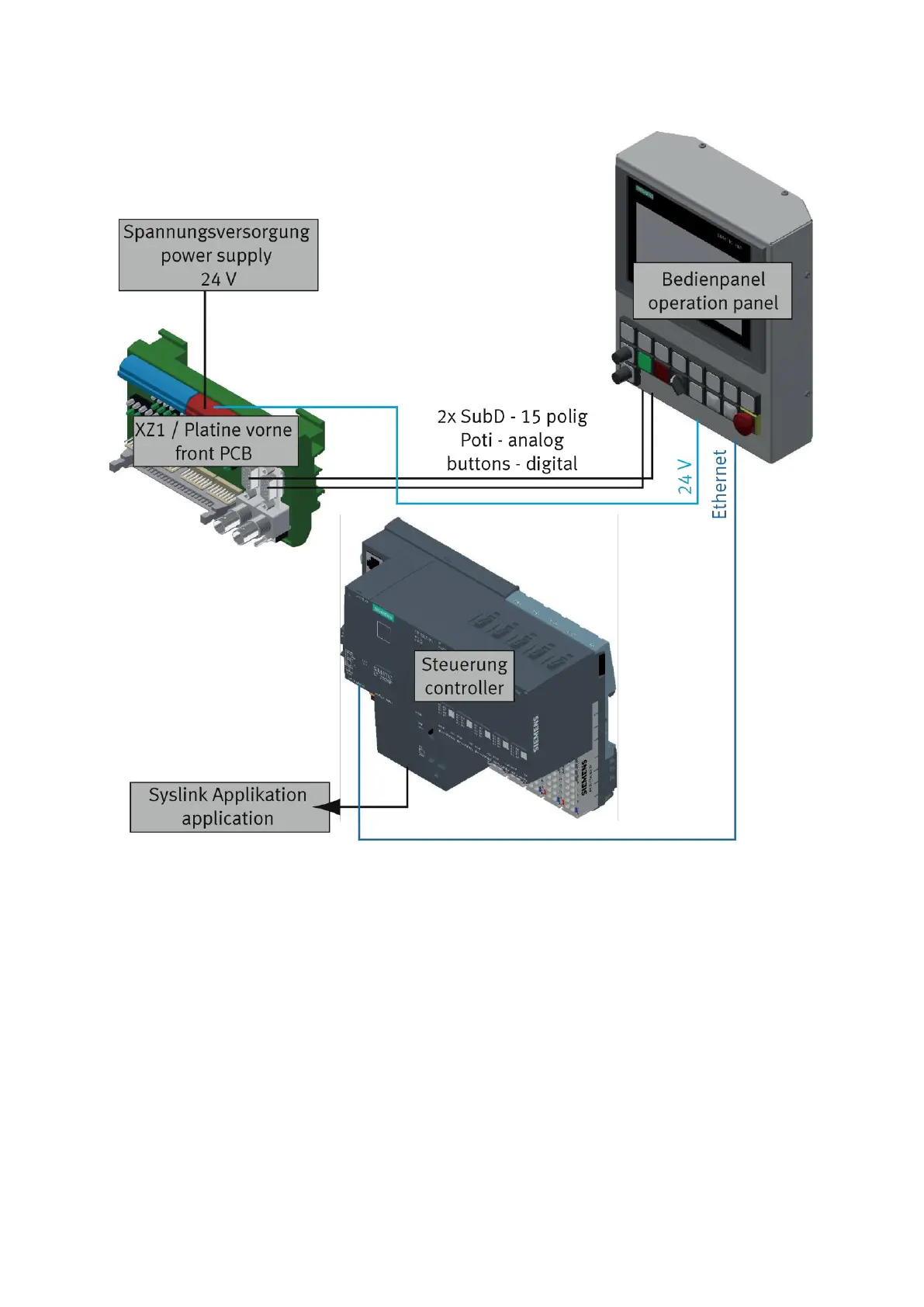

Further electrical connections
The potentiometers of the control panel are connected to the 15 pole SubD plug on the control panel. There
are also 4 I/O signals on this plug. The cable is connected to XZ1 /X12.
The external power supply is connected with lab cables at the XZ1.
With the SYSlink plug, applications are connected to the controller.
