Design and function
© Festo Didactic Conveyor 49

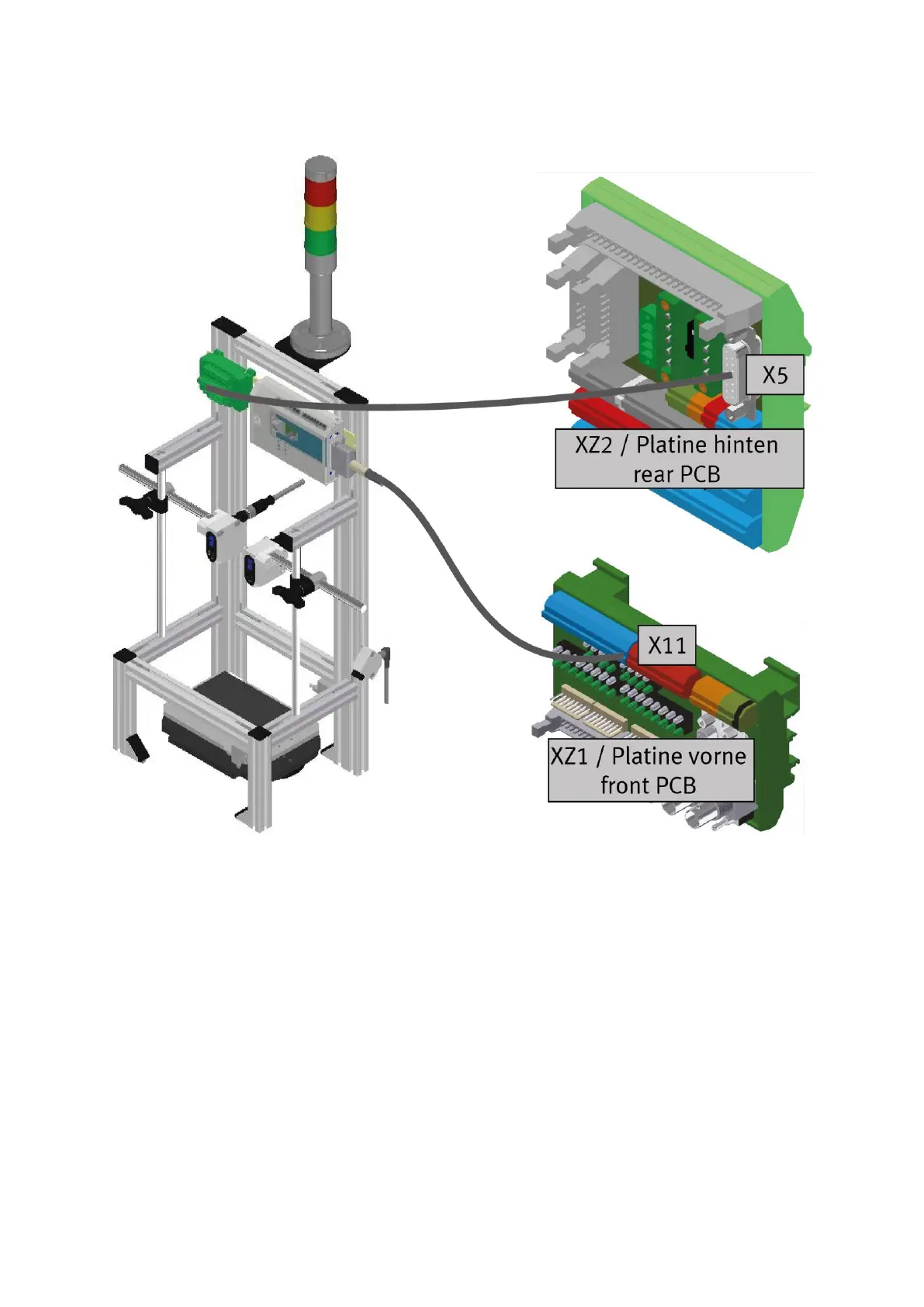

Electirc connection application module
If an application module is connected to the CP Lab conveyor, the cable that is hardwired to X11 is plugged
into the SYS-Link connector of the I / O terminal. If the application module has an analogue interface, the
analogue terminal is plugged into the rear XZ2 board at interface X5.
