Festo CP Series User Manual

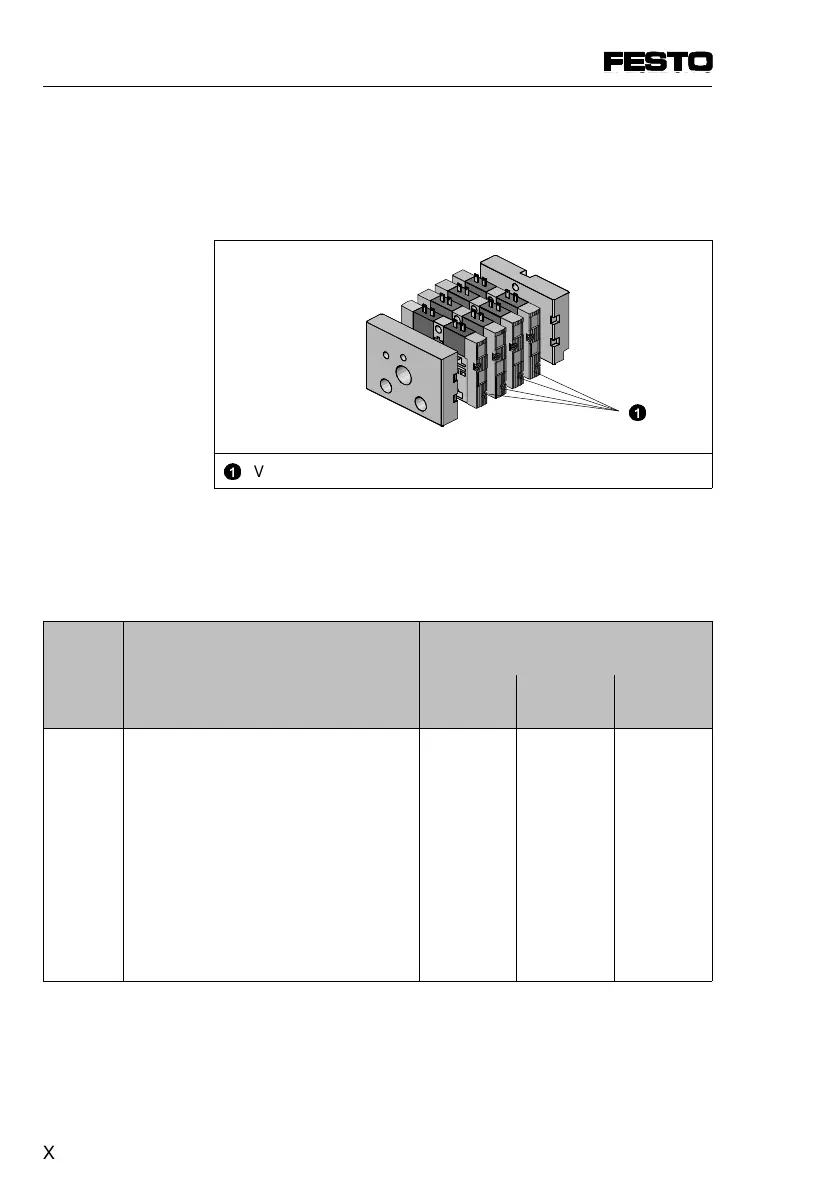

The CP valve terminal consists of different plates. The
main components of the CP valve terminal are the
valve plates (see drawing).
1
Valve plates
Fig. 0/2: Valve plates
This manual contains documentation on the following
valve plates:
Product Equipment on terminal Number of valve locations depending
on electrical connection
IC
connection
MP, CP
connection
AS-i
connection
CP
terminal
CP valve boards with auxiliary pilot air
and the following micro or mini valves:
– a 5/2-way single solenoid valve
or
– a 5/2-way double solenoid valve
or
– two 3/2-way valves
(used as mid-position valves)
or
– a 5/3-way valve blocked in
midposition (only for CPV18)
2....8
2....8
2....8
2....8
4, 6 or 8
4, 6 or 8
4, 6 or 8
4, 6 or 8
2, 4
2
2
2
1
X CPV.. 9802

Festo CP Series Specifications

General

Type	Controller
Series	CP
Category	Controller
Manufacturer	Festo
Operating Voltage	24 V DC
Protection Class	IP20
Communication Interface	CANopen, PROFINET
Programming Environment	Festo Automation Suite
Number of Axes	Varies (depending on model, typically up to 6 or more)
