Festo CP Series User Manual

5.3 Conversion from internal to external pilot air
By fitting the appropriate left and right-hand end plates
you can convert your CP terminal to internal or external
pilot air.
PLEASE NOTE
Mixed operation of the CP terminal with internal and
external control air is not permitted. The auxiliary
pilot air channel is not divided into two pressure
zones by the optionally available isolating plate.

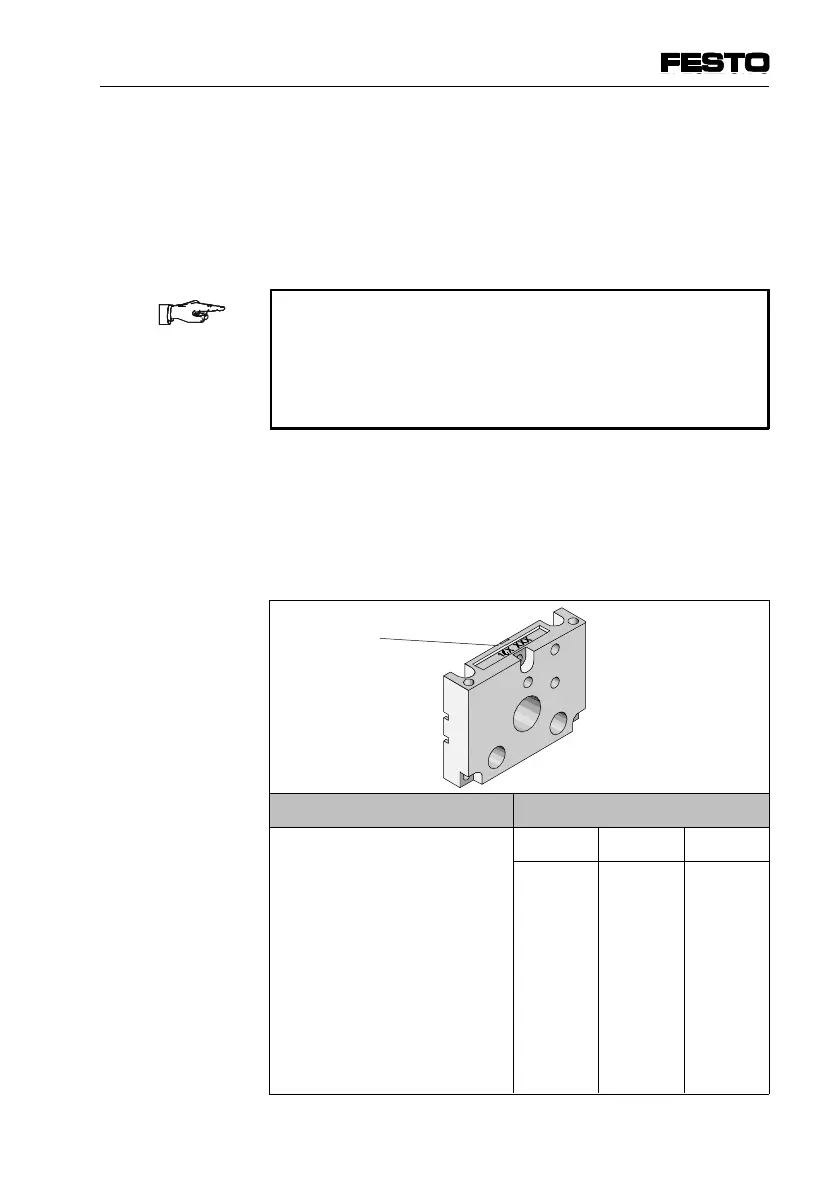

You can determine which end plates are fitted on your
CP valve terminal by means of the part numbers (posi-
tion see below). In the case of CP valve terminals with
AS-i, CP or MP connections, the electrical connector
plate must be dismantled.
Part number
Designation Part number
CPV10 CPV14 CPV18
CPV..-EPL
CPV..-EPL-E
CPV..-EPL-G
CPV..-EPL-PE
CPV..-EPL-PG
CPV..-EPR
CPV..-EPR-E
CPV..-EPR-G
CPV..-EPR-PE
CPV..-EPR-PG
161 378
161 374
161 376
161 370
161 372
161 379
161 375
161 377
161 371
161 373
162 548
162 544
162 546
162 540
162 542
162 549
162 545
162 547
162 541
162 543
163 280
163 196
163 198
163 194
163 192
163 281
163 197
163 199
163 195
163 193
5. Maintenance and conversion
CPV... 9802 5-13
