2.3 Fitting the designation support
As a protection against unauthorized operation of the
manual override and for mounting the designation clips
for the valves, the CP terminal has a designation sup-
port. This is fitted on the front above the manual over-
ride.
PLEASE NOTE
The designation support cannot be fitted onto CP ter-
minals which are equipped with relay plates.
Proceed as follows:
• Clip the designation support into the grooves in the
left and right-hand end plates (see diagram).

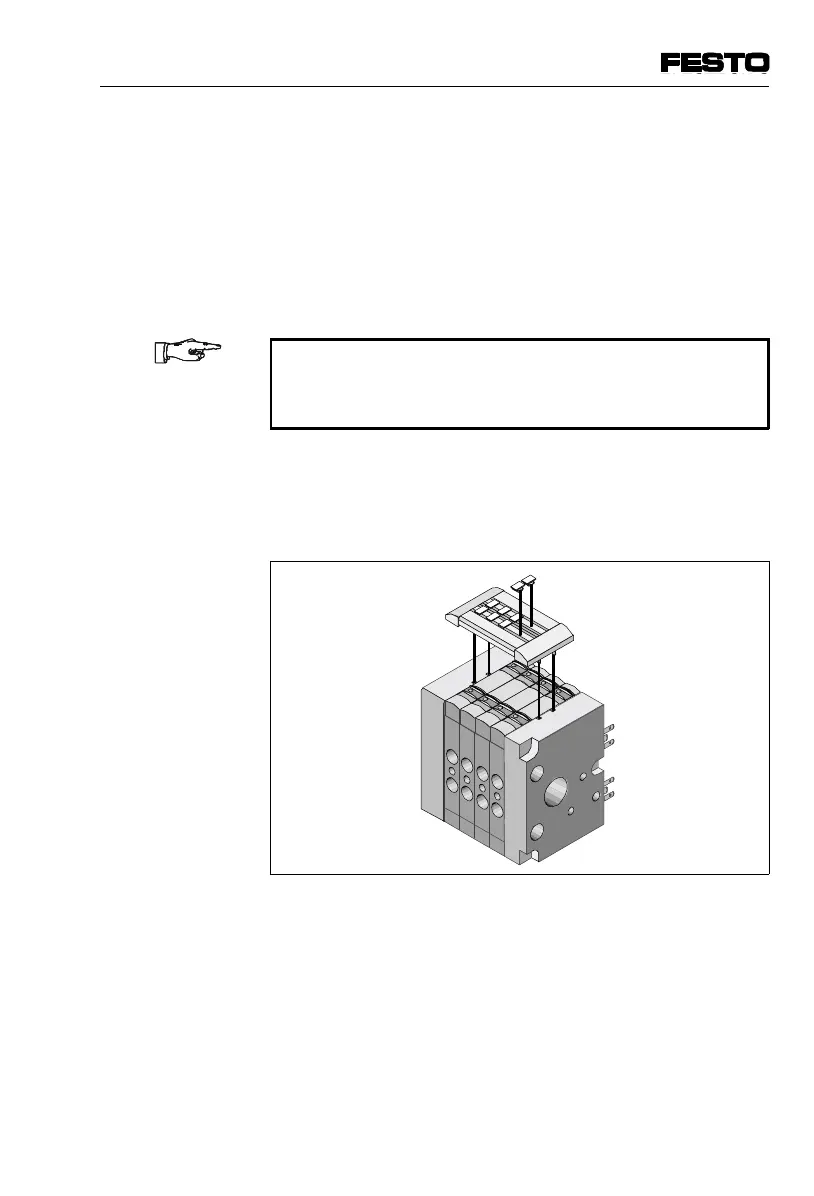

Fig. 2/8: Fitting the designation support
• Press the designation clips into the recesses on the
designation support (see Fig. 2/8).
2. Fitting
CPV... 9802 2-15
