On the CP valve terminal with AS-i connection you will
find the following electrical connections and display ele-
ments:
1
2
3
4
5
6
7
8
9
0
Green LED status display of the inputs
(only CPV..-GE-ASI-4E4A-...)
Cable socket for additional supply with black supply cable
(only CPV..-GE-ASI-.-Z)
AS-i bus socket with yellow bus cable
Sensor cable with plug (only CPV..-GE-ASI-4E4A-...)
AS-i cable cap (only CPV..-GE-ASI-.-Z)
Label clip
Yellow LED status displays of the pilot solenoids
Type plate
Earth/ground connection (per end plate)
BUS LED 1 (green),
BUS LED 2 (red) (only CPV..-GE-ASI-4E4A-...)

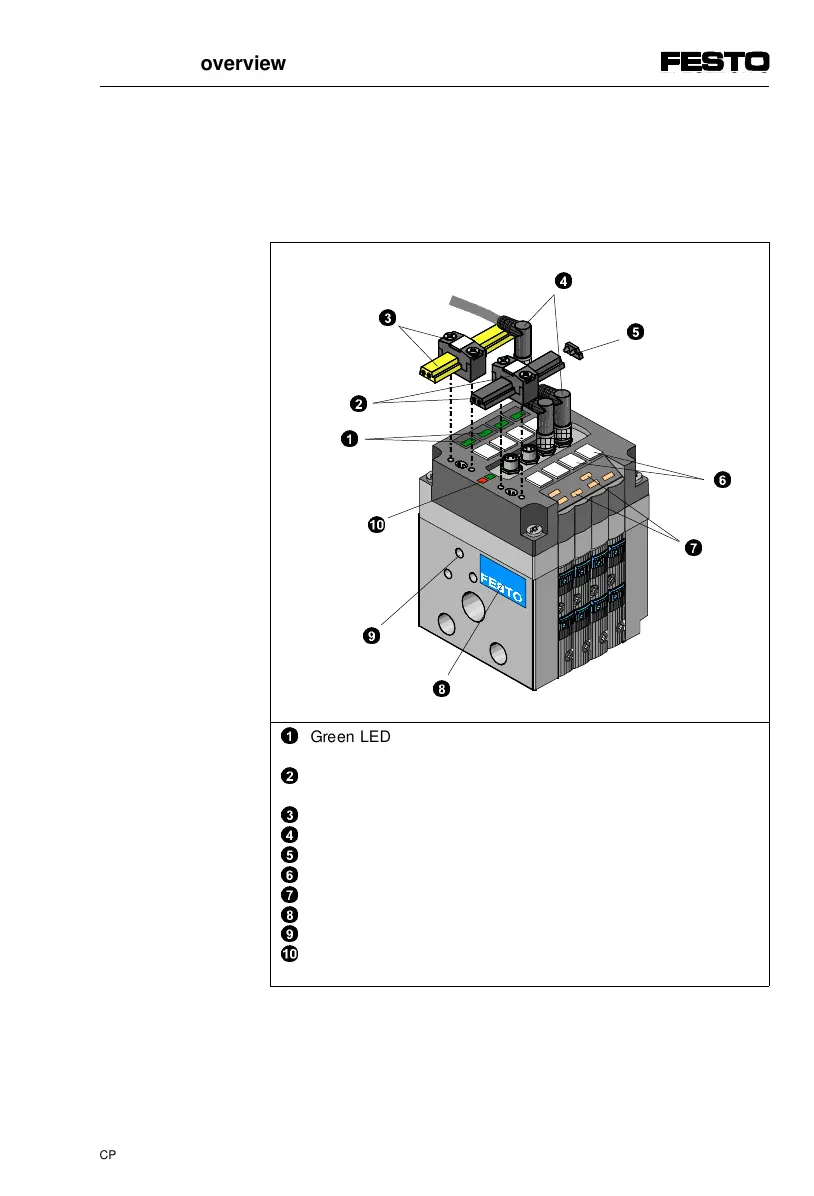

Fig. 1/8: Electrical connections and display elements
of the CP valve terminal with AS-i connection
1
6
7
2
3
4
5
9
8
0
1. System overview
CPV... 9802 1-15
