• Screw the 2 brackets onto the end plates with the
screws supplied, as shown in the diagram below.
With the CPV10/14 terminals, make sure that the
fixing bolts of the brackets grip into the recess on the
CP valve terminal.
CP terminal Self-cutting screws Tightening torque
CPV10/14 M4 x 10 1.5 Nm
CPV18 M5 x 10 4 Nm
1
2
3
4
For each end plate one M4 x 10 screw (CPV10/14) or
two M5 x 10 screws (CPV18)
Hat rail
Hat rail clamping unit
Fixing bolts (only CPV10/14)

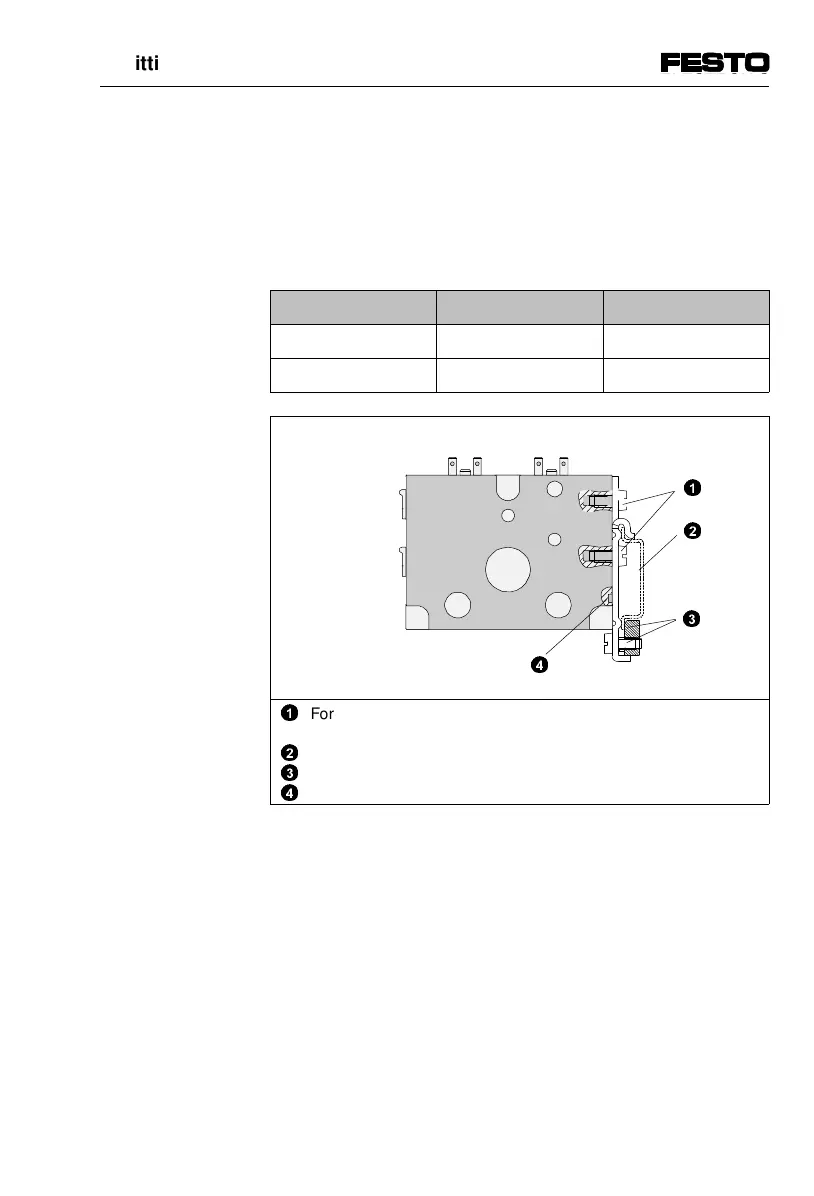

Fig. 2/2: Fitting the valve terminal onto a hat rail
• Hang the valve terminal onto the hat rail. Fasten the
terminal on both sides with the hat rail clamping unit.
This will prevent it from tilting or slipping.
4
3
1
2
2. Fitting
CPV... 9802 2-7
