Make sure that there is enough room to connect the
power cables and the pneumatic tubing.
With CP terminals with IC connection, you must in-
sert the 4 socket head screws supplied into the holes
intended for this purpose on the left and right-hand
end plates (see diagram).
CPV10 CPV14 CPV18
Socket head screws M4 x 45 M4 x 50 M6 x 65
1
2
3
M4 x 45 or M4 x 50 or M6 x 65 socket head screws
End plates
Fastening bracket

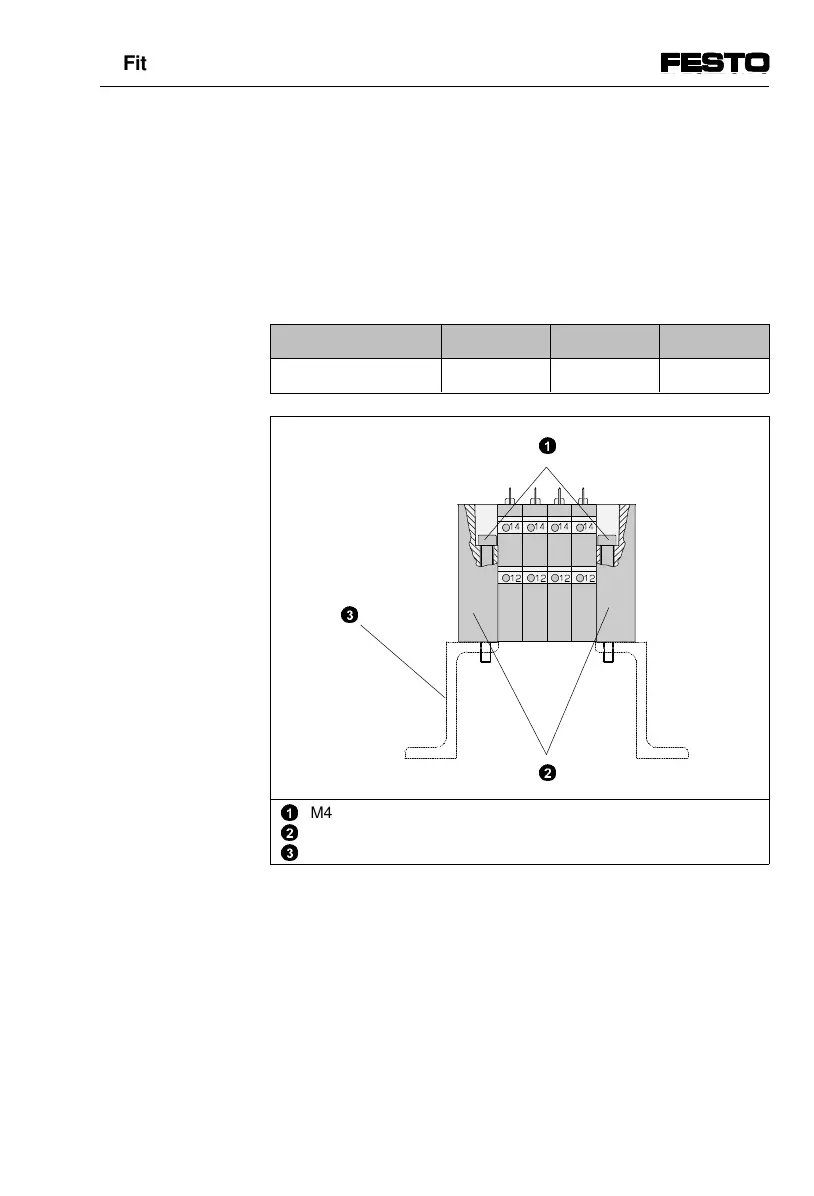

Fig. 2/4: Position of fastening screws
Screw the CP valve terminal onto your fastening sur-
face or onto a support bracket.
3
1
2
2. Fitting
CPV... 9802 2-9
