Festo CP Series User Manual

Basic installation
– Connecting
1. Push the tubing as far as it will go over the port
on the screw connector.
2. If necessary, pull the locking ring (A) over the
tubing connection and tighten clamping screw (B).
3. Group the tubing together for reasons of
clarity with:
- tubing connectors or
- multiple hose holders
– Disconnecting
1. Loosen the locking screw or locking ring of the
screw connector.
2. Pull the tubing out.
3. Replace non-required tubing with blind plugs (C).
Connecting
Disconnecting

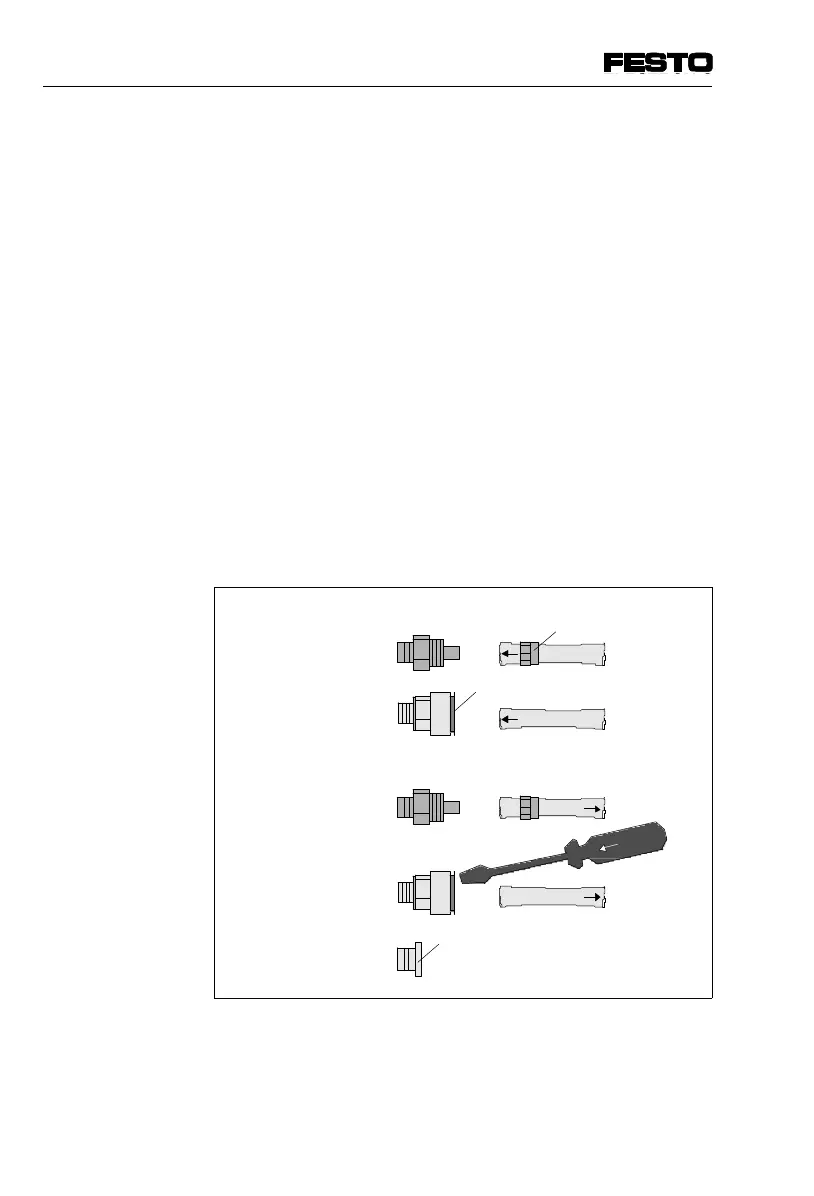

Fig. 3/1: Tubing variants
(B)
(A)
(C)
3. Installation
3-4 CPV... 9802

Festo CP Series Specifications

General

Type	Controller
Series	CP
Category	Controller
Manufacturer	Festo
Operating Voltage	24 V DC
Protection Class	IP20
Communication Interface	CANopen, PROFINET
Programming Environment	Festo Automation Suite
Number of Axes	Varies (depending on model, typically up to 6 or more)
