4. Remove the components.
Loosen both lower tie rods one turn.
Then loosen the upper tie rod and pull it over the
components which are to be replaced.
Unscrew the two lower tie rods until the heads of the
screws are flush with the outer surface of the end
plate (do not remove the tie rod).
Pull the valve terminal apart so that the distance be-
tween the component to be replaced and the next
component is in each case 2 mm.
1
2
3
Component to be replaced
Tie rod
Gap approx. 2 mm

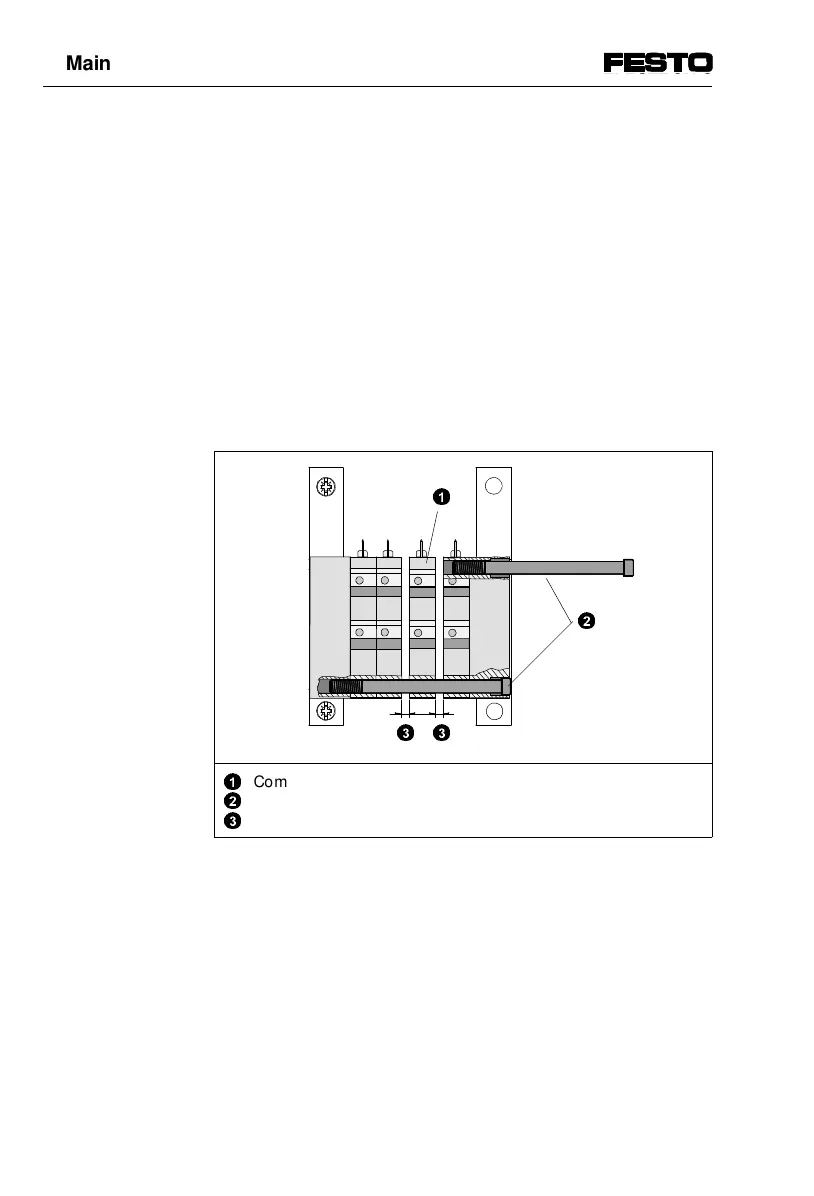

Fig. 5/1: Removing the valves
1
2
33
5. Maintenance and conversion
5-6 CPV... 9802
