Appendix D: Cadence Patterns

The cadence patterns shown below are available for use with the control panel.

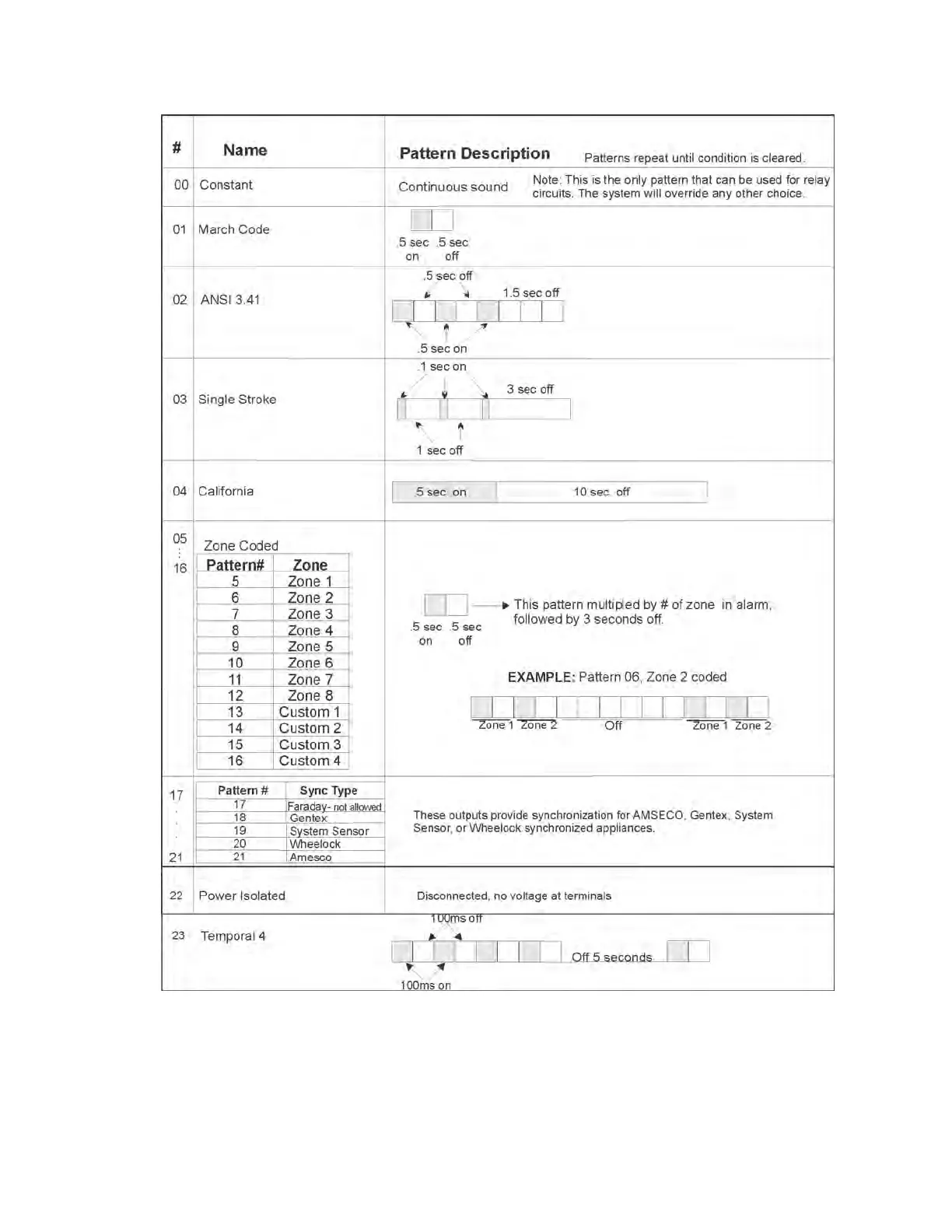

Figure D.1 Cadence Patterns
