40 FCP-75 Manual — P/N LS10147-003FK-E:A 3/17/2021
Control Panel Installation FIK-5865-3 / FIK-5865-4 LED Annunciator Installation

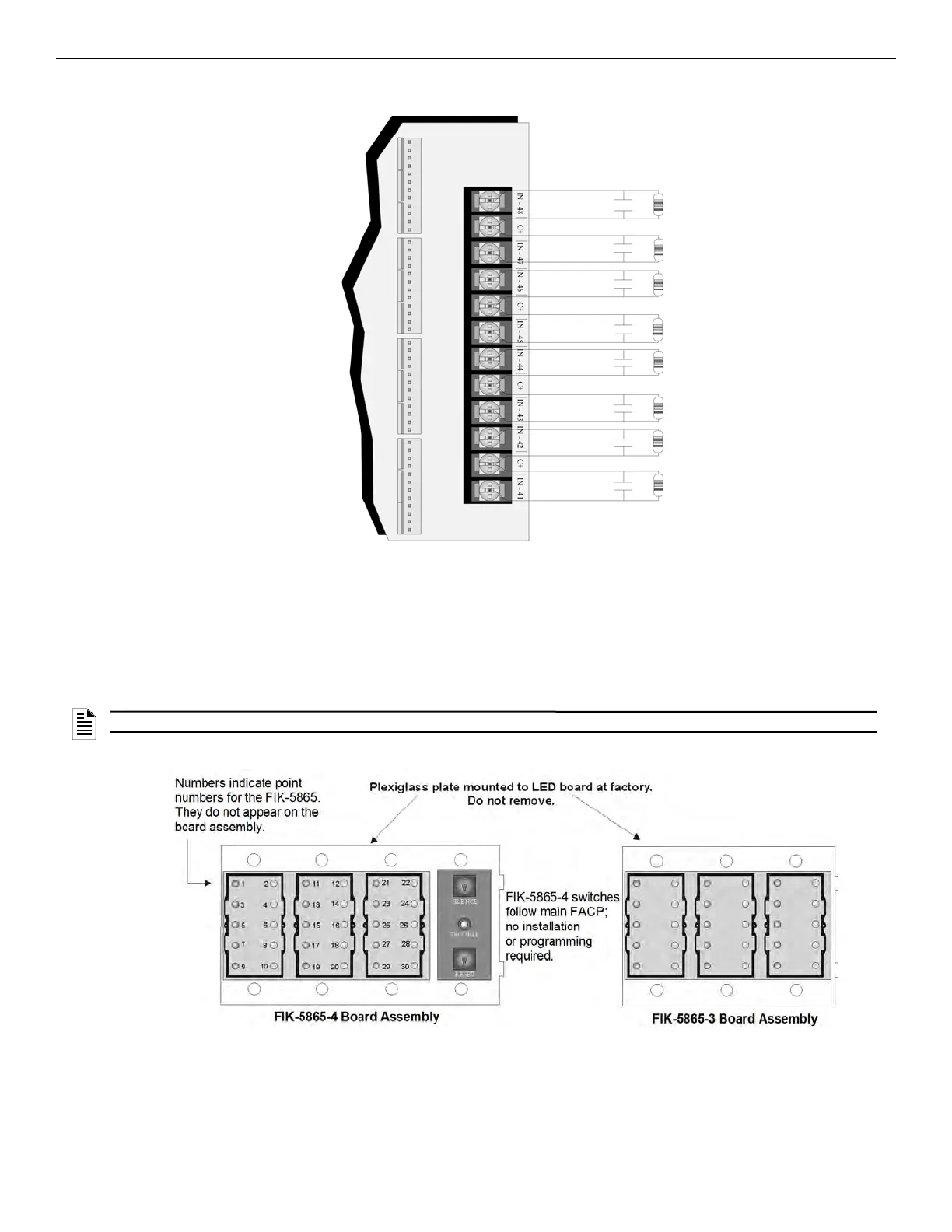

Wire dry contacts as shown in Figure 4.34. Notice grouping of terminals; power terminals are shared by two inputs.
Figure 4.34 Dry Contact Wiring
4.10 FIK-5865-3 / FIK-5865-4 LED Annunciator Installation
The FIK-5865-3 and FIK-5865-4 are LED annunciators. The FIK-5865-4 has 30 mappable LEDs, remote silence and reset key switches, and
a general system trouble LED. The FIK-5865-3 has 30 mappable LEDs only. These are arranged as 15 pairs of red (typically used for alarm)
and yellow (typically used for trouble) LEDs.
Installation of the FIK-5865-3 and FIK-5865-4 is identical. The key switches and the trouble LED follow the behavior of other system
annunciators and do not require any installation steps. The following sub-sections describe how to install the FIK-5865-3 and FIK-5865-4
hardware. Refer to Section 6 for programming information.
Figure 4.35 FIK-5865-3 and FIK-5865-4 Assembly (front view)
NOTE: This manual uses “FIK-5865” when referring to aspects of the FIK-5865-3 and FIK-5865-4 that are common to both models.
