Control Panel Installation FIK-RA1000R Remote Annunciator Installation
4.5.2 FIK-RA100 Connection to the Panel

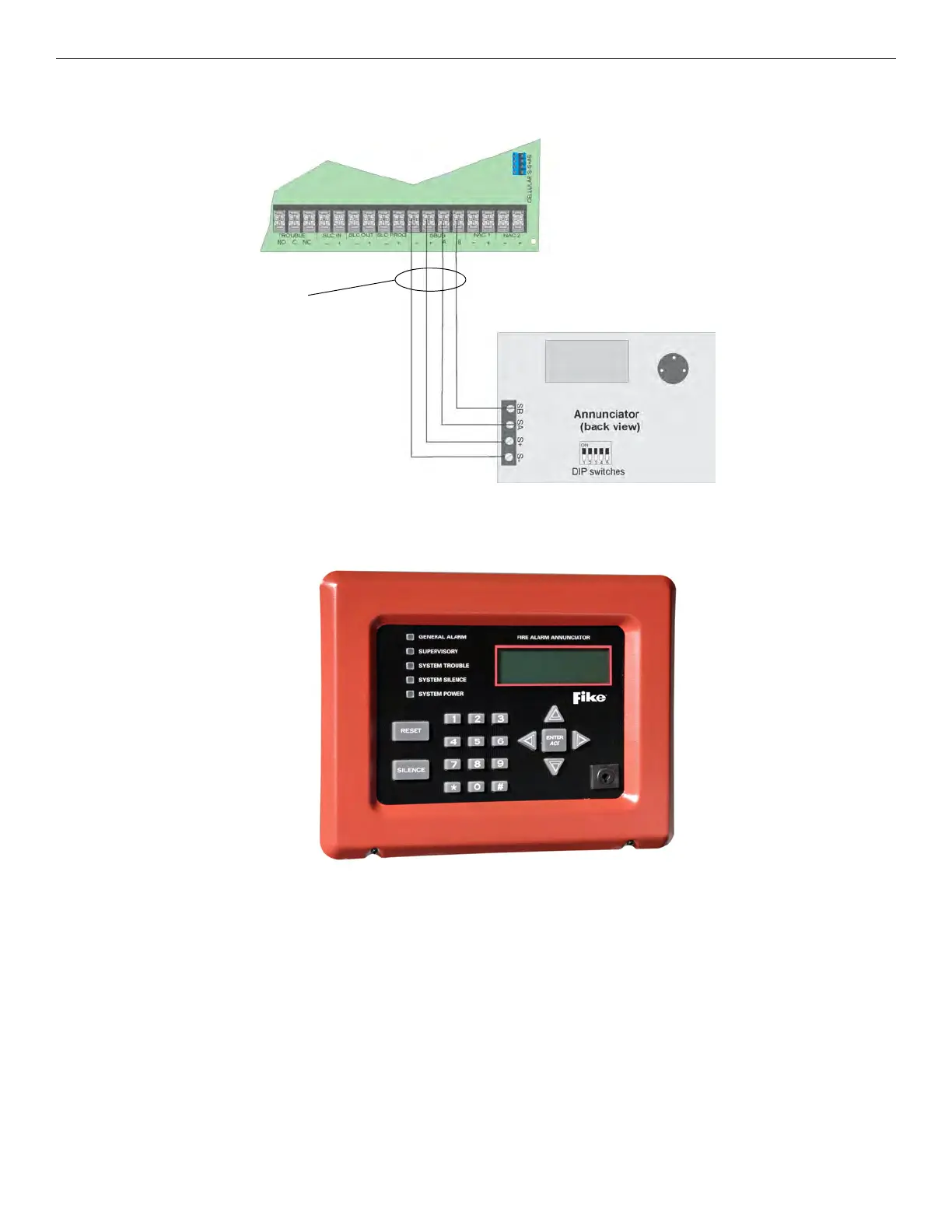

Connect the FIK-RA100 to the panel as shown in Figure 4.15.
Figure 4.15 Model FIK-RA100 Connection to the Panel
4.6 FIK-RA1000R Remote Annunciator Installation
The optional Model FIK-RA1000R Remote Annunciator, is shown in Figure 4.16. Up to 8 annunciators can be added to the FCP-75 system.
Figure 4.16 Model FIK-RA1000R Remote Annunciator, Front View
FIK-RA1000R installation involves the following steps:
1. Make sure the power is off at the panel.
2. Mount the FIK-RA1000R in the desired location (see Section 4.6.1).
3. Connect the FIK-RA1000R to the panel (see Section 4).
4. Use the dipswitches on the back of the FIK-RA1000Rto assign an ID# to the FIK-RA1000R (see Section 4.11.1).
5. The new FIK-RA1000R module must be added to the system through programming. JumpStart will add the module automatically (see
Section 8.1). You can also add it manually (see Section 9.2.2). Select a name, if desired.
