OPERATION AND USE
id.:
DB 460 REV. 00 02/01/2015

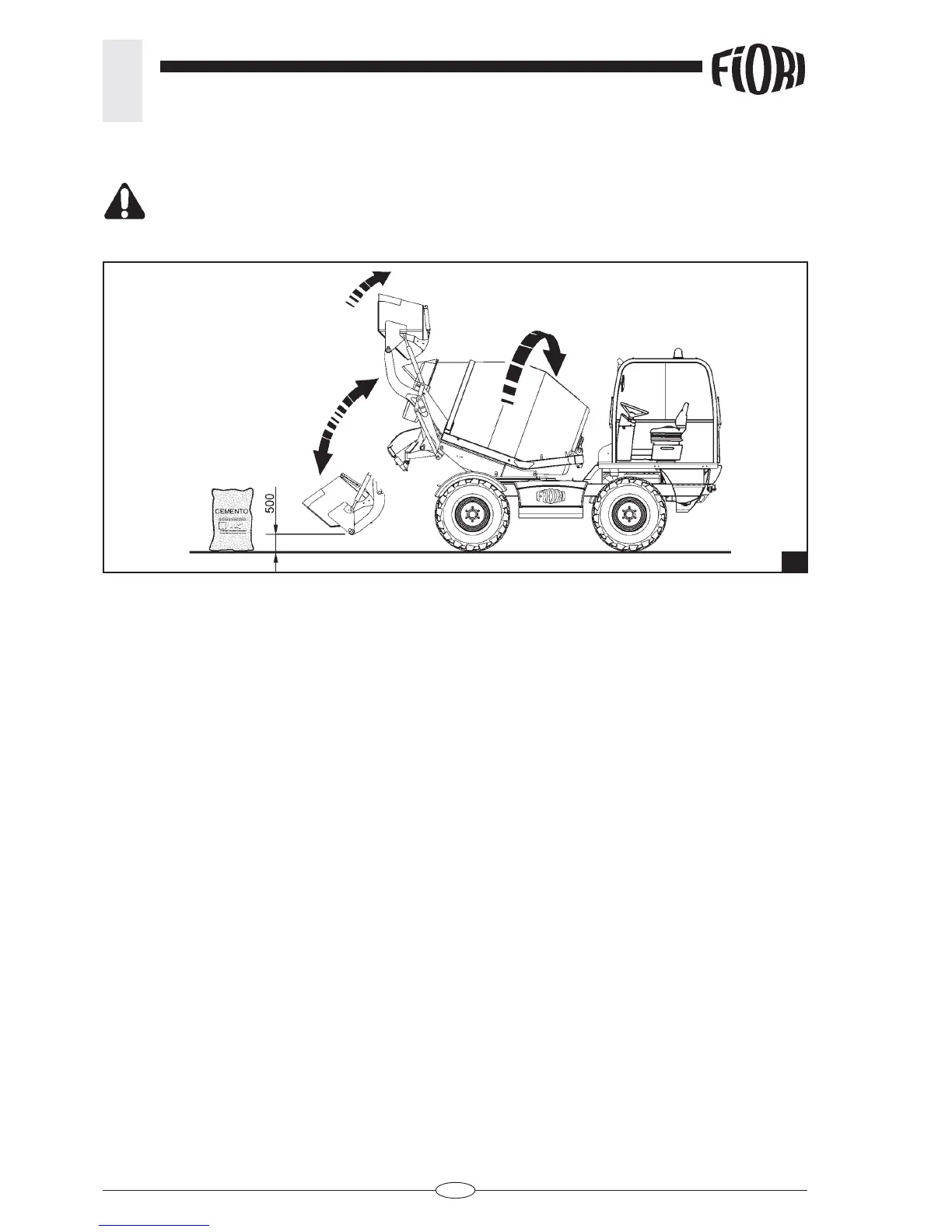

4.10.6.a Cement in bags (fi g. 35)
4.10.6 CEMENT LOADING
It is strictly prohibited to climb onto the vehicle, whether it is in the mixing phase
or stationary.
DANGER:
CAUTION: Wear a protective mask.
- Keep the drum rotating.
- Raise the bucket about 0.5 metres and hold it in fully tilted position with the hatch closed.
- Calculate the quantity of cement to be loaded referring to the CONCRETE COMPOSITION AND BATCHING
TABLE in chapter 4.10.4.
- Manually fi ll the bucket with cement, tearing open the bags on the serrated blade of the bucket.
- Remove the paper bags.
- Raise the arm to its maximum height.
- Open the unloading hatch and wait until the cement has poured into the drum through the hopper, helping it
along by vigorously shaking the bucket with the arm.
35
