OPERATION AND USE
id.:
DB 460 REV. 00 02/01/2015

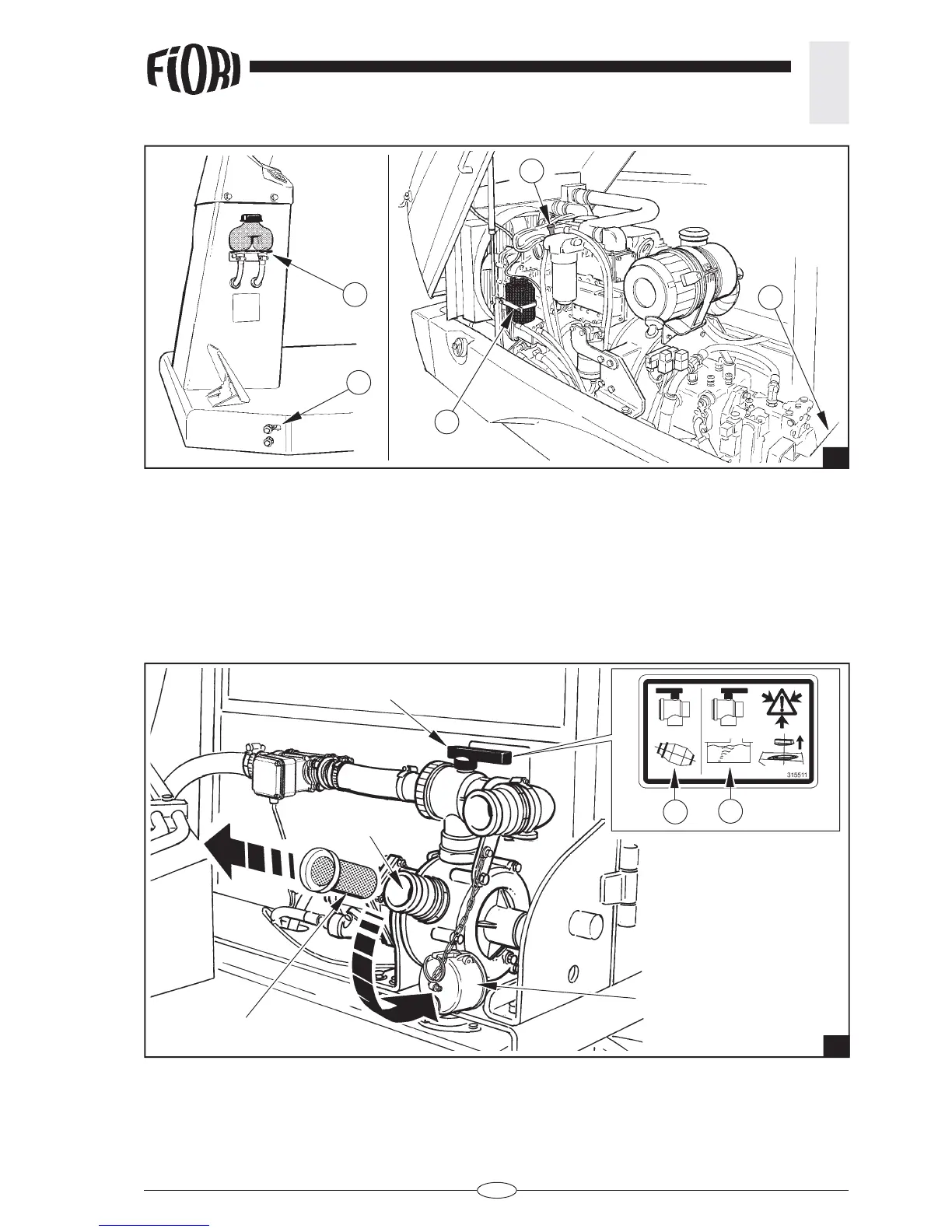

4.3.3 FILLING THE WATER TRANSFER PUMP BODY (fi g.15).
Before starting the vehicle check the following:
- Engine oil level (1)
- Engine coolant level (2)
- Hydraulic oil level (3)
- Brake fl uid level (4)
- Clean the contacts of the reverse gear microswitches (5).
The procedures are described in chapter 5 on maintenance.
4.3.2 LEVEL CHECK (fi g. 14)
1
2
C
D
15
A
B
For proper operation of the self-priming pump, this must contain water.
Remove the closing cap C and take out the pre-fi lter D.
Check that it contains water through the suction pipe union A.
If there is no water, refi t the pre-fi lter D, fi ll the pump body with water through the suction union A holding the
14
2
3
1
5
4
