OPERATION AND USE
id.:
DB 460 REV. 00 02/01/2015
It draws current from the 12V battery by means of a bayonet coupling.
Snap switch to turn on the front wiper.
Snap switch to turn on the rotating beacon on the cabin roof.
4.2.1.l - L - Power socket (fi g. 2).
4.2.1.i - I - Windscreen washer switch (fi g. 2).
4.2.1.o - O - Rotating light switch (fi g. 2).
4.2.1.h - H - Pivoting driving post locking lever (fi g. 2).
The lever allows the operator to lock the driving post in the transfer A and loading B positions.
If the driving post is not securely locked in the positions A or B, dedicated microswitches will not allow vehicle
movement.

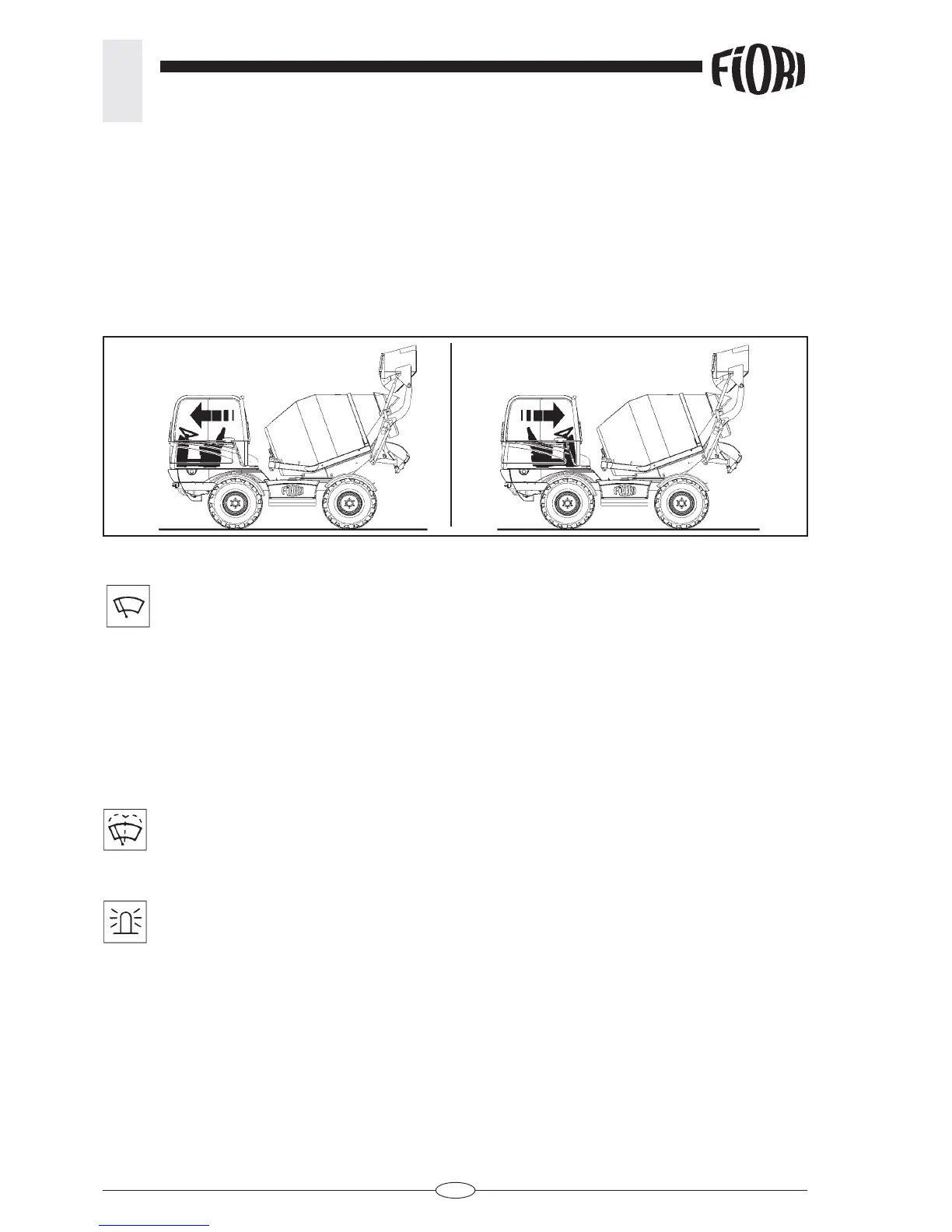

CAUTION: The driving post must be turned in the direction as shown in Fig. A for road transfers and
in Fig. B for the drum loading phases. Turn the driving post with the vehicle stationary and
stable and the gear selector in neutral position.
This operation may be carried out while you are seated on the driver’s seat. Check that it is
locked into place at the end of the operation.
A
B
Turns on the fan for defrosting the windows or heating the closed cabin.
4.2.1.m - M - Heating/defrosting fan adjuster (fi g.
2).
4.2.1 n - N - Windscreen water switch (fi g. 2).
Allows you to pump the windscreen washer fl uid.
Quick manual for the main starting and driving functions and maintenance of the vehicle.
4.2.1.p - P - Short Manual (fi g. 2).
Allows the operator to adjust the engine RPM when the vehicle is stationary; use only during concrete
mixing and unloading and to operate the water transfer pump.
Before activating it, check that the electrical gear selector lever is in neutral position.
CAUTION: Always shift the lever back to “0”, otherwise the vehicle will not move forward since the
forward/reverse selector is disabled.
4.2.1.q - Q - Hand accelerator lever (fi g. 2).
