4.5.1 RELEASING THE PARKING BRAKE IN THE EVENT OF A BRAKE SUPPLY SYSTEM FAULT

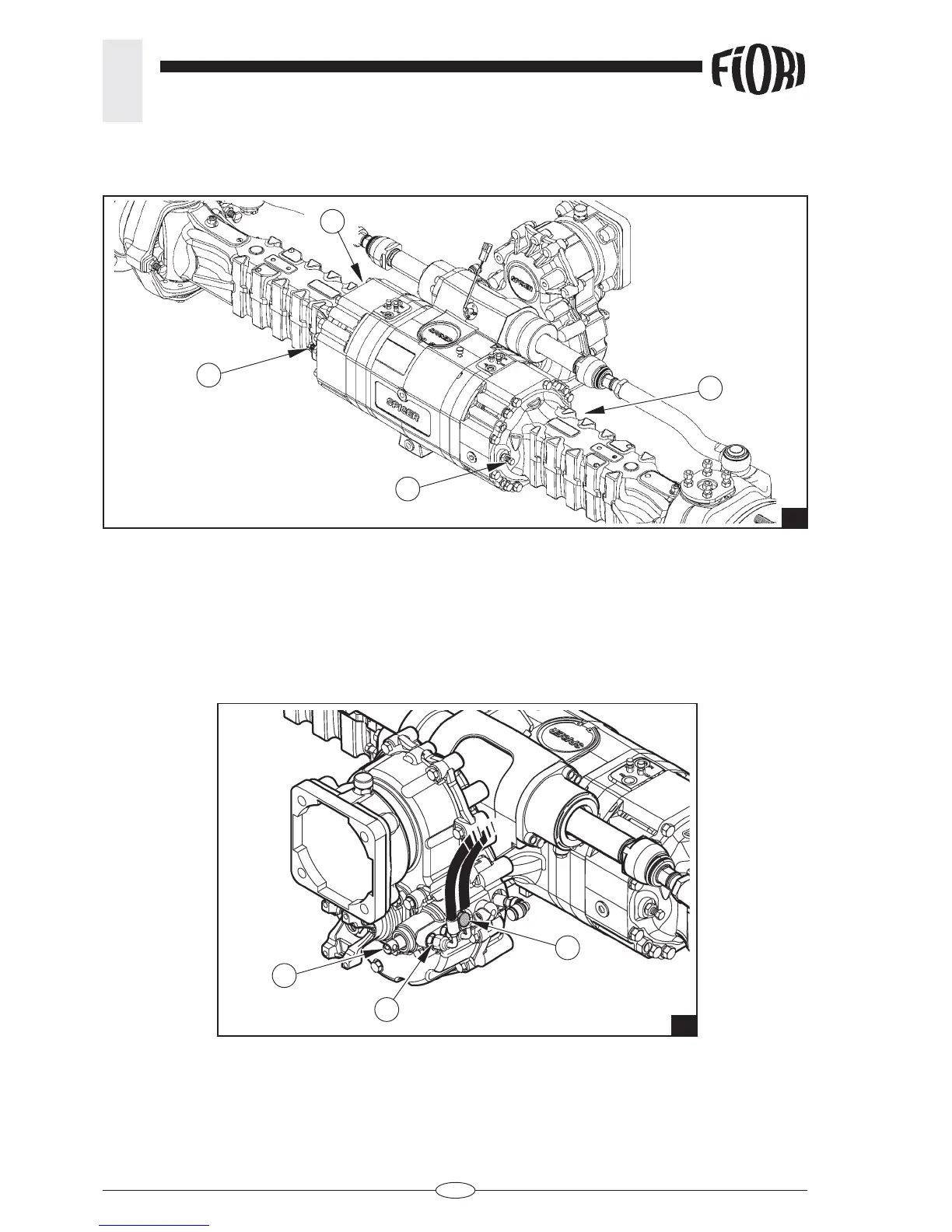

(fi g. 25)
25
1
1
1
1
Carry out this operation on a fl at surface after blocking the wheels with wedges.
- Tighten the four screws (1) of the axles using a no. 14 wrench tightening them by one turn each one after
another in sequence until they are at the end of travel mechanically releasing the brake.
- To resume the brake original conditions, follow the above procedures in reverse order.
4.5.2 GEARSHIFTING TO NEUTRAL
(fi g. 26)
26
4
3
2
- Loosen the two hydraulic pipings (2).
- Loosen the plug (3) using a no. 22 socket wrench (not reinforced) and move the shaft (4) until it offers no
resistance, meaning that the gear is disengaged.
- To resume the gearbox original conditions, follow the procedures described above in reverse order.
