5.12.3 REPLACING THE LIGHT BULBS (fi g. 34)
Modifi cations or repairs to the electric system made incorrectly or without taking
the technical specifi cations of the system into account may cause malfunctions
with a risk of fi re.
When a light is not working, check that the corresponding fuse is intact before replacing the bulb.
Before replacing a burnt bulb, check that the contacts are not oxidised.
Burnt bulbs must be replaced with new ones of the same type. Bulbs with insuffi cient power provide poor light,
whereas too powerful bulbs absorb too much energy.
After replacing a headlight bulb always check the orientation for safety reasons.
DANGER:

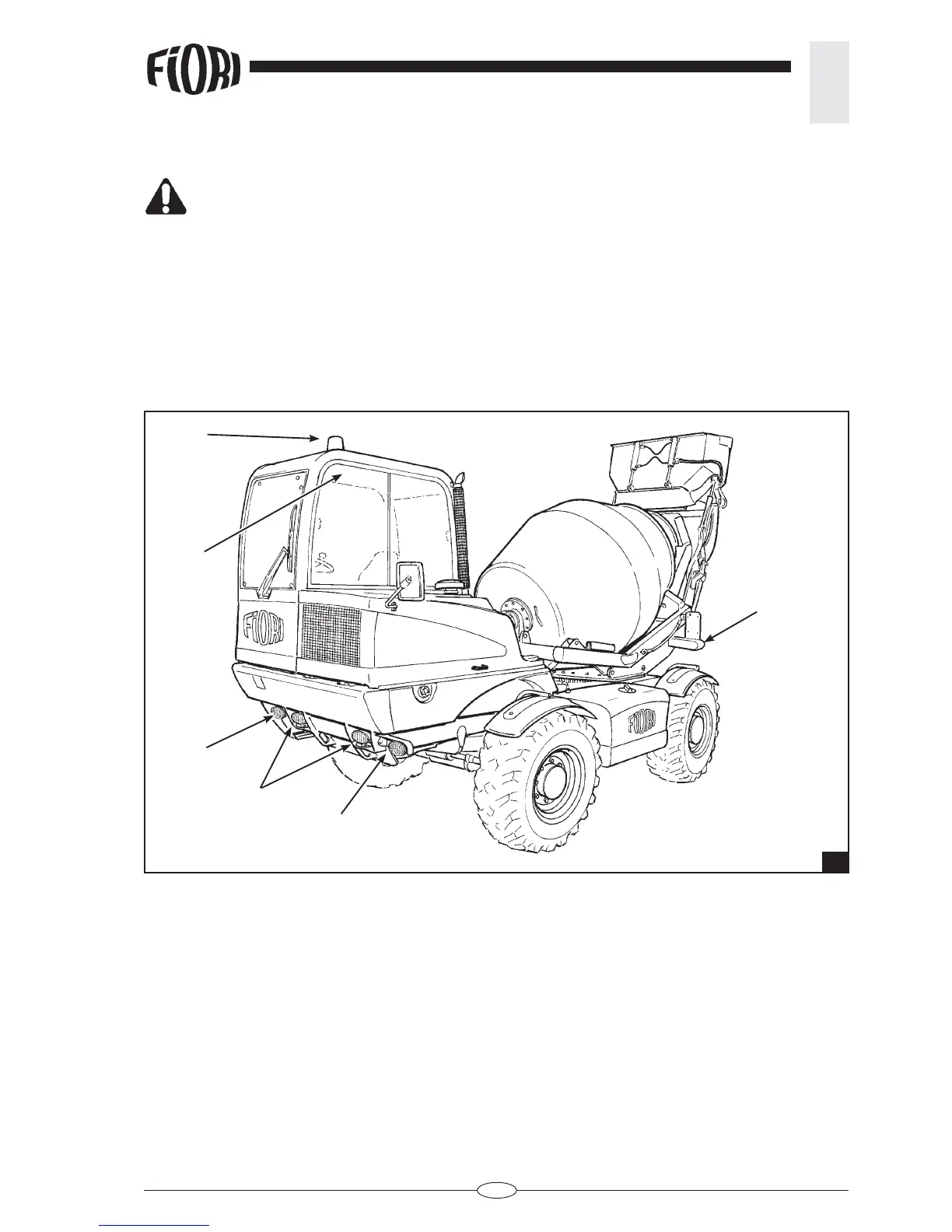

34
A
C - D - G
F
B
B
E
A - low beam bulb....................................................................................................................12V - 55W H7
B - direction indicator bulb ......................................................................................................12V - P21W
position light/side marker bulb ...........................................................................................12V - R5W
C - Stop light/position light bulb ..............................................................................................12V – P21/5W
direction indicator light bulb ................................................................................................12V - P21W
D - number plate light bulb
......................................................................................................12V - W5W
E - rotating beacon bulb .........................................................................................................12V - 55W H1
F - courtesy light bulb ..............................................................................................................12V - C5W
G - working light bulb ...............................................................................................................12V - 886 50W
