121
5
MAINTENANCE
id.:
DB 460 REV. 00 02/01/2015
5.7 GENERAL INSPECTIONS

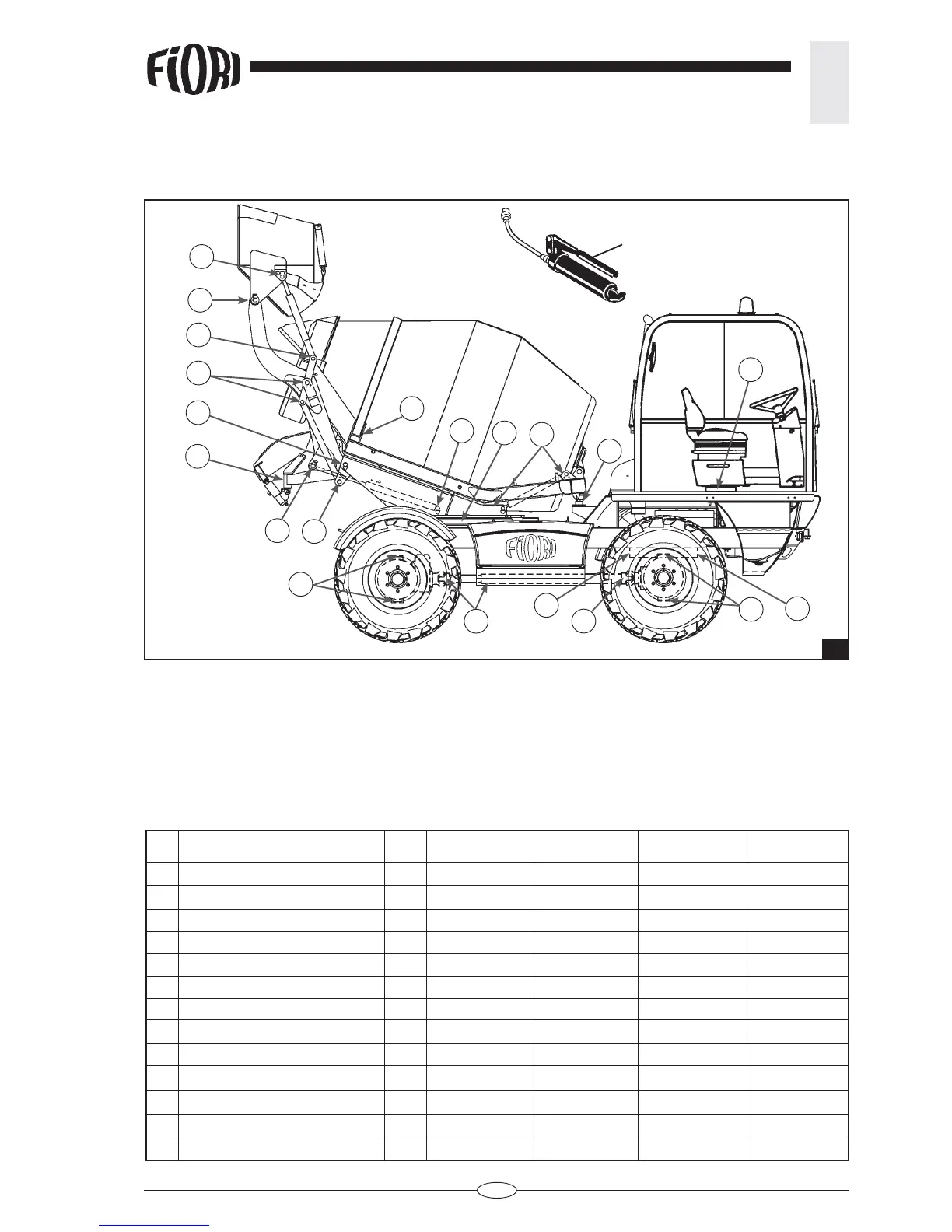

5.7.1 GREASE (fi g. 3)
CAUTION: For the greasing operations, park the vehicle on fl at ground and lower the arm. Remove the
ignition key and apply the parking brake.
CAUTION: Daily grease the drum rollers to keep them free of concrete residues. Do not use graphite
grease on the bearings.
The vehicle must be greased regularly in order to keep it in effi cient operating conditions. Grease using the
pump A provided, and stop greasing as soon as fresh grease starts fl owing out from the openings.
1 PIVOTING DRIVING POST 1 X
2 AXLE HUBS 4+4 X
3 TRANSMISSION SHAFT 3 X
4 OSCILLATING CHASSIS 2 X
5
MIXER ROTATION SAFETY STOP DEVICE
1 X
6 DRUM LIFTING CYLINDERS 2+2 X
7 ARM LIFTING CYLINDERS 2+2 X
8
LOADER CONNECTING ROD AND TIE-ROD
3+3 X
9 LOADER CYLINDERS 2+2 X
10 MIXER ROLLERS 1+1 X
11 UNLOADING CHUTE 1 X
12 LIFTING ARM 2+2 X
13 MIXER ROTATION FIFTHWHEEL 2 X
EVERY 8 HOURS
OR DAILY
WORKING AREA
POS. Q.
EVERY 40 HOURS OF
OPERATION OR WEEKLY
EVERY 160 HOURS OF
OPERATION OR MONTHLY
1
2
3
4
5
6
7
10
9
2
3
8
4
11
8
7
12
12
9
13
A
3
