INTRODUCTION
1
1.3 DIRECTION REFERENCES
FRONT
REAR
1.2 SYMBOLS USED IN THE MANUAL
To provide a clearer understanding of the information contained in this manual, major information or information
regarding danger is shown with the following symbols:
Indicates a situation of imminent risk that, if not avoided, may result
in serious injury or even death.
CAUTION: Indicates a potential risk which, if not avoided, may result in injury of low or medium se-
verity. It may also be used to prohibit operations involving risks and which may cause
damages.
The position of the pivoting driving post determines the driving direction.

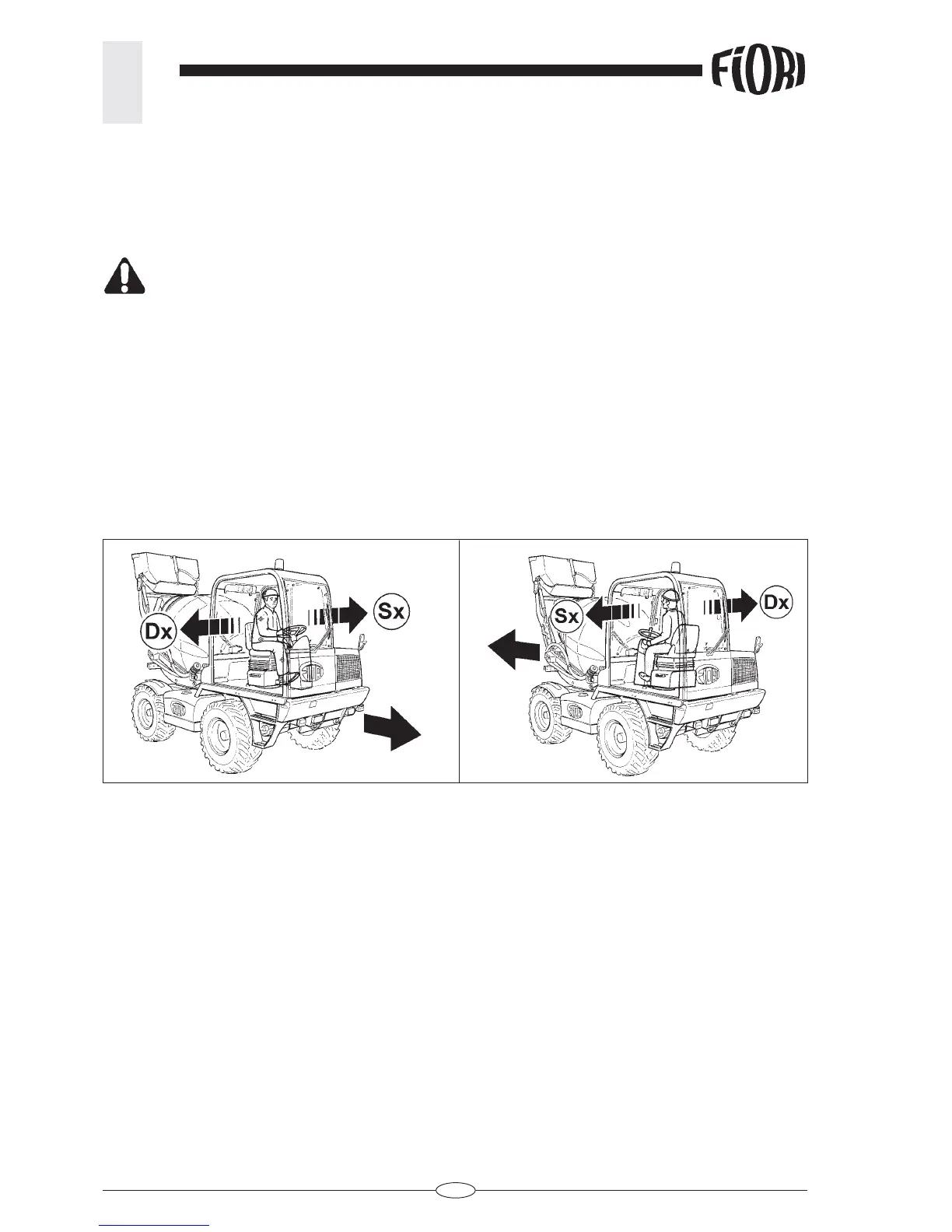

The right-hand side (RH) or left-hand side (LH) will be identifi ed based on the current driving position of the
operator, as shown in fi g. A - B.
1.4 VEHICLE CONTROL AND DRIVING PHASES
1.4.1 TRANSFER PHASE (PREFERENTIAL SPEED)
The driving post is turned toward the front of the machine.
Driving the machine on short or long stretches, with or without carrying material.
1.4.2 WORKING PHASE (SLOW SPEED DRIVING)
The driving post is turned toward the rear of the machine.
Driving the machine for bucket and materials loading.
Driving the machine at work sites, for approaching and manoeuvring steps to dump materials.
DANGER:
A
B
