OPERATION AND USE
id.:
DB 460 REV. 00 02/01/2015

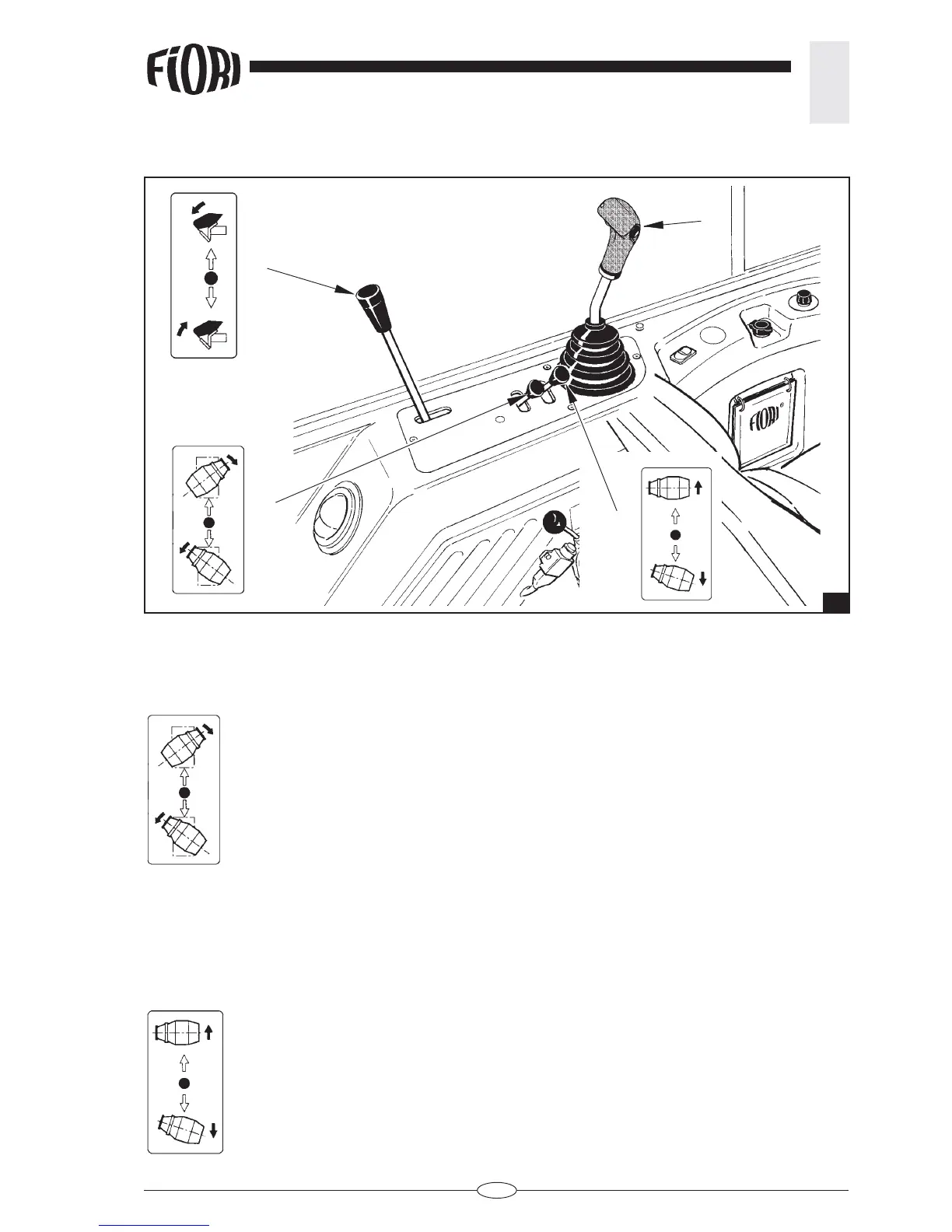

4.2.3 OPERATING CONTROL PANEL
The lever controls drum raising.
Follow the instructions below:
Position 1 - Drum raising.
Position N - Neutral.
Position 2 - Drum lowering.
The lever controls rotation of the fi fth wheel of the drum.
Before turning the drum, lift it from its seat by releasing the safety stop (see chapter 3.5 Fig. 3 O)
Position 1 - Clockwise drum traverse swinging.
Position N - Neutral.
Position 2 - Anticlockwise drum traverse swinging.
4.2.3 a - A - Drum traverse swinging lever (fi g. 9).
4.2.3 b - B - Drum raising lever (fi g. 9).
9
A
C
B
D
