104
4
OPERATION AND USE
id.:
DB 460 REV. 00 02/01/2015

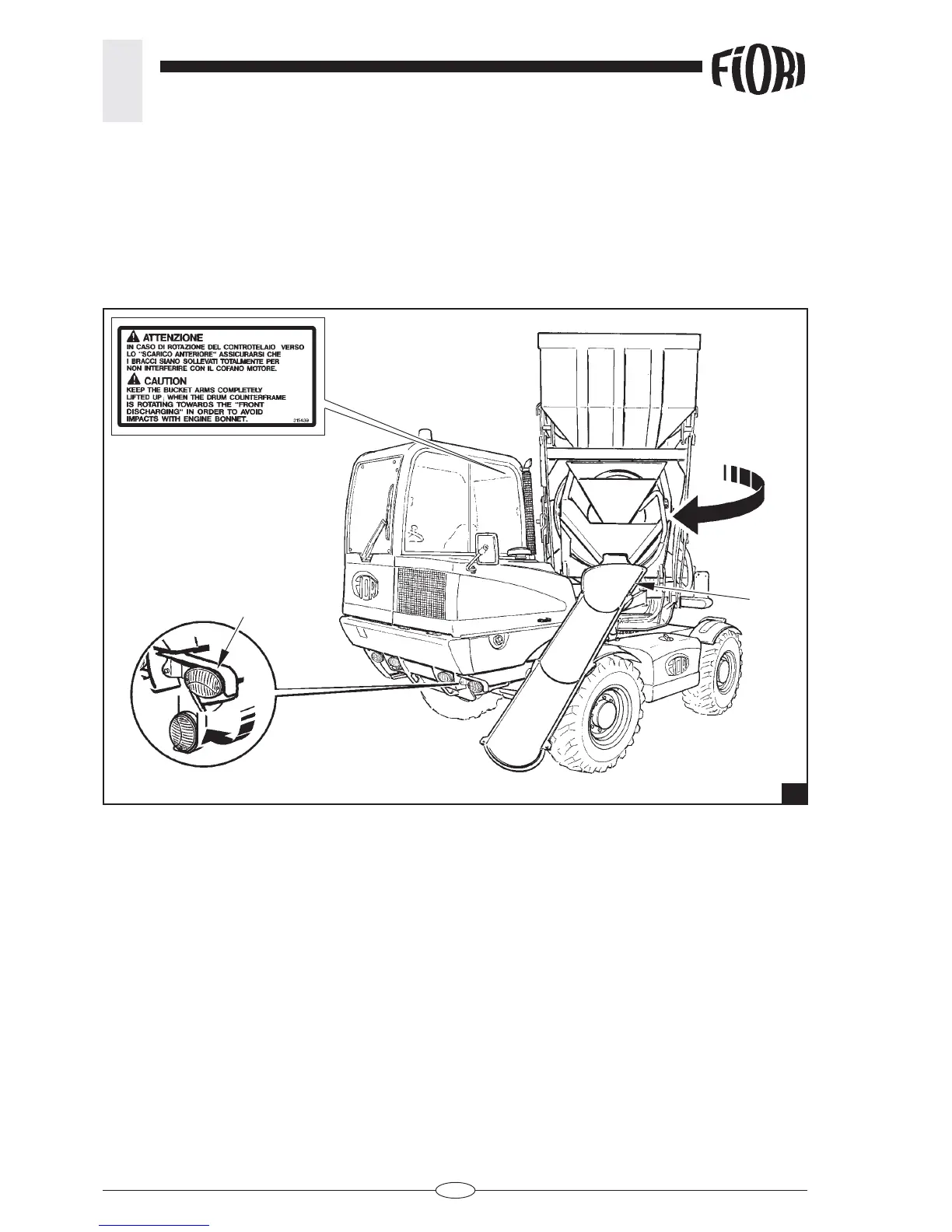

4.10.9.b Front unloading from chute (fi g. 40)
CAUTION: During front unloading, never lower the loader arm.
The new version of the FIORI concrete mixer allows front unloading from the left-hand side, directly visible by
the operator in the cabin.
To make use of this new feature, some preliminary operations must be carried out to prevent damage to the
engine casing and the skid unit. Proceed as follows:
- Check that the engine casing is closed and at a standstill.
- Lower the front left light unit A
CAUTION: Move the chute back into place after unloading, as this is essential for road transfer.
- Turn and lock the chute B with the mouth facing the outside of the vehicle, and secure it with a setscrew.
- Raise the loader arm to its maximum height, then turn the counterframe to the desired position making sure
that the arms are completely raised so as not to interfere with the engine compartment lid.
- Then continue with the normal unloading operations.
- To move on to the next area after completing unloading in the fi rst area, follow the instructions below:
- Lower the drum if it is still relatively full and reposition it on the longitudinal axis.
- Revert the drum rotation direction to mixing (clockwise).
- Approach and position in the new unloading area and follow all the instructions given above.
40
B
A
