Fiori DB 460 - Water Feeding and Distribution Controls

75
4
OPERATION AND USE
id.:
DB 460 REV. 00 02/01/2015

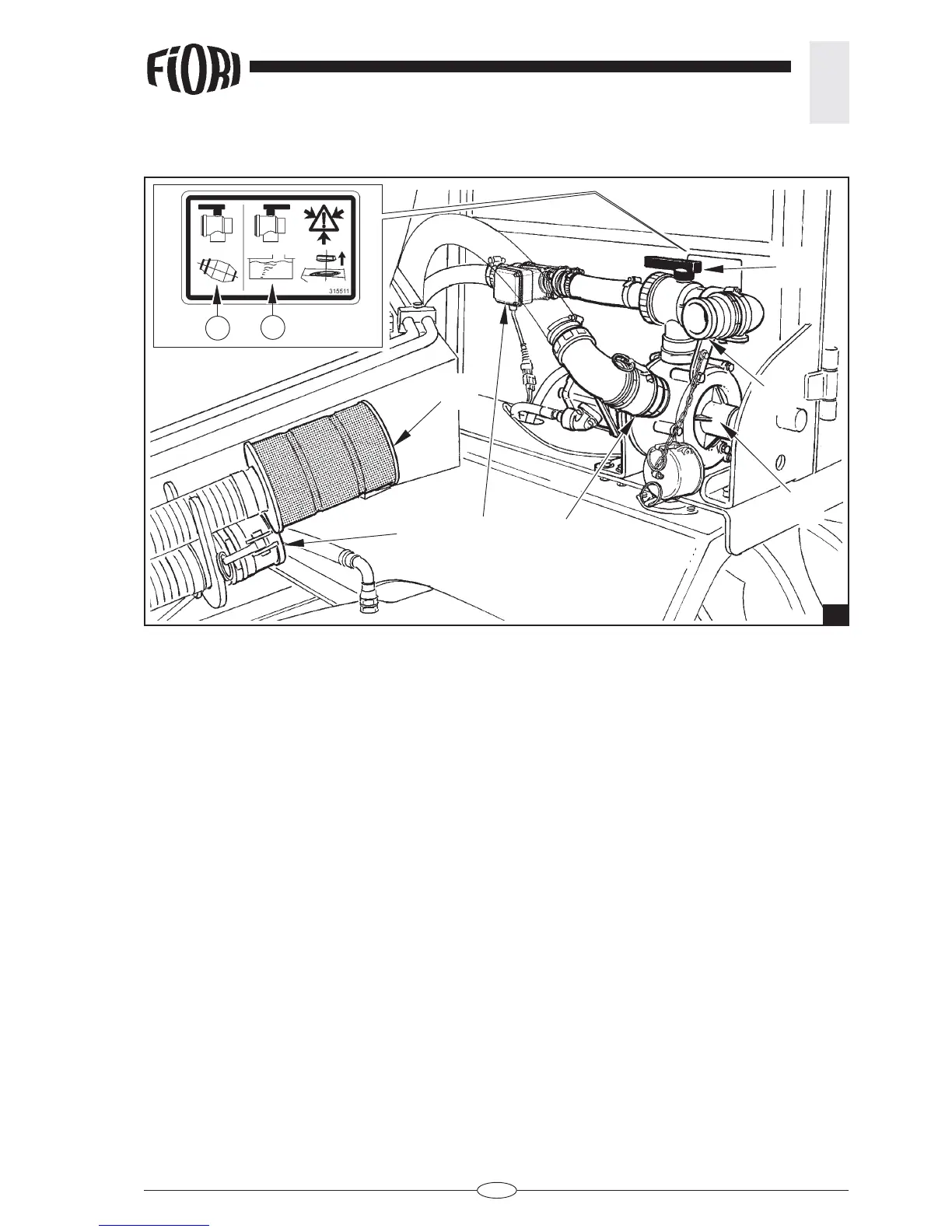

4.2.4 WATER FEEDING AND DISTRIBUTION CONTROLS (fi g. 11).
The following parts control feed and distribution of the mixing and washing water:
A – Suction coupling
- Water suction from external water sources (tanks, ditches, etc.) by means of a fl exible suction hose E.
- Water suction from the vehicle tank.
B – Delivery switching valve
Position 1 - Water delivery to the drum from an external source or from the vehicle tank.
Position 2 - Water delivery to the tank from an external source.
C – Litre counter
Totals the amount of water pumped into the drum and shows it on the driving post and the Mix Control
display.
D – Water suction pump
Self-priming volumetric pump with bronze impeller.
E – Flexible suction hose with suction fi lter F
To be positioned in the water source involved:
reservoir, ditch, external tank, etc.
G – Washing nozzle
Used to wash the bucket, drum and chute and is positioned at the rear of the vehicle.
To be connected to the union H of the switching valve B turning the lever to position 2.
11
B
A
E
C
1
2
F
H
D
