OPERATION AND USE
id.:
DB 460 REV. 00 02/01/2015
CAUTION: Before lifting the vehicle, check that it does not carry any load and that the crane used is of
adequate capacity to support the weight of the vehicle; see the section “Specifi cations”
for the weights and dimensions.
CAUTION: For lifting with a crane it is advisable to use adequate rocker arms in order not to damage
parts of the vehicle when the chains tauten.
Use only the lifting points marked on the vehicle.
- Turn the drum as you would for road transfer.
- Raise the loader arm and lock it with a tie-rod (1).
- Hook the chains onto the special hooks.
During lifting, stand well away from the vehicle and do not stand under the load.
Sudden movements or the chains snapping may cause injury and even death.

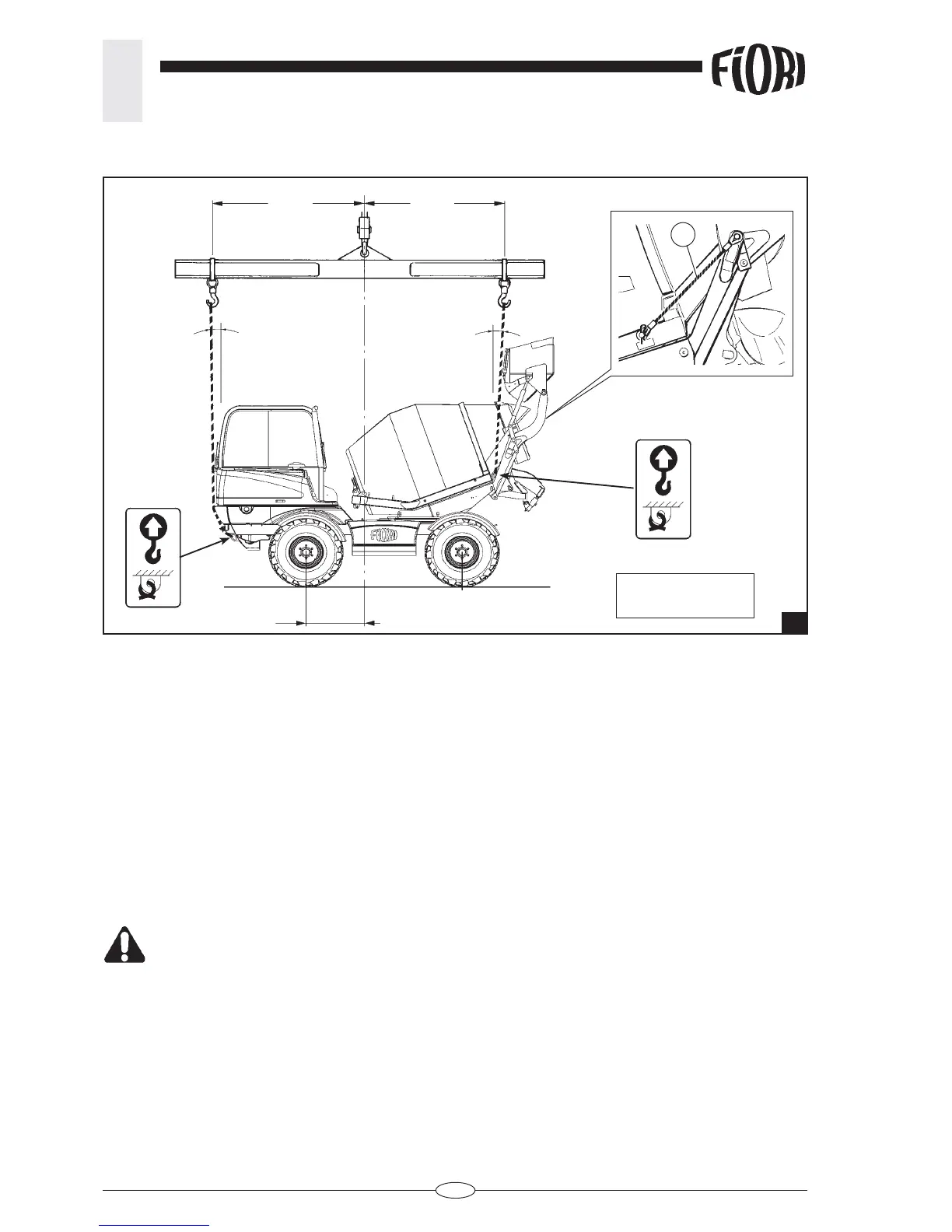

4.4.1 LIFTING THE VEHICLE WITH A CRANE (fi g. 23)
CAUTION: Before proceeding, always read the safety regulations for the operations to be carried out
as set out in Chapter 3.
DANGER:
23
DRY WEIGHT
7.300 KG
1700
1
3100 1650
10° 10°
