OPERATION AND USE
id.:
DB 460 REV. 00 02/01/2015
Act on the snap switch to turn on the rear wiper.
Act on the lever to turn on the cabin light.
The water tank is positioned on the inside of the control panel; to access the tank for fi lling open the rear
cover by undoing the retaining screws.
The fuses and relays are positioned inside the driving post. Using the key provided, open the door to
access the fuses and the relays.

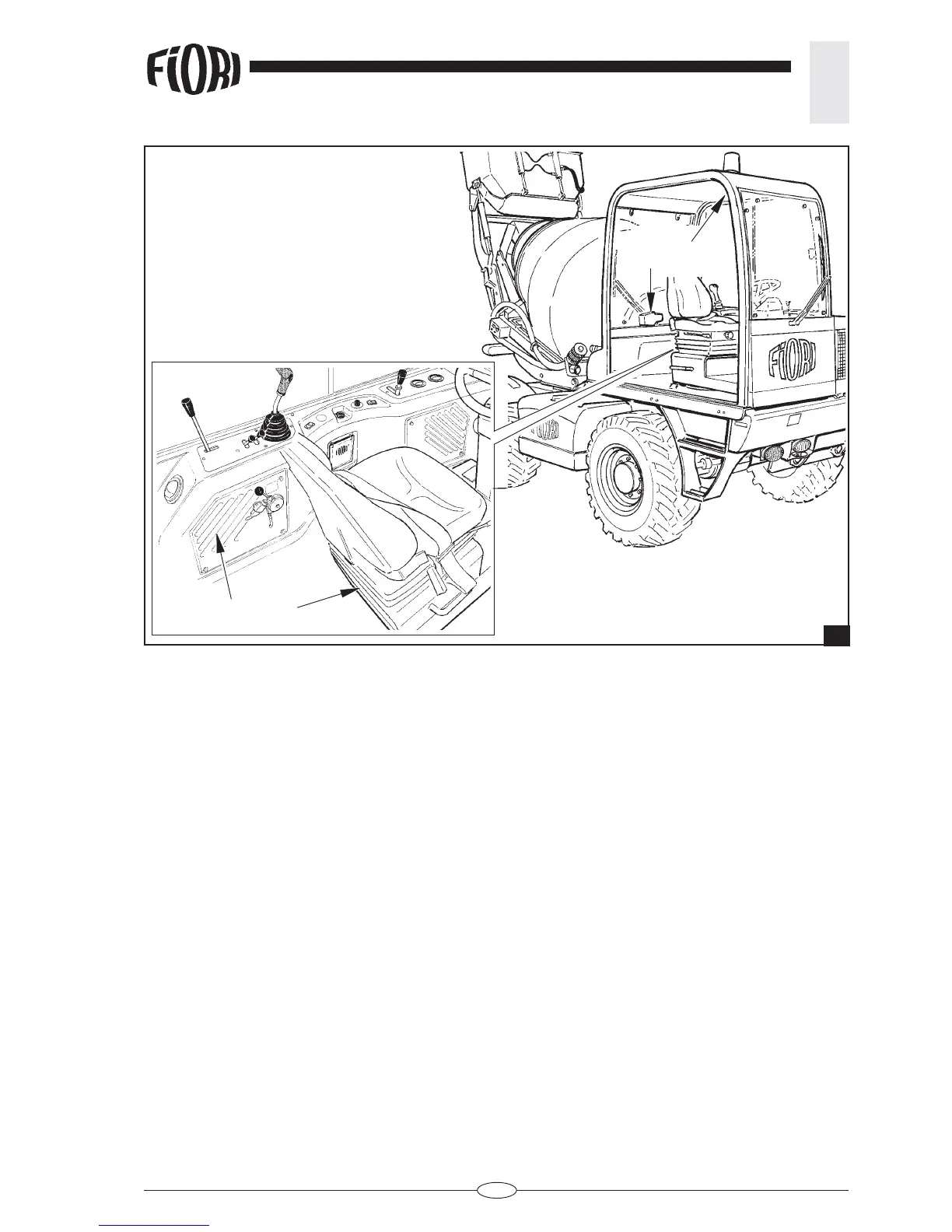

4.2.1.r - R - Rear windscreen wiper (fi g. 3).
4.2.1.s - S - Cabin light (fi g. 3).
4.2.1.t - T - Windscreen washer fl uid tank (fi g. 3).
4.2.1.u - U - Fuses and Relays (fi g. 3).
3
R S
T U
