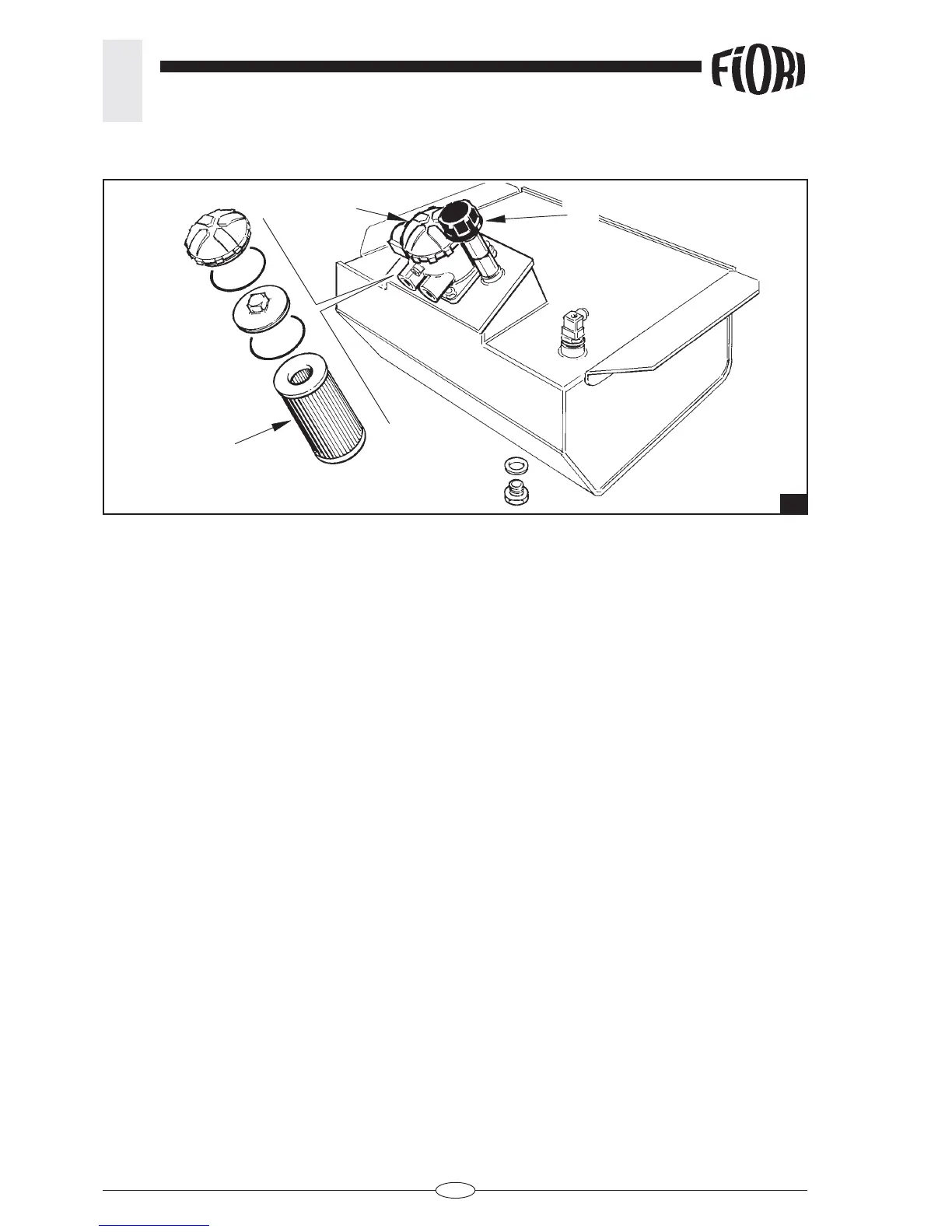

5.10.3 CHANGE THE HYDRAULIC OIL FILTER CARTRIDGE (fi g. 19)
19
A
C
D
CAUTION: Before proceeding, always read the safety regulations for the operations to be carried out
as set out in Chapter 3.
CAUTION: Slowly loosen the bleeder cap to release the residual pressure. Carry out this operation
only with the engine off.
CAUTION: Do not pollute the environment. Keep the fi lters in special containers and send them to
companies specialised in storage and disposal of polluting and hazardous waste.
CAUTION: If the fi lter clogged warning light is permanently illuminated even when the oil is hot (35°C),
the suction fi lter needs to be replaced.
- Raise the engine compartment lid.
- Remove the level gauge and fi ller cap. A and the fi lter cover C.
- Remove the cartridge D.
- Manually refi t the new cartridge D taking care to correctly position the seals.
- Clean and refi t the fi lter cover C, taking care to correctly position the seal.
- Check the level in the tank with the dipstick A and if topping up is required, fi ll with the specifi ed oil until
reaching the indicated level, then screw the fi ller cap A back on.
- It is essential to keep a stock of spare cartridges D, which can be ordered from the AUTHORISED FIORI
SERVICE CENTRES or directly from FIORI SPARE PARTS DEPARTMENT.
- Move the vehicle onto fl at ground, engage the parking brake, turn off the engine and remove the ignition
key.
