4.3.12 FIELD OF INDIRECT VISIBILITY OF THE REAR OF THE VEHICLE

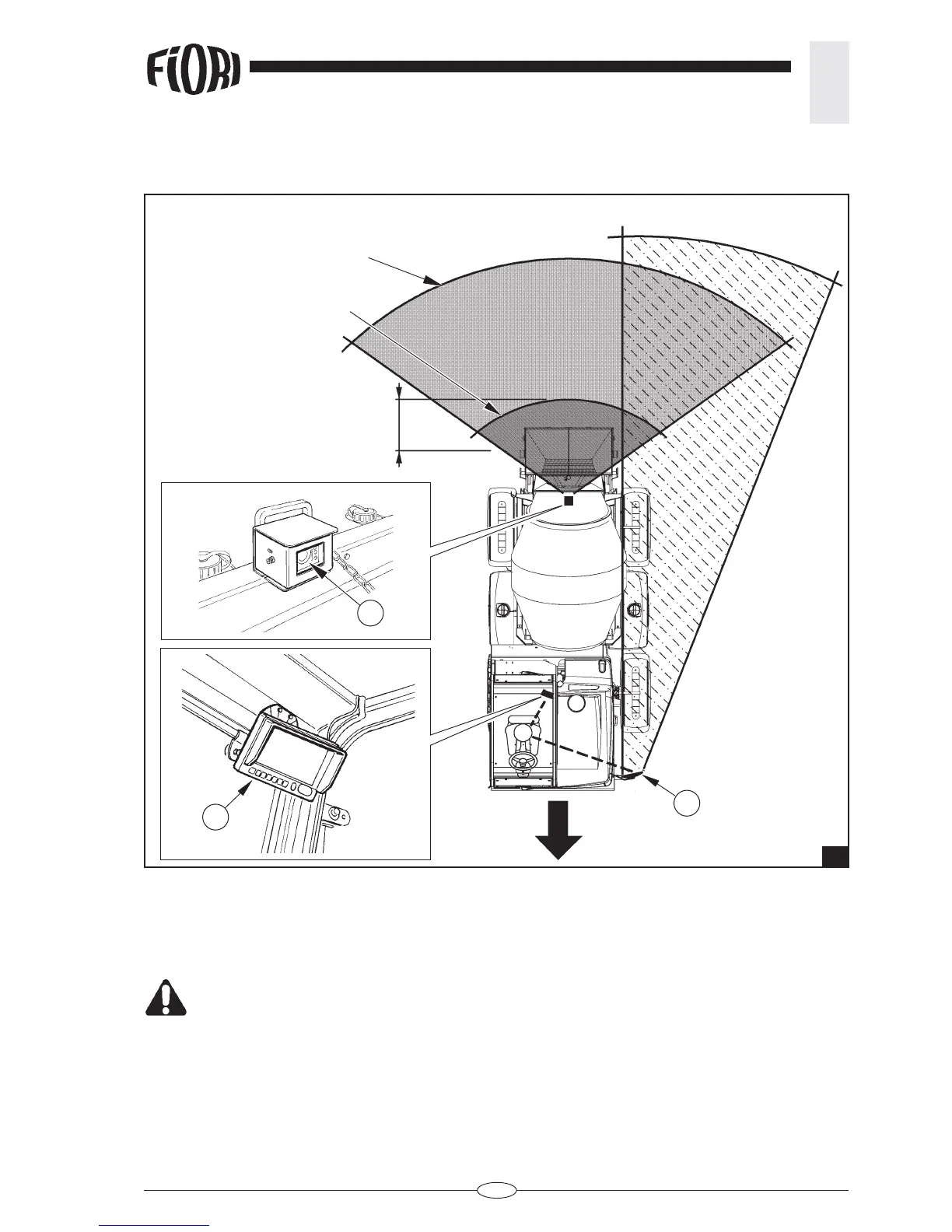

(Standard only for specifi c countries) (fi g. 21)
21
2
3
CAMERA:
FAR FILED OF VIEW
CAMERA:
NEAR FIELD OF VIEW
1mt.
1
Looking at the images on the display (2) transmitted by the camera (1) and using the rearview mirror (3), you
have a wide view of the area behind the vehicle. This allows you to safely reverse from and approach the
unloading area.
CAUTION: For the display (2) operation, refer to its user manual that comes with the vehicle.
Check that the display (2) is properly set for direct visibility (NO MIRROR).
DANGER:
