OPERATION AND USE
id.:
DB 460 REV. 00 02/01/2015
This lever allows tilting the unloading chute using a jack. This operation can be carried out from the
driver’s seat.
Shifting the lever to the right, the chute is tilted downward and to the left upward.
4.2.1.c - C - Unloading chute control lever (fi g. 9).
4.2.3 d - D - Joystick for arm raising and bucket/loader rotation (fi g. 9 - 10).

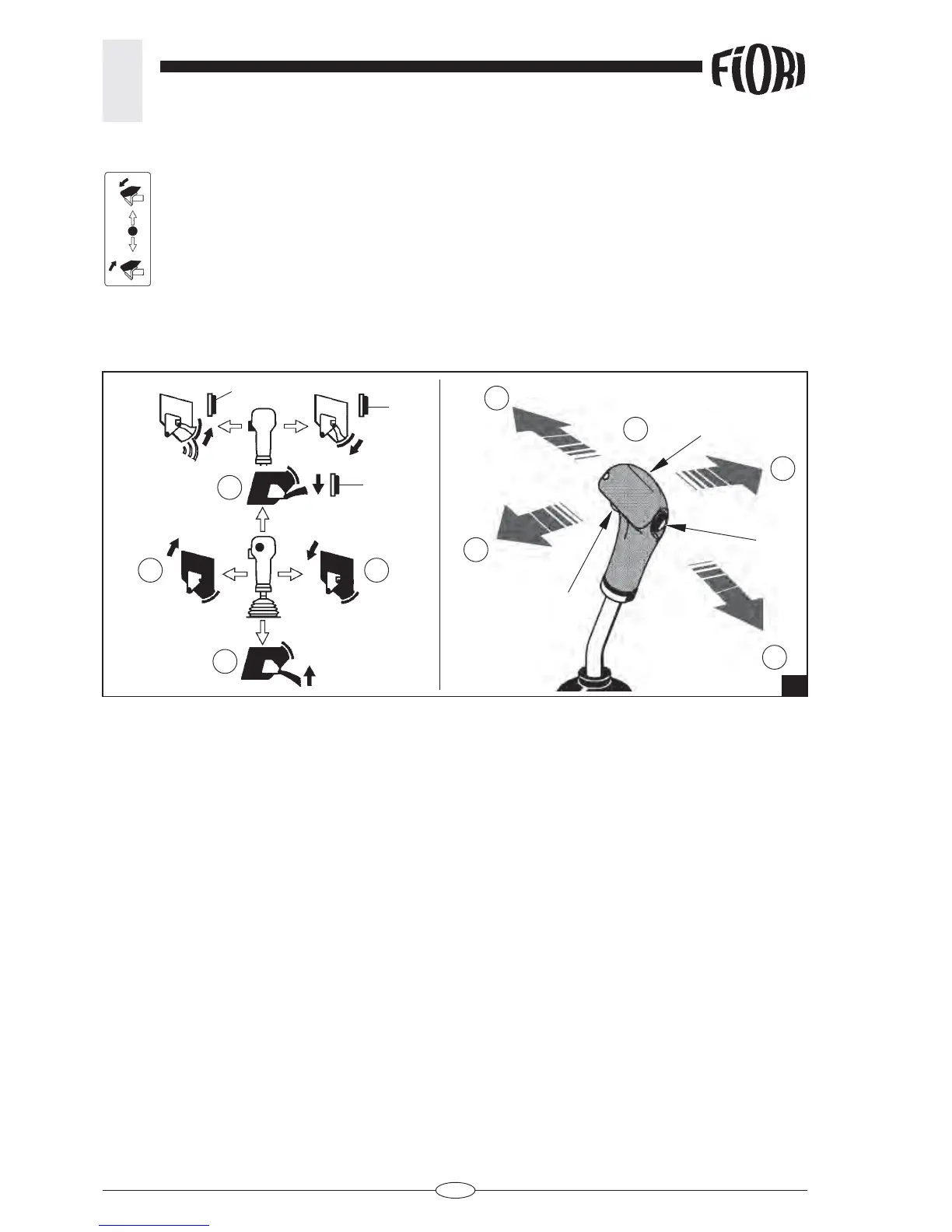

The joystick controls arm raising and loader rotation.
Arms / hydraulic hatch:
Position “1” - Arm lowering: only with button E pressed to prevent accidental manoeuvres.
Position “2” - Arm raising: without pressing button E.
Bucket / loader
Position “3” - Downward loader rotation. Press button F to close the hydraulic loader hatch.
Position “4” - Upward loader rotation. Press button F to open the hydraulic loader hatch.
Position “N” - Neutral.
