OPTIONAL EQUIPMENT
id.:
DB 460 REV. 00 02/01/2015
6.1
DRUM CLOSING HATCH
DRUM CLOSING HATCH

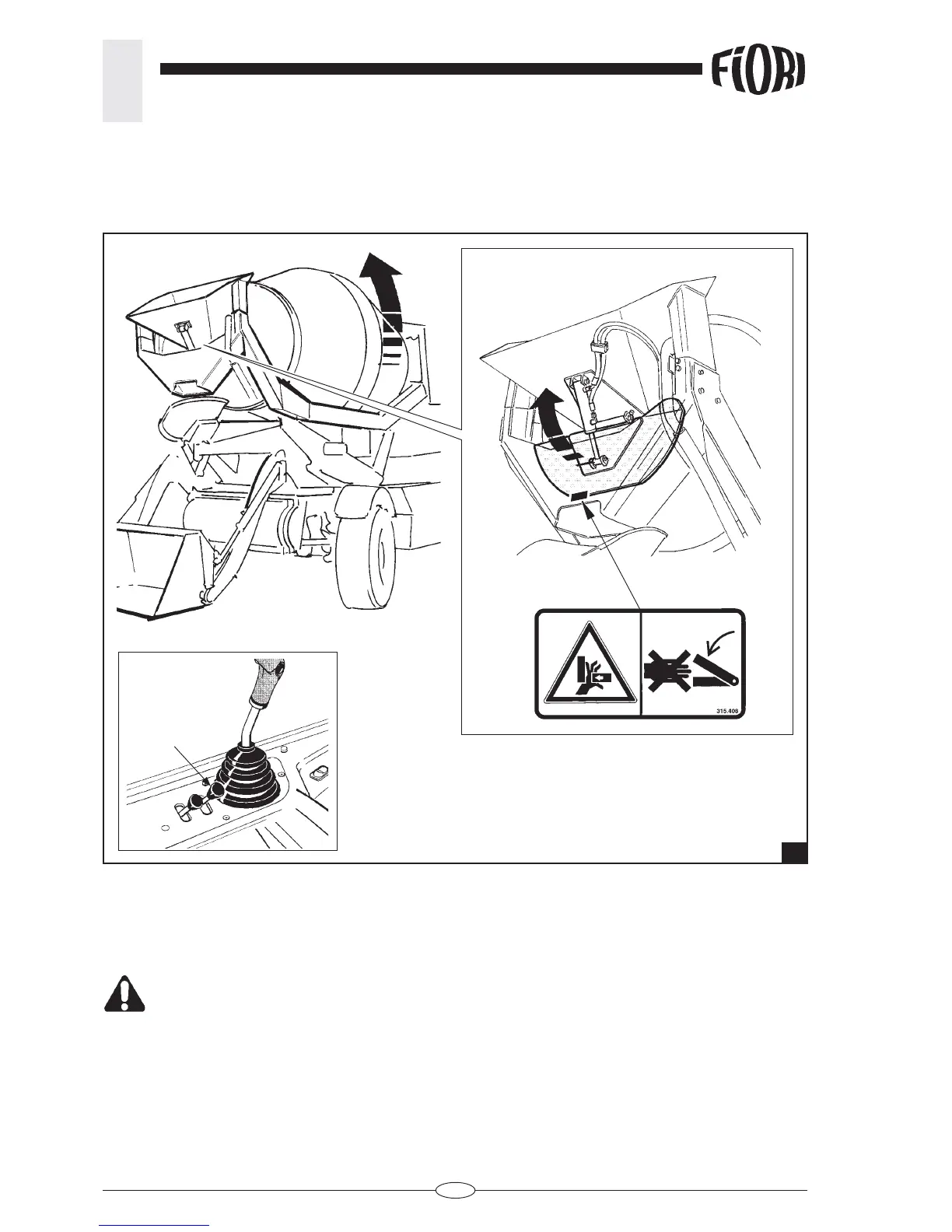

The hatch closes the drum opening, thus avoiding concrete spillage, specially when the machine is driven on
uphill stretches.
The hatch opens automatically when the counterframe is lifted using the lever B in the cabin (as described in
chapter 4.2.3.b).
The hatch is closed automatically when the counterframe is lowered by means of lever B.
Do not climb on the machine, do not place your limbs or parts of your body in the
drum opening: risk of crushing if the hatch is closed inadvertently!
Do not use the arms as lifting device.
6.1.1. OPERATION
DANGER:
1
B
