Inverter Panda PMGi 5000
Seite 162 - Kapitel 15: Inverter Panda PMGi 5000 PGMi 5000_eng.fm
Fischer Panda Datenblatt / Datasheet

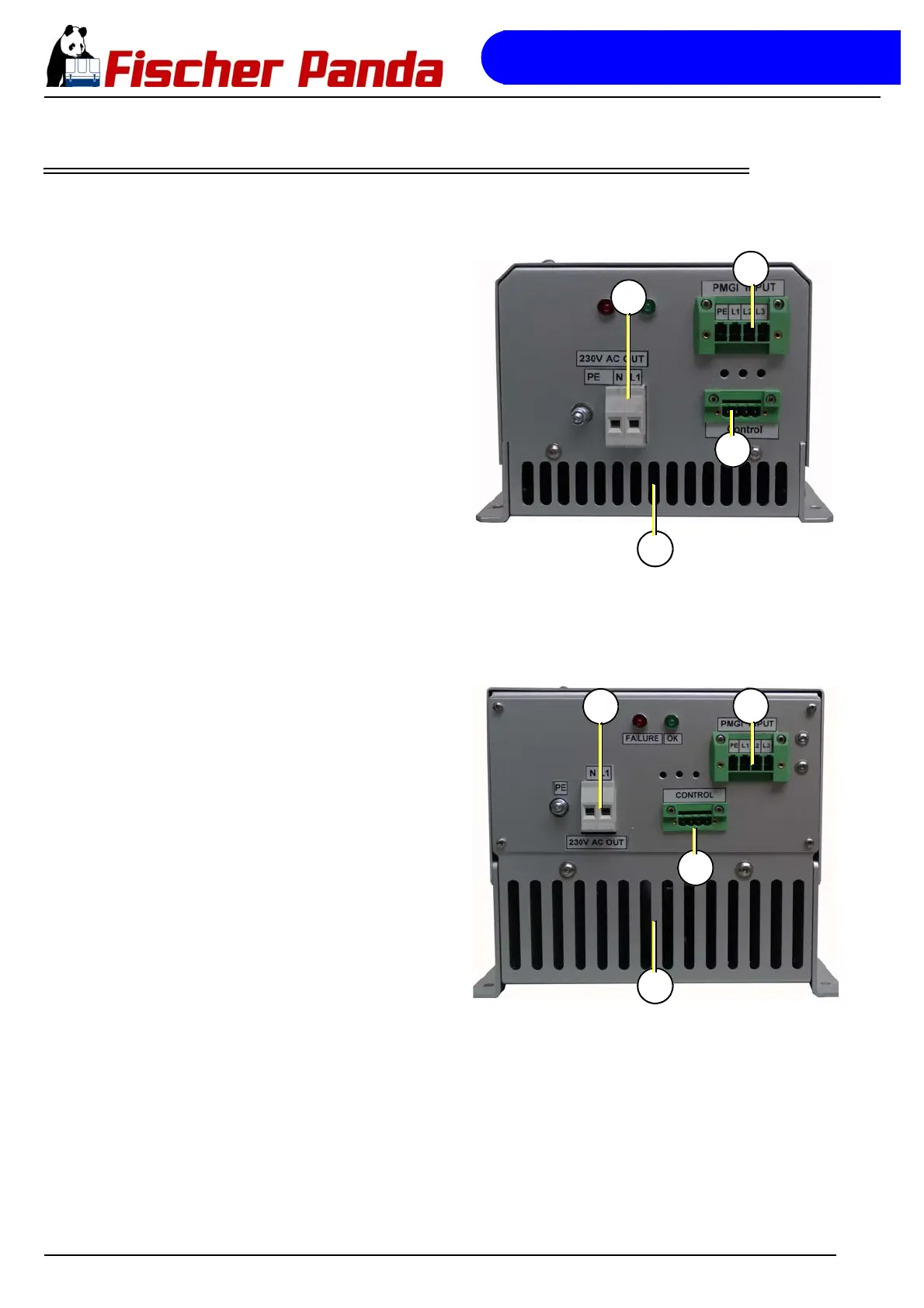

15.3 Front side/connection side
Fig. 15.3-1: Connection side 230V Version
Fig. 15.3-2:
Fig. 15.3-3: Connection side 120V VersionTo connect the PMGi 5000 use the prepared cable with t he 4pin plug and
connect to socket 3 (PMGi in-450V/400Hz)
Connect your termination box with the socket 1. Use a 3pin plug (230V/50Hz
AC - PMGi out)
Do not cover the Air out grille (2)
1. Socket for Load
2. Air out grille
3. Socket for generator connection
4. FP- Bus socket connection to generator
3
1
2
4
3
1
2
4
