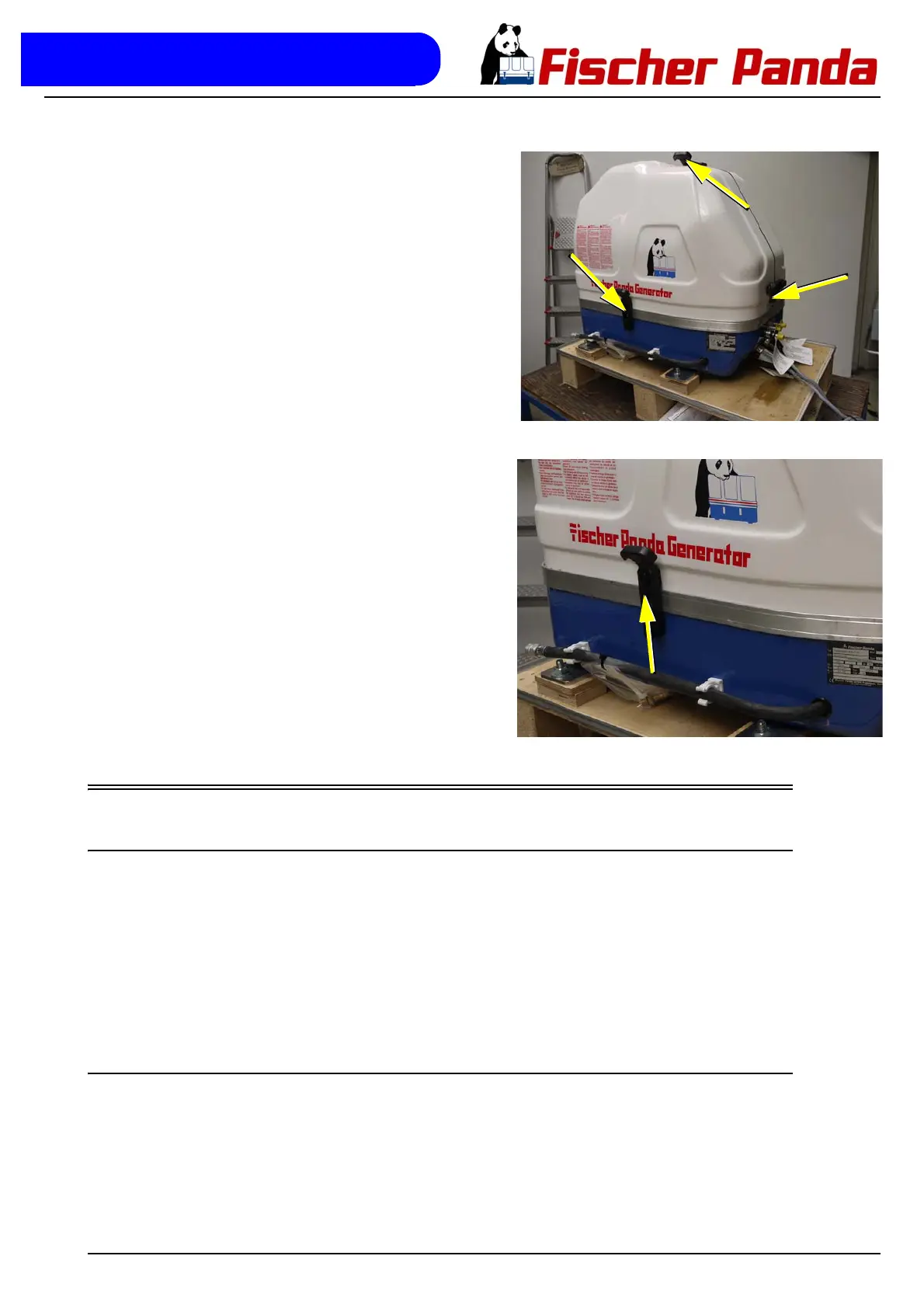

Fig. 3.6-1: Lash closuresGFK sound insulation capsule with lash closures
Fig. 3.6-2: Lash closuresTo open the lash closures pull the handle in arrow direc-
tion and lift the lash of the closure pin. After lifting off the
lashes, the sound isolation cover upper part can be
removed.
3.7 Transport and Loading/Unloading
3.7.1 Transporting the generator
• The generator must always be upright for transport.
• For transport, the Fischer Panda transport box shall be used for the generator. The generator shall be securely at-
tached to the bottom of the box.
• For loading/unloading, an adequate industrial truck shall be used.
• Depending on the transport distance (e.g. air cargo), the generator fluids (coolant, engine oil, fuel) may have to be
drained. The corresponding instructions and warnings must be fitted to the transport packaging.
3.7.2 Loading/unloading of the generator
For loading/unloading the generator, appropriate ring eye bolts shall be installed in the holes in the support rails. The
load bearing capacity of each ring eye bolt must at least equal the generator weight.
