4.2.4 Side view right

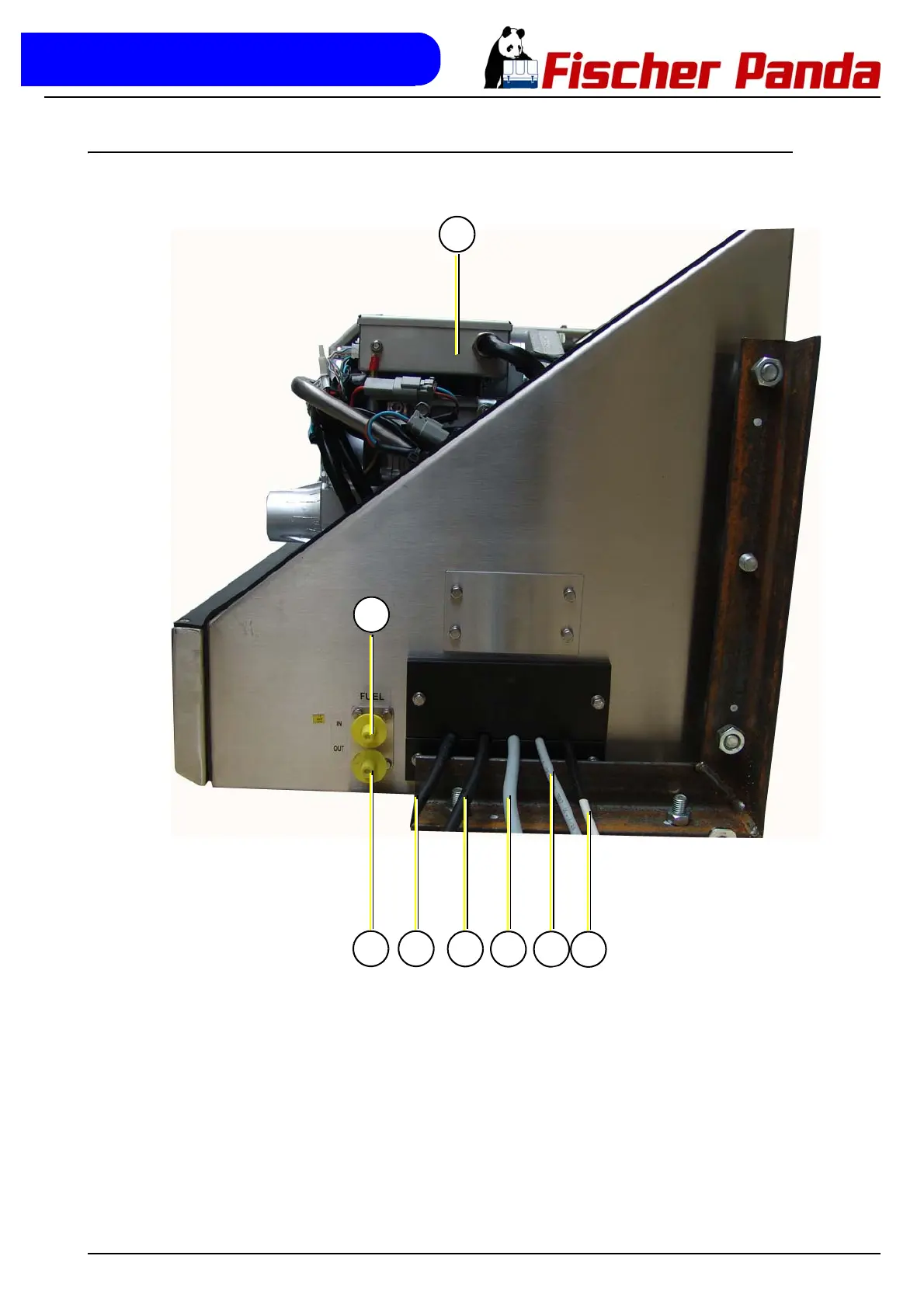

Fig. 4.2.4-1: Side view rightt
03 04
01
02
05
06
07
08
01. iControl elektronic board „DO NOT OPEN - Danger to life“
02. Fuel in connection
03. Fuel out (backflow) connection
04. Battery cable negative (-)
05. Battery cable positive (+)
06. Cable to PMGi 4000
07. Cable to Fuel pump
08. Cable to Panel iControl
