Fischer Panda 5000i PVK-U - Details of Function Units

The Panda Generator
Seite/Page 42 - Kaptitel/Chapter 4: The Panda Generator 30.10.12
4.3 Details of function units
4.3.1 Remote control panel see iControl datasheet
4.3.2 Components of the cooling system

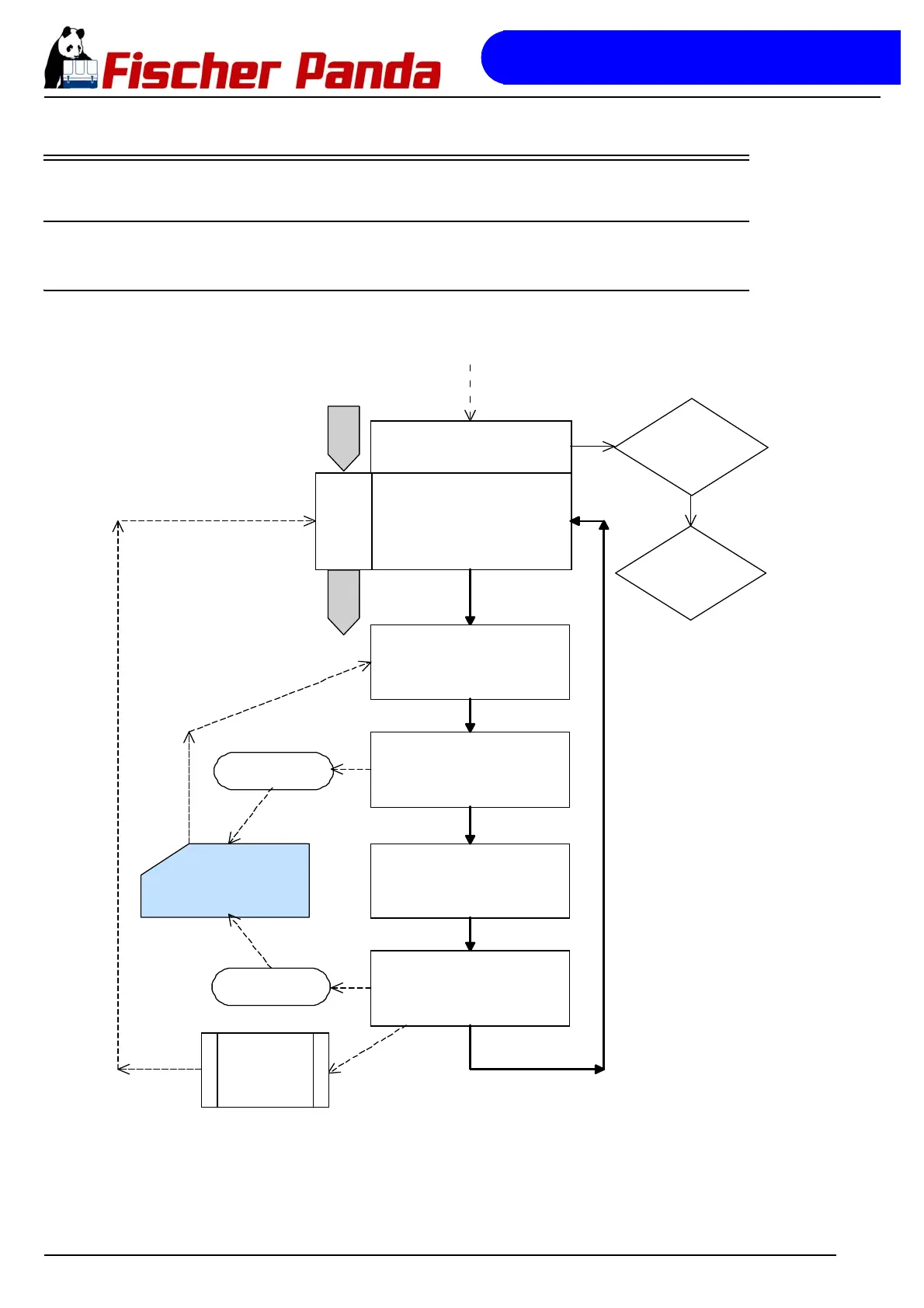

Fig. 4.3.2-1: Cooling circiut
Expansion tank with filler cap
integrated in the Radiator
Radiator
elect. water pump
Engine Kubota EA 300
water cooled
exhaust elbow
water cooled
pre-silencer
overflow hose
at filler cap
Overpressure valve
in the filler cap
´thermo sensor
at engine
Thermo sensor
at pre-silencer
iControl elektronic board
Thermo switch
at pre silencer
"82°C fan fast"
"75°C fan slow"
fan
cold
air
hot
air
cold
side
hot
side
coolant
